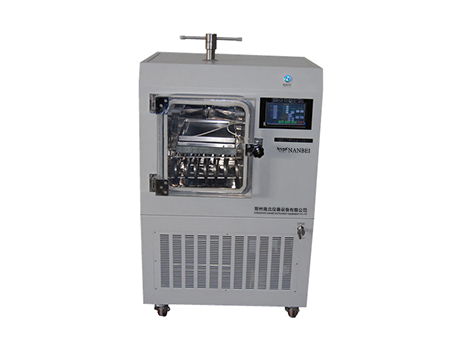

NB-10ND,NB-30ND,NB-50ND Lyophilization Process Laboratory LCD Display Freeze Dryer

Brand:NANBEI

Model:NB-10ND,NB-30ND,NB-50ND

Application:

CONTACT NOW Chat Now

product details

Laboratory LCD Display Freeze Dryer

Features:

1.Prefreeze drying process at in situ situation, high transparent organic glass door to observe working procedure

2.Shelf temperature adjustable, controllable, detectable; its suitable for pilot scale and small production

3. LCD screen display, PID control, drying curve displayed on the screen

4.Square tray is shape not easily to deformed, easy to operate and clean

5.With Gas charging valve can fill with inert gases like nitrogen gas

Main Technical Parameters:

rying chamber	Model	Unit	NB-10ND (In-situ)	NB-30ND (In-situ)		NB-50ND (In-situ)
	Specification		Ordinary	Ordinary	Top-Press	Ordinary	Top-Press
	Drying Area	m2	0.2	0.3	0.3	0.6
	No.of Tray	layer	2	3	3	4
	Temp. Range	°C	-45~60	-45~60		-45~60
	Shelf Gap	mm	70	70		70
	Shelf Size	mm	24043020	24043020		35043020
Capture water trap	φ22 Penicillin Vial	PC	410	615	615	1020
	φ16 Penicillin Vial	PC	770	1160	1160	1940
	φ12 Penicillin Vial	PC	1300	1950	1950	3690
	Temperature	°C	≤-55(No-load)	≤-55(No-load)		≤-55(No-load)
	Ability to Capture Water	Kg/24h	3	1.5	6	10
Parameters	Power	KW	1.0 kw	2.0 kw		3.0 kw
	Power Supply	V/Hz	110-115V or 220-240V 50/60Hz	110-115V or 220-240V 50/60Hz		380V/50Hz
	Plate Load Capacity	L	2	1	3	6
	Electric Defrost	-	/	/		Y
	Vacuum	Pa	≤10	≤10		≤10
	Cooling Mode	-	Air cooling: well ventilated room temperature ≤25°C	Air cooling: well ventilated room temperature ≤25°C		Air cooling: well ventilated room temperature ≤25°C
	Dimension	mm	7506401200	11007601410		11007601410
Drying chamber shape			cylindrical	cylindrical		cylindrical
