20L Rotary Evaporator

Purposes and features:

NR-series large rotary evaporator is mainly used in the small-scale test, pilot-scale test and production in biological, pharmaceutical, chemical, food and other fields. As with large capacity and large-diameter rotary evaporating flask, when it is placed in a water bath, along with the simultaneous performing of rotating and heating, it allows the solution spreading and evaporating rapidly. What’s more, the product may be fitted with the multi-purpose water circulating vacuum pump, diaphragm vacuum pump, low-temperature circulating (vacuum) pump, circulating cooler, constant-temperature circulator, low-temperature cooling liquid circulating pump and so on to form a system device.

1.Teflon(PTFE) and fluororubber dual spin seal, patented technology to ensure the high vacuum.

2.Accurate and reliable temperature control system,.

3.On the premise of not affecting the vacuum and solution distillation, continuous receiving allowable.

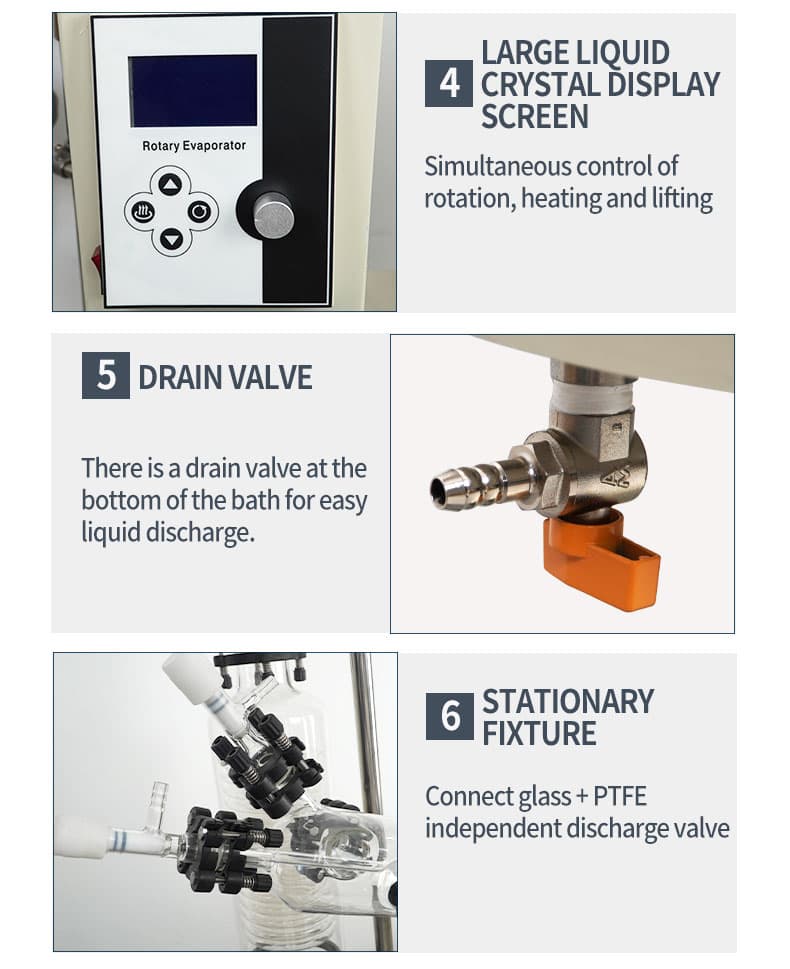

4.PTFE emptying valve, corrosion-resistant without any pollution.

5.Including two types: regular type and explosion-proof type, which can be adopted based on the experimental environment.


Technical data:

Model

R1005

R1010

R1020

R1050

Optimum ambient temperature (℃)

5~25

Power   (V/Hz)

Single-phase  110/60

Single-phase   220V/60HZ

Speed   regulation of main engine

Digital   variable-frequency stepless speed regulation

Digital direct current stepless speed   regulation

Rotate speed of main engine(rpm)

10-140

20-130

20-110

Rotary motor

40

60

120

Temperature   control (℃)

Digital   temperature control, constant temperature -99℃

Maximum   vacuum degree(Pa)

399.9Pa(under   3mmHg)

Rotary   flask(L)

5

Flange   mouth Ø50

10

Flange mouth   Ø95

20

Flange mouth   Ø125

50

Flange mouth   Ø125

Receiving   flask(L)

3

5

10

20

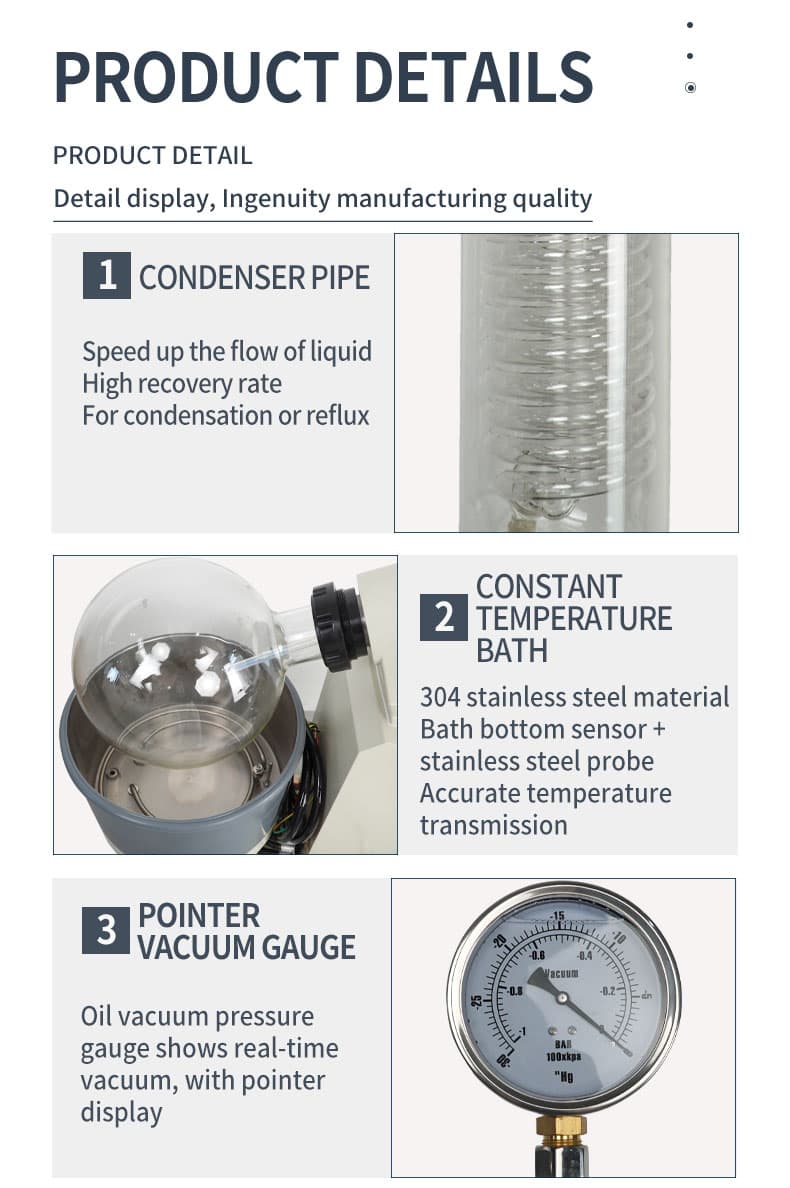

Condenser   pipe

Vertical   dual coil pipe

Upright,   main condenser + auxiliary condenser, efficient tri-backflow condenser pipe

Evaporative   capacity (L/h)

Water   ≥2

Alcohol   ≥4

Water   ≥3.2

Alcohol   ≥6.5

Water   ≥5

Alcohol   ≥11

Water   ≥9

Alcohol   ≥19

Water   bath pot material

Stainless   steel

Water   bath pot size (mm)

Φ280×170

Φ350×220

Φ450×250

Φ550×320

Lifting   function

Electric   lifting

Electric   + manual lifting

Lifting   stroke(mm)

0-150

0-160

0-190

0-180

Complete   machine power(kW)

2.2

4.8

6.3

8.3

Dimension  (mm)

765×400×1070

920×550×1700

1250×600×2100

1320×770×2340
