-86℃ Ultra Low Temperature Freezer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:NBD-86L838
Application:Applicable for products and samples which require strict storage, biological products, electronics and special materials. Products are widely used in hospitals, disease control, CDC, scientific research institutions biomedical engineering institutes,

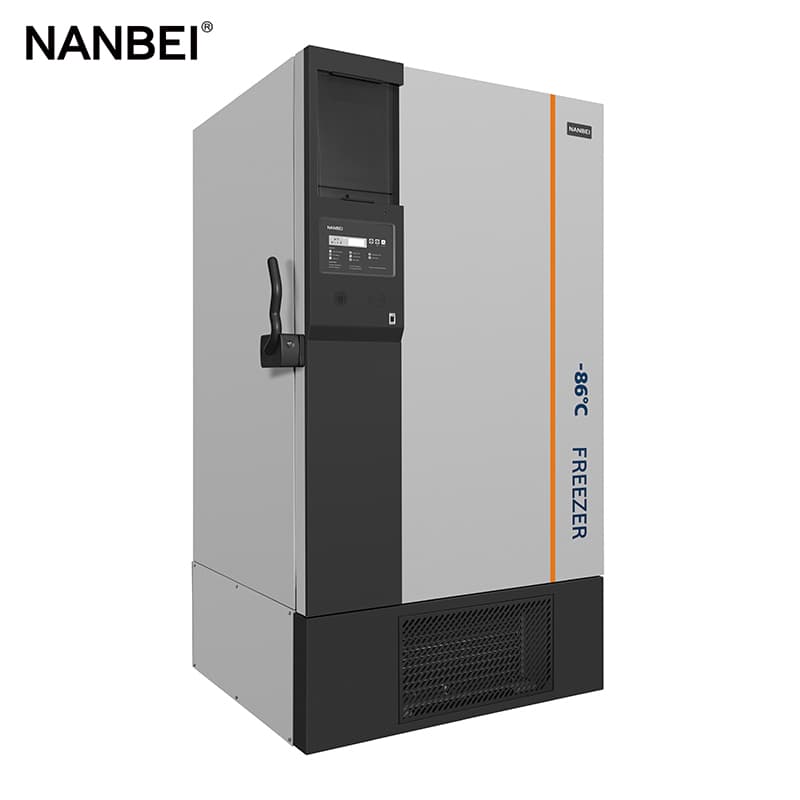

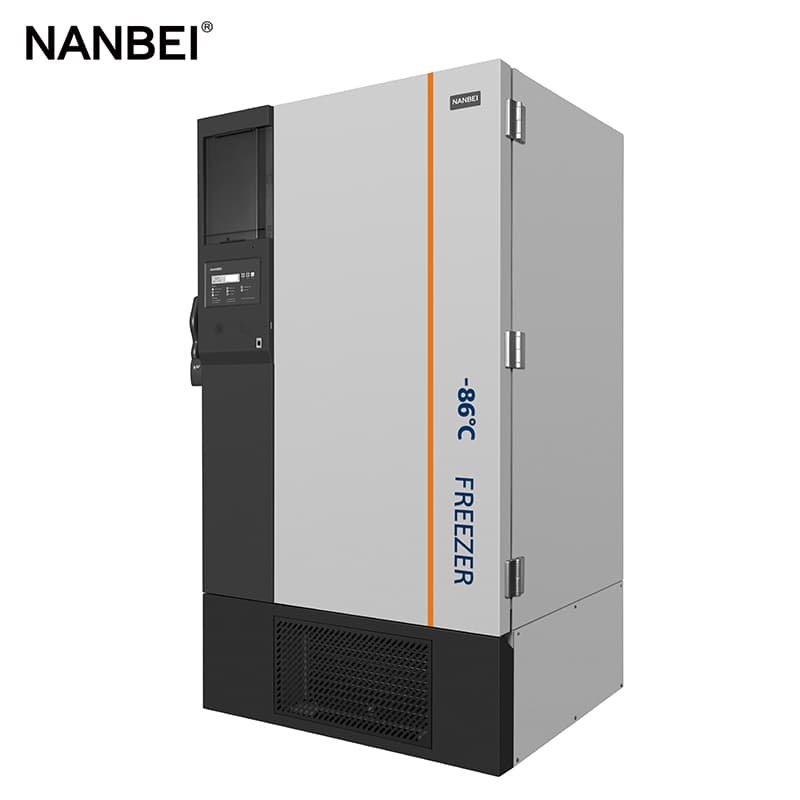

NBD-86L838 Ultra-low Temperature Freezer
Introduction
Components
The compressor and fan are using brand products. Lifespan increase up to 20%.

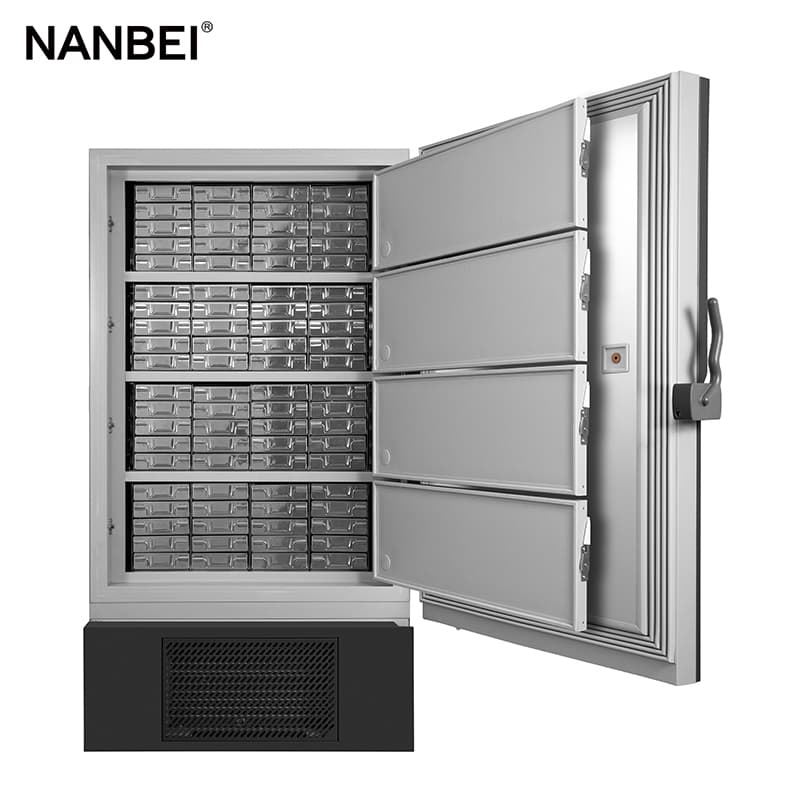

Smart Design, Super sample storage
9,000 vials (2ml) storage.
Multifunction Alarms
Include high, low temperature, sensor error, power failure, high ambient, door ajar ,door open alarm, low battery alarm.
Good Temperature Uniformity
Good temperature uniformity greatly reduce risk of sample degradation caused by temperature fluctuation.
Fast Cabinet Pull Down
Usually takes an average of three hours to reach -81℃ at 25℃ ambient.The faster pull down,the safer for the samples
Forming Technology
Forming agent can provide the high density cabinet , the Space utilization increase 10%.
Stainless Steel Cabinet
Abrasive and corrosion resistance,easy clean.
Features
Cooling system
◆Cooling System offers the high level security storage.
◆Two independent systems, in thecase of an unexpected failure of one cooling circuit, the other can maintainthe freezer’ s temperature uniformlyin the -80℃ range.
Smart-Inverter Technology
Variable speed compressors are coupled in the freezer, the compressors will work based on the loads and inter change fluctuation. The control system automatically tunes the speed of the compressors to optimize the operation.
VIP PLUS Design
◆VIP Plus vacuum insulation provides up to 30% more storage capacity than a conventionally insulated freezer, without increasing the footprint.
◆A glass fifibre core provides good thermal properties.
D-Shape Evaporator
◆D-shape evaporating tube allow the bigger heating exchange area. The heating exchange rate increase up to 15%.
◆More space contact, faster pull down.
Forming Technology
◆Better insulation, more energy-saving.
◆More reasonable of the foaming layer design, higher space ualization rate.
 |  |  |
Specification
NBD-86L838 | |
Storage Volume(L) | 838 |
Climate Class | N |
Compressor | Inverter compressor |
Temperature Range(°C) | -40~-86 |
Cooling System | DualGuard System |
Cooling Type | Direct cooling |
Voltage/Frequency(V/Hz) | 220~240V/50~60Hz |
Cabinet Type | Upright |
Defrost Mode | Manual |
Interior Dimensions (mm)(wxdxh) | 885*720*1310 |
Exterior Dimensions (mm)(wxdxh) | 1175*995*1980 |
Model selection
Item | Model No. | NBD-86L568 | NBD-86L568T | NBD-86L718 | NBD-86L718T | NBD-86L838 | NB-86L838T |
Technical Data | Cabinet Type | Upright | Upright | Upright | Upright | Upright | Upright |
Climate Class | N | N | N | N | N | N | |
Cooling Type | Direct cooling | Direct cooling | Direct cooling | Direct cooling | Direct cooling | Direct cooling | |
Defrost | Manual | Manual | Manual | Manual | Manual | Manual | |
Cooling System | Twin Cooling | Twin Cooling | Twin Cooling | Twin Cooling | Twin Cooling | Twin Cooling | |
Refrigerant | Mixed refrigerant | Mixed refrigerant | Mixed refrigerant | Mixed refrigerant | Mixed refrigerant | Mixed refrigerant | |
Total Storage Volume(L) | 568 | 568 | 718 | 718 | 838 | 838 | |
2ml Cryo Tube Qty | 40000 | 40000 | 50000 | 50000 | 60000 | 60000 | |
External Material | High quality coated steel | High quality coated steel | High quality coated steel | High quality coated steel | High quality coated steel | High quality coated steel | |
Inner Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | |
Control | Controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor |
Display | LED | Touch Screen | LED | Touch Screen | LED | Touch Screen | |
Temperature Accuracy(℃) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | |
Temperature Range | -40 ～ -86℃ | -40 ～ -86℃ | -40 ～ -86℃ | -40 ～ -86℃ | -40 ～ -86℃ | -40 ～ -86℃ | |
Product Dimensions (mm)(wxdxh) | 885*995*1980 | 885*995*1980 | 1030*995*1980 | 1030*995*1980 | 1175*995*1980 | 1175*995*1980 | |
Dimensions | |||||||
Interior Dimensions (mm)(wxdxh) | 595*720*1310 | 595*720*1310 | 740*720*1310 | 740*720*1310 | 885*720*1310 | 885*720*1310 | |
Electrical Data | Power Supply | 110~240V /50 ,60HZ | 110~240V /50 ,60HZ | 110~240V /50 ,60HZ | 110~240V /50 ,60HZ | 110~240V /50 ,60HZ | 110~240V /50 ,60HZ |
Functions | High Temperature Alarm | Y | Y | Y | Y | Y | Y |
Low Temperature Alarm | Y | Y | Y | Y | Y | Y | |
Door Ajar | Y | Y | Y | Y | Y | Y | |
Power Failure Alarm | Y | Y | Y | Y | Y | Y | |
High condenser temperature alarm | Y | Y | Y | Y | Y | Y | |
High ambient Temperature Alarm | Y | Y | Y | Y | Y | Y | |
Low Battery | Y | Y | Y | Y | Y | Y | |
Sensor Failure alarm | Y | Y | Y | Y | Y | Y | |
USB Interface | Y | Y | Y | Y | Y | Y | |
Door Heating | Y | Y | Y | Y | Y | Y | |
Porthole | Y | Y | Y | Y | Y | Y | |
Universal Wheel | Y | Y | Y | Y | Y | Y | |
Caster | Y | Y | Y | Y | Y | Y |
Item | Model No. | NBD-86L458 | NBD-86L458T |
Technical Data | Cabinet Type | Upright | Upright |
Climate Class | N | N | |
Cooling Type | Direct cooling | Direct cooling | |
Defrost | Manual | Manual | |
Refrigerant | Mixed refrigerant | Mixed refrigerant | |
Total Storage Volume(L) | 458 | 458 | |
2ml Cryo Tube Qty | 32000 | 32000 | |
External Material | High quality coated steel | High quality coated steel | |
Inner Material | Stainless steel | Stainless steel | |
Control | Controller | Microprocessor | Microprocessor |
Display | LED | Touch Screen | |
Temperature Accuracy(℃) | 0.1 | 0.1 | |
Temperature Range | -40 ～ -86℃ | -40 ～ -86℃ | |
Dimensions | Product Dimensions (mm)(wxdxh) | 885*855*1990 | 885*855*1990 |
Interior Dimensions (mm)(wxdxh) | 595*580*1310 | 595*580*1310 | |
Electrical Data | Power Supply | 110~240V /50,60HZ | 110~240V /50,60HZ |
Functions | High Temperature Alarm | Y | Y |
Low Temperature Alarm | Y | Y | |
Door Ajar | Y | Y | |
Power Failure Alarm | Y | Y | |
High Condenser Temperature Alarm | Y | Y | |
High Ambient Temperature Alarm | Y | Y | |
Low Battery | Y | Y | |
Sensor Failure Alarm | Y | Y | |
USB Interface | Y | Y | |
Door Heating | Y | Y | |
Porthole | Y | Y | |
Universal Wheel | Y | Y | |
Caster | Y | Y |
