5t/24h Industrial flake ice machine
5t/24h Industrial flake ice machine

5t/24h Industrial flake ice machine

Brand:NANBEI

Model:ZNPB5.0Z-DS/F

Application:

product details



Application Field:

● Aquatic product processing

● Medium and large chain supermarket

● Fresh preservation and cooling field application

● Concrete cooling project

● Medical facilities

● Dye chemical industry

● Mine temperature reduction



Industrial Flake Ice Machine Features:

Reasonable Design

NANBEI ice machine is with integrated structure design, and all our equipments are designed on the basis of modules, so the spot maintenance is simple by removing the old parts and install the new ones. Furthermore we always give consideration to how to conveniently move the ice machine to other places.

High Stability

NANBEI always aims at researching and manufacturing high efficient and energy-saving refrigeration system; the flake ice machine adopted international ice machine processing technology and experience, it can produce quality flake ice and constantly operate over 20,000 hours without failure.

Sanitation

NANBEI flake ice machine is made of stainless steel, pure aluminium alloy or PE material; flake ice is made inside evaporator so it is not exposed to ambient conditions, its hygiene level reaches international standards of HACCP and FDA.

Water & Energy Saving

NANBEI flake ice machine recycles all unfrozen water back to the ice machine so as to ensure all water is converted to ice and save water resources; Our unique evaporator processing technology makes it better heat exchange efficiency and saves more energy, moreover our patented internally-scraping ice scraper can help reduce energy consumption.



Industrial Flake Ice Machine Technical Specifications

Model

Capacity(tons/24h)

Refrigeration Capacity (kW)

Total Power

Weight

Dimension(L*W*H)(mm)

ZNPB3.0Z-DS/F

3

19.17

9.82 kW

470 kg

1615*1015*1120

ZNPB5.0Z-DS/F

5

28.8

15.28 kW

1100 kg

1850*1370*1373

ZNPB8.0Z-DS/F

8

43.2

22.79 kW

1300 kg

2300*1650*1525

ZNPB10Z-DS/F

10

51.5

29.17 kW

1500 kg

2300*1650*1745

ZNPB15Z-DS/F

15

106.6

55.47 kW

3200 kg

3200*2010*2061

ZNPB20Z-DS/F

20

113.6

65.57 kW

4200 kg

3400*2180*2370

ZNPB25Z-DS/F

25

154.8

77.25 kW

5000 kg

3800*2540*2452

ZNPB30Z-DS/F

30

184.5

92.40 kW

6000 kg

4500*2540*2772

ZNPB35Z-DS/F

35

219.5

108.35 kW

6500 kg

4780*3010*2658

ZNPB40Z-DS/F

40

253.8

121.85 kW

7500 kg

5000*3010*2818

ZNPB50Z-DS/F

50

329.1

160.15 kW

10000 kg

5000*3010*3158

ZNPB60Z-DS/F

60

393.7

189.35 kW

12000 kg

5500*3010*3358



★Note:

1) Standard Supply Power: 380V/50Hz/3Phase. Ice machine can be customized upon non-standard power.

2) Cooling System: Air/Water Cooling System

3) Supply Water: Fresh Water

4) Refrigerant: R22/R404a

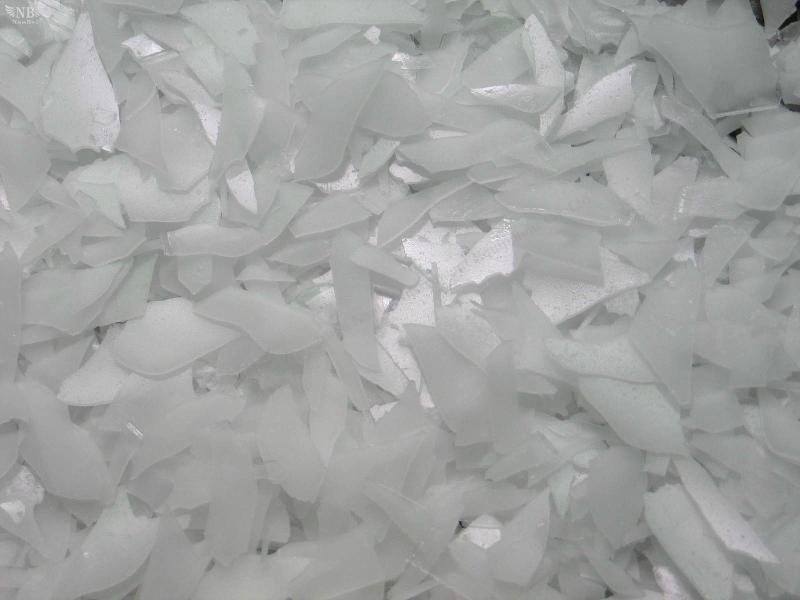

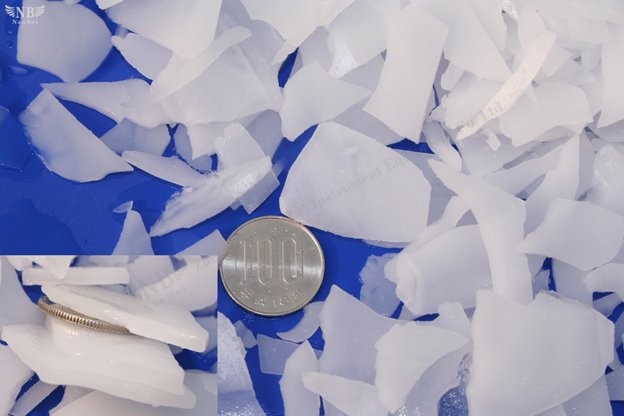

5) Ice Thickness: 1.5~2mm

6) Standard Working Condition: Ambient temperature: 25; Water supply temperature: 16; Evaporation temperature: -20.

7) Applicable Working Condition: Ambient temperature: 5~40; Water supply temperature: 0~40.

8) Specifications are subject to change without notice.
