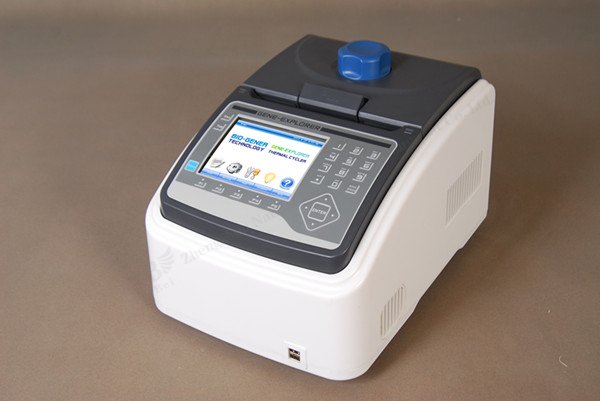

Gene-Explorer Series Thermal Cycler
Gene-Explorer Series Thermal Cycler

Gene-Explorer Series Thermal Cycler

Brand:NANBEI

Model:GE9611

Application:Biology,medicine,agronomy,plant protection,animal husbandry and veterinary,health quarantine,aquaculture,ect

product details

Introduction:

This series product adopts 8 pieces custom-made US Marlow peltier, Max. ramping rate 5℃, cycle times >600000. More advanced technologies applied on the product: Windows operating system; color dispay screen; double blocks can run independently; replaceable block; control by PC function; print function; extra large data storage and USB interfaces. All the above functions make it demand high need experiments.

pcr system

Main Features:

1). Four independent control of semiconductor technology.

2). High-performance universal power supply.

3). Large 5.6-inch high-definition TFT LCD display.

4). Windows operating system, the humanity inter-face.

5). Curve graphic display.

6). LAN online and wireless Bluetooth printing.

7). Power-down data protection.

8). Stepless adjustable hot lid.

9). Lid can be positioned at any angle.

10). Six modules can be replaced easily to meet the requirements of different experiments.

Technical parameters:

Model
General
GE9611(A)GE6021(B)GE4831(C)
GE3841(D)GE4851(E)
Gradient
GE9612(A) GE6022(B)
GE4832(C)GE3842(D)
GE4852(E)
Capacity
96×0.2ml (A), 60×0.5ml (B),
48×0.2ml+30×0.5ml(C),384well(D),Double 48×0.2ml (E)
Temperature Range
0~100℃
Max. Heating Rate
5℃/s
Max. Cooling Rate
4℃/s
Uniformity
≤±0.2℃
Accuracy
≤±0.1℃
Display Resolution
0.1℃
Temperature Control
Block\Tube
Ramping Rate Adjustable
0.1~5℃
Gradient Uniformity
/
≤±0.2℃
Gradient Accuracy
/
≤±0.2℃
Gradient Temp. Range
/
30~100℃
Gradient Spread
/
1~30℃
Hot Lid Temperature
30~110℃
Hot Lid Height Adjustable
Stepless Adjustable
Number of Programs
1000 +(USB FLASH)
Max. No. of Step
30
Max. No. of Cycle
100
Time Increment/Decrement
1 Sec ~ 9 Min 59 Sec
Temp. Increment/Decrement
0.1~9.9℃
Pause Function
Yes
Auto Data Protection
Yes
Hold at 4℃
Forever
Print
Yes
LAN to computer
Yes
LCD
5.6inch,640×480 Pixels, TFT
Communication
USB2.0 , LAN
Dimensions
380mm×240mm×260mm (L×W×H)
Weight
8.5kg
Power Supply
85~264VAC , 47~63Hz , 600 W
