LGJ-12 Manifold Type Vacuum Freeze Dryer
LGJ-12 Manifold Type Vacuum Freeze Dryer

LGJ-12 Manifold Type Vacuum Freeze Dryer

Brand:NANBEI

Model:LGJ-12 manifold type vacuum freeze dryer

Application:

product details

LGJ-12 manifold type vacuum freeze dryer

Application:

LGJ-12 manifold type vacuum freezing dryer is suitable for freeze-drying experiment in laboratory or a small amount production. So they may meet some conventional needs of laboratory.

freeze dryer for milk

Main Characteristics:

1. Match the green environmental protection of international standard

2. Liquid crystal display, Chinese interface, display drying curve

3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function

4. Imported compressor, high capability of water-capture, low noise

5. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying

6. Cold trap and operation pane are all stainless steel, corrosion-resistant and bright

7. Transparent bell-cap drying room is safe and visual

8. Stainless steel sample shelf, the space of common sample tray can be adjusted

9. Small volume, convenient operation


Technical parameter:

LGJ-12
Specification
Manifold ordinary type
Freeze-drying area
0.12㎡
Cold trap temperature
<-55℃
Vacuum degree
<10 Pa
Water-capture capacity
3-4 Kg/24h
Material tray
¢200mm*4
Power
1070 W
Dimension
560*460*(710+430)mm
Material
1.2L
12mm exiling bottle
920
16mm exiling bottle
480
22mm exiling bottle
260

Notice: The temperature of cold trap may reach -80℃ according to the user’s needs

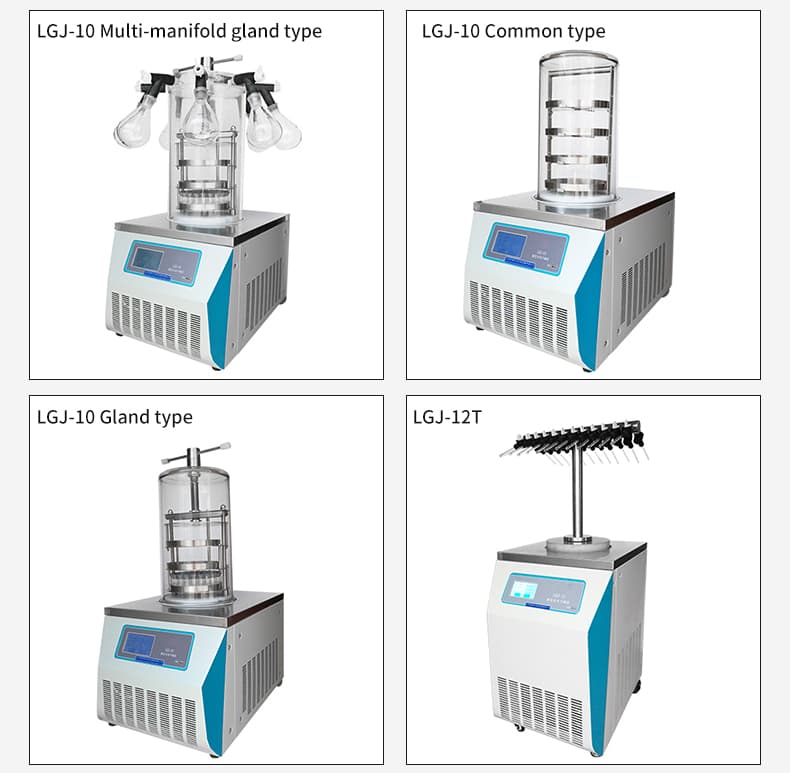

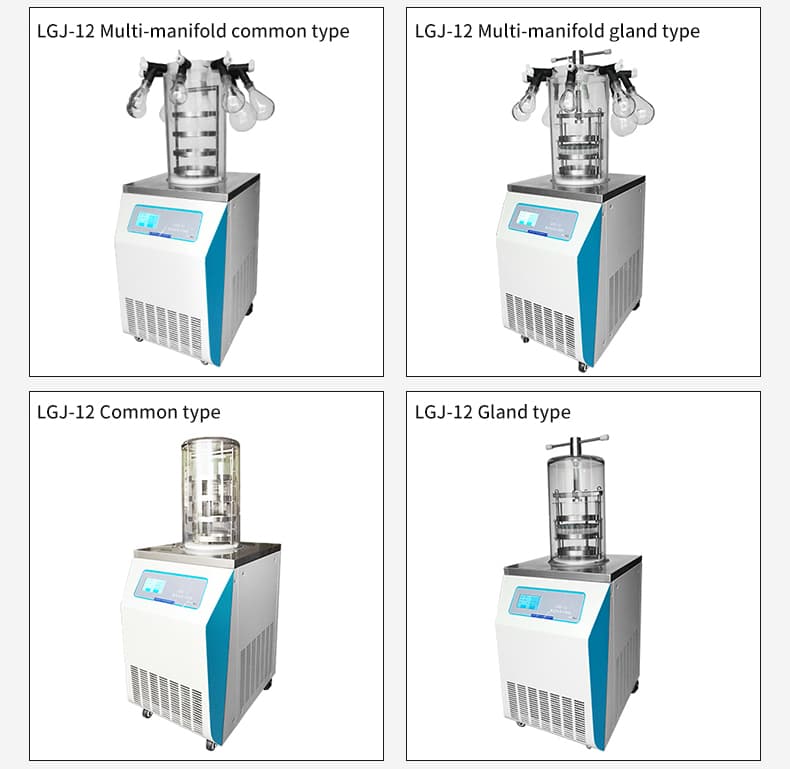

More options

2 (1).jpg

3 (1).jpg

Remark: This product is for civilian use only
