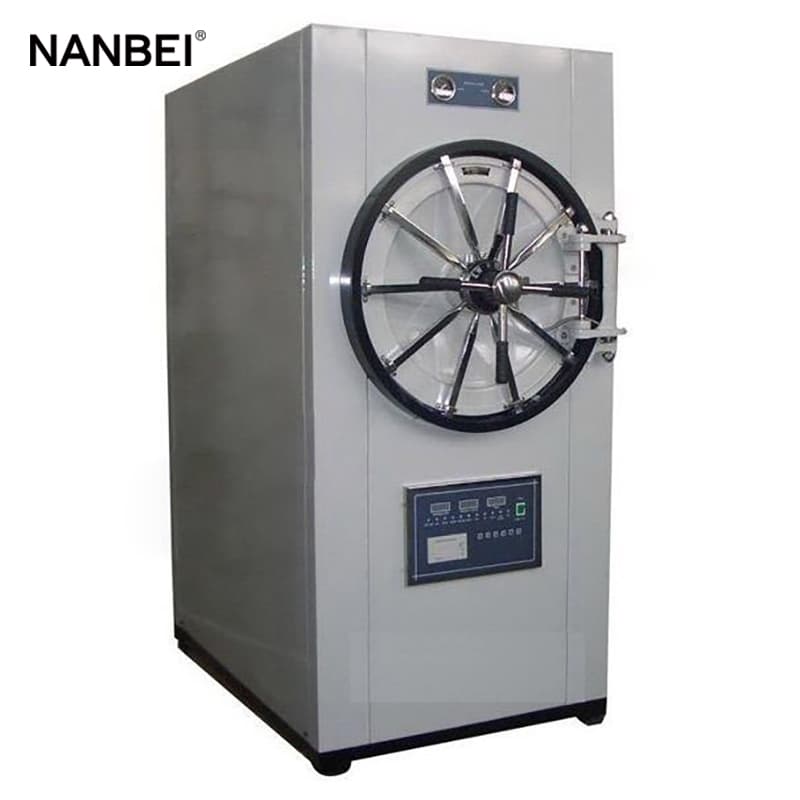

WS-280YDB 280L Horizontal Cylindrical Steam sterilizer

Brand:Nanbei

Model:WS-280YDB

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

Product Introduction

 Horizontal cylindrical pressure steam sterilizer(Microcomputer control)

 Characteristics:

1.Sterilizing course automatic sterilization controlled by computer, easy to operate.

2.With drying function, suitable dressing drying.

3.With over-temperature, over-pressure auto-protect device.

4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.

6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7.The chamber of the sterilizer is made of stainless steel.

8.With printer.

Technical data:

Technical data

WS-150YDB

WS-200YDB

WS-280YDB

Sterilizing chamber

 volume

150L

φ440×1000mm

200L

φ515×1000mm

280L

φ600×1000mm

working pressure

0.22 MPa

working  temperature

134℃

Adjustment of temperature

40℃ - 134℃

Time of sterilization

0-99 min

Time of drying

0-99 min

Heat average

≤± 2℃

Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

Dimension(mm)

1400×650×1600

1400×750×1700

1520×910×1900

Transport dimension

(mm)

1560×820×1820

1560×910×1880

1680×1080×2100

 G.W/N.W

430/340 KG

436/350 KG

570/462 KG
