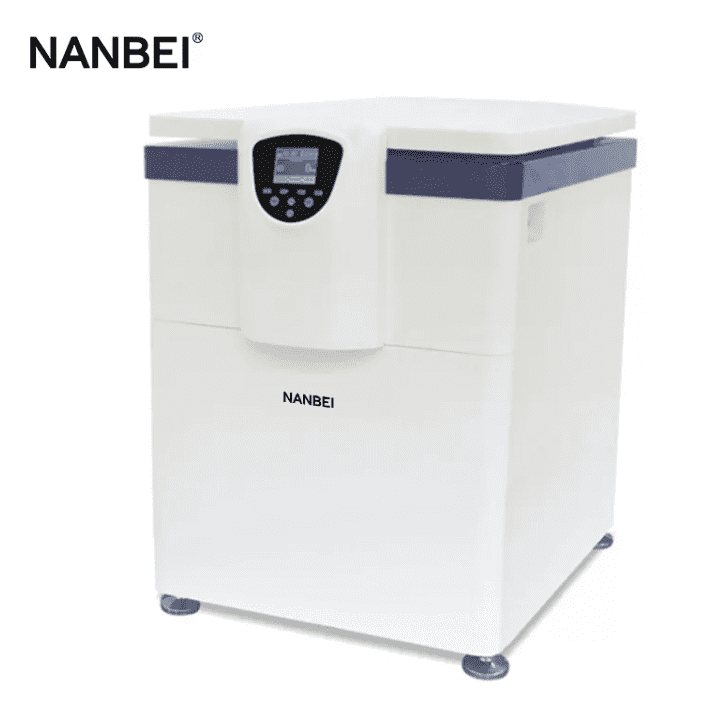

NBL8R Free Standing Type Low-Speed Refrigerated Centrifuge
NBL8R Free Standing Type Low-Speed Refrigerated Centrifuge

NBL8R Free Standing Type Low-Speed Refrigerated Centrifuge

Brand:NANBEI

Model:NBL8R

Application:

product details

NBL8R Free Standing Type Low-Speed Refrigerated Centrifuge

NBR series table-type large capacity refrigerated centrifuge,up to 4*750ml,is widely applied in biochemistry product,science and research,teaching,food safety,health and medicine,blood station,hospital,molecular biotechnology,environmental protection.


Features:
Use AV motor of variable frequency and high toque,free from contamination caused by carbon dust,which helps to prolong the service life.
Controlled by an SCM of Microchip's dsPIC30F Series and driven by a special driver module of FAIRCHILD's FSBB30CH Series to ensure the circuit's reliability.
With TFT true-color LCD wide-screen touch monitor,micro-computer control and simultaneous indication of both the set parameters and operation ones.
The design of the whole machine is in line with the ergonomics.
With multiple protection measures such as super speed,over heat and imbalance as well as a special combination of shock absorbers to keep the motor running smoothly.
With a dedicated key indicating the centrifugal force which has the inching function for momentary centrifugation.
Able to provide 20 kinds of operating modes for the user to programme and use freely.
10 levels for speed-up /speed -down control.

Maximum rotation speed:8000r/min Maximum capacity:4x750ml.


Paramters:

Model

NBL8R

Max Capacity

Swing 4×750ml

Max Speed(r/min)

6500

Max RCF(×g)

4800

Speed precision

±50r/min

Refrigeration system

Import fluoride-free compressor and control valve(R404a)

Temp.control range

-20℃~+40℃

Temp.precision

±1℃

Operation programe

20

Motor and drive

Frequency motor,micro control,direct driver

Total power

2.0kw

Timer range

0-99h59min

Noise

≤65dB

Identify rotor

Automatic function

weight

150kg

Dimension(L×W×H)

710×560×770mm

large capacity centrifuge

Model Capacity NBL8R

speed

RCF
Angle rotor 12×10 ml 8000 5940
Swing rotor 4×750 ml 4000 3500
Swing rotor 4×500 ml(round cup) 4000 3780
Adapter 4×250 ml/300 ml
4×100 ml
12×50 ml
36×15 ml
72×10 ml
72×5 ml
Swing rotor 148×5 ml/2 ml
(vacuum tube)
4000 2900
48×5 ml/2 ml
(vacuum tube)
4000 2950
76×5 ml/2 ml
(vacuum tube)
4000 3100
16×15 ml 4000 4800
24×10 ml 4000 2810
4×100 ml 5000 4800
8×50 ml 4000 2810
32×15 ml 4000 2810
32×10 ml 4000 2810
Swing microplate rotor
2×2×96 hole
4000 2360
