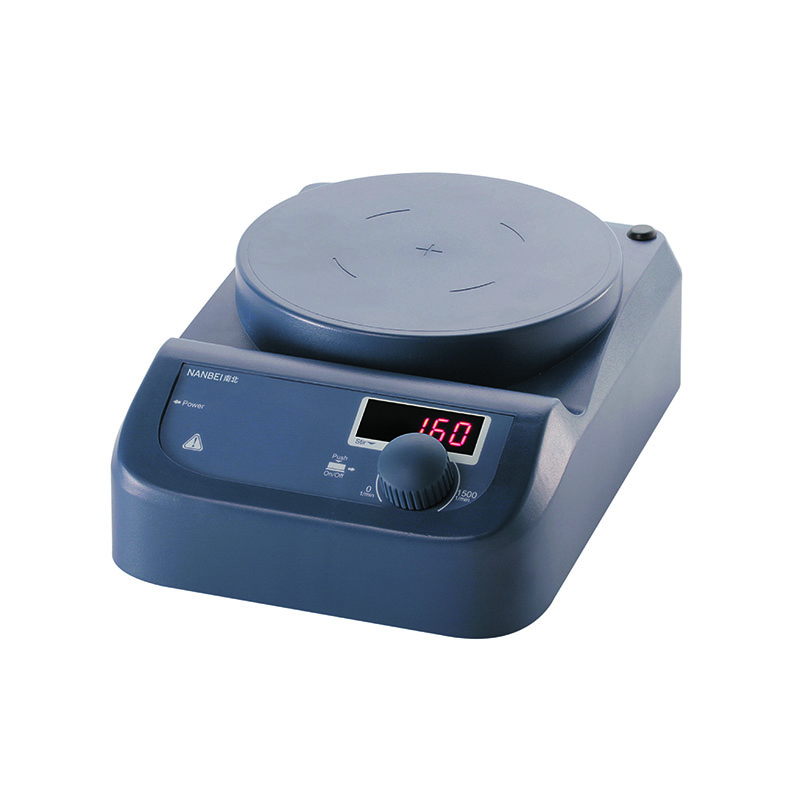

NB-PA Magnetic Stirrer
NB-PA Magnetic Stirrer

NB-PA Magnetic Stirrer

Brand:NANBEI

Model:NB-PA

Application:

product details

Key Features
•   Digital speed control within the range of 100-1500rpm
•   Max. stirring quantity of H2O at 3L
•   LED display shows speed
•   Nylon+GF housing provides a good performance of chemical resistance

Specification

 SpecificationsNB-PA
Work plate dimension[WXD]φ135mm(5 inch)
Work plate materialNylon+GF
Motor typeBrushless DC motor
Motor input power5W
Motor output power3W
Power15W
Voltage100-120/200-240V  50/60Hz
Stirring positions1
Max. stirring quantity[H2O]3L
Max. magnetic bar[length]50mm
Speed range0-1500rpm
Speed displayLED
Protection classIP42
Dimension [W x D x H]150×260×80mm
Weight1.8kg
Permissible ambient temperature and humidity5-40°C 80%RH


Order Info

Cat. No.P/NDescriptionsPower supply
8030104200NB-PALED Digital Magnetic Stirrer, plastic plateUSA plug,100V-220V/50Hz/60Hz
Cn plug,100V-220V/50Hz/60Hz
Euro plug,100V-220V/50Hz/60Hz
UK plug,100V-220V/50Hz/60Hz
18900006MSBAR10Stirrer bar(10mm x 6mm),1pc/pk
18900007MSBAR15Stirrer bar(15mm x 8mm),1pc/pk
18900008MSBAR20Stirrer bar(20mm x 8mm),1pc/pk
18900009MSBAR25Stirrer bar(25mm x 8mm),1pc/pk
12500005MSBAR30Stirrer bar(30mm x 6mm),1pc/pk
18900011MSBAR40Stirrer bar(40mm x 8mm),1pc/pk
12500004MSBAR50Stirrer bar(50mm x 8mm),1pc/pk
18900015MARRMStirrer bar remover, length of 200mm, 1pc/pk
