2L Jacketed Glass Reactor
2L Jacketed Glass Reactor

2L Jacketed Glass Reactor

Brand:NANBEI

Model:NB-2L

Application:

product details

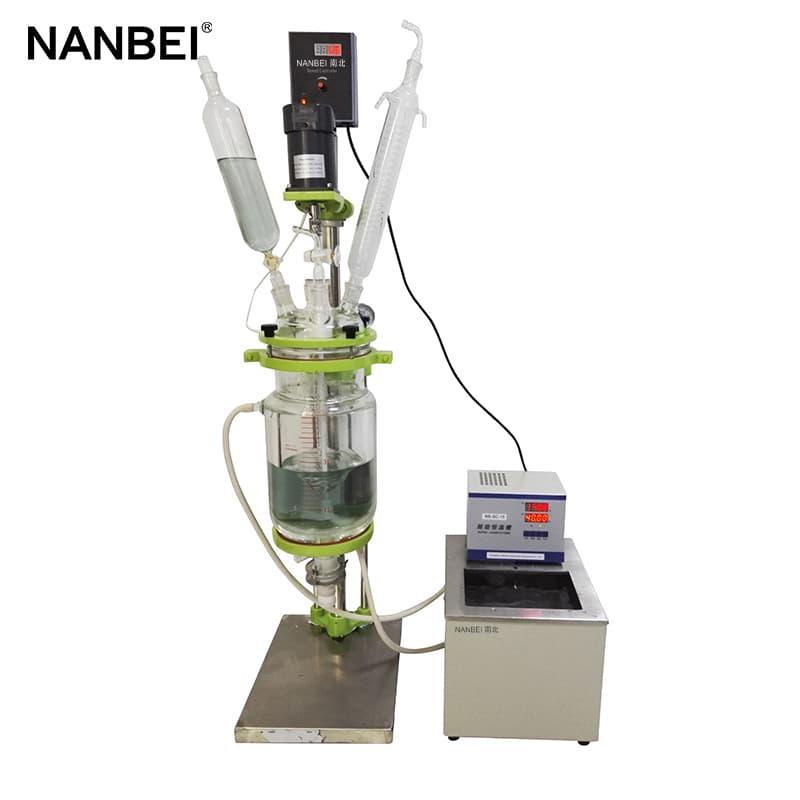

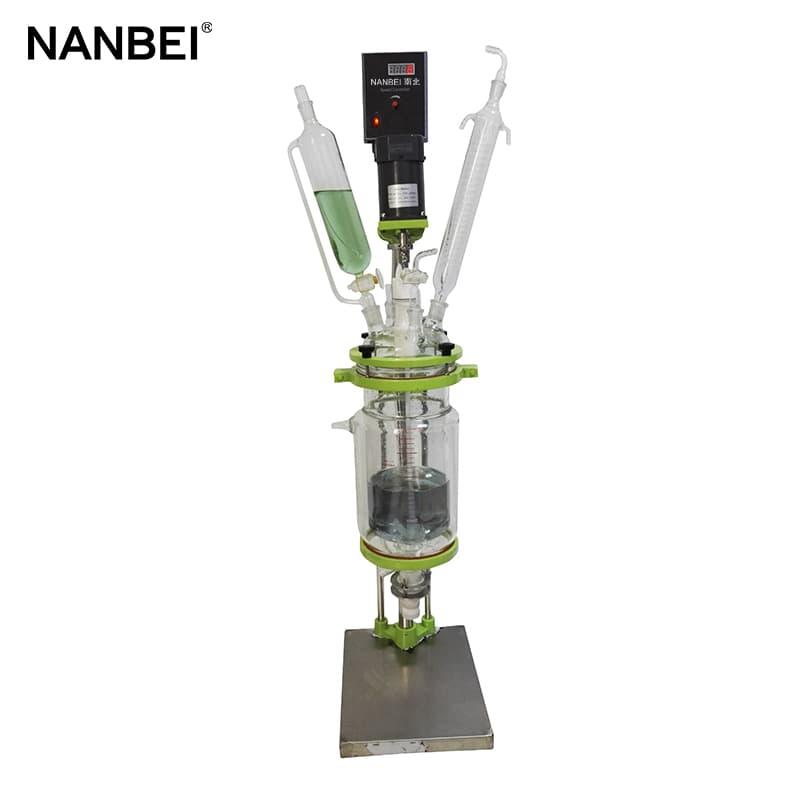

2L jacketed glass reactor

Brief introduction:

The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.


Features:

1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties

2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.

3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.

04-Chemical extraction lab 5L jacketed glass reactor with double layer (3).jpg

Technical parameter:

NB-5L
NB-3L
NB-2L
NB-1L
Volume(L)
5
3
2
1
Power(w)
90
60
60
60
Speed(rpm)
20-600
Mixing torque(1300r/min)
5000g.cm
5000g.cm
5000g.cm
2400g.cm
Inside and outside tube diameter
200*230
200*230
150*180
150*180
Size(cm)
44*32*84
44*32*84
44*32*84
35*27*65

Remark: This product is for civilian use only


More pictures:

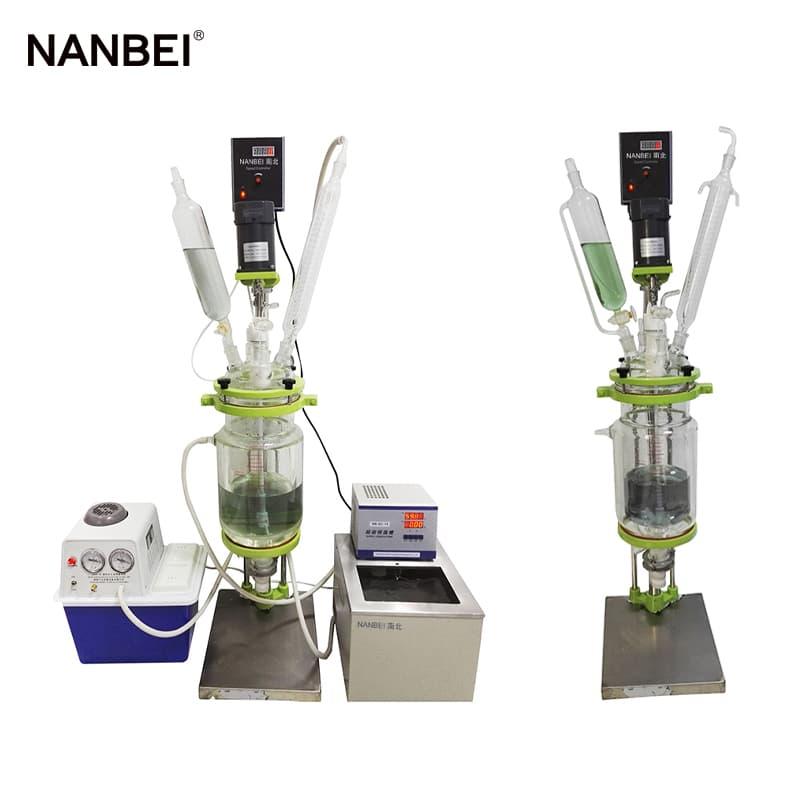

double layer glass reaction kettle

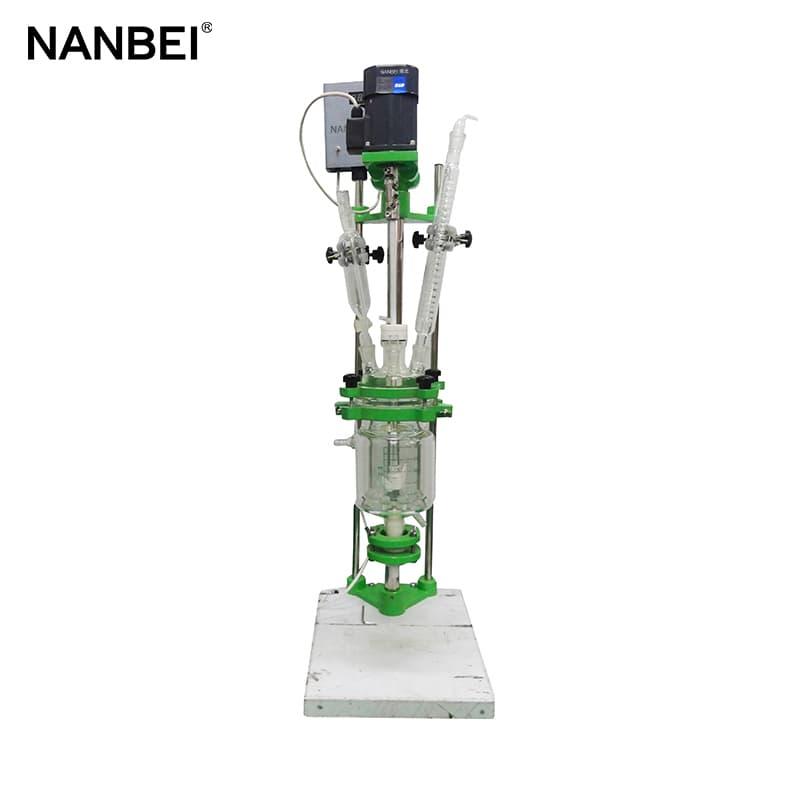

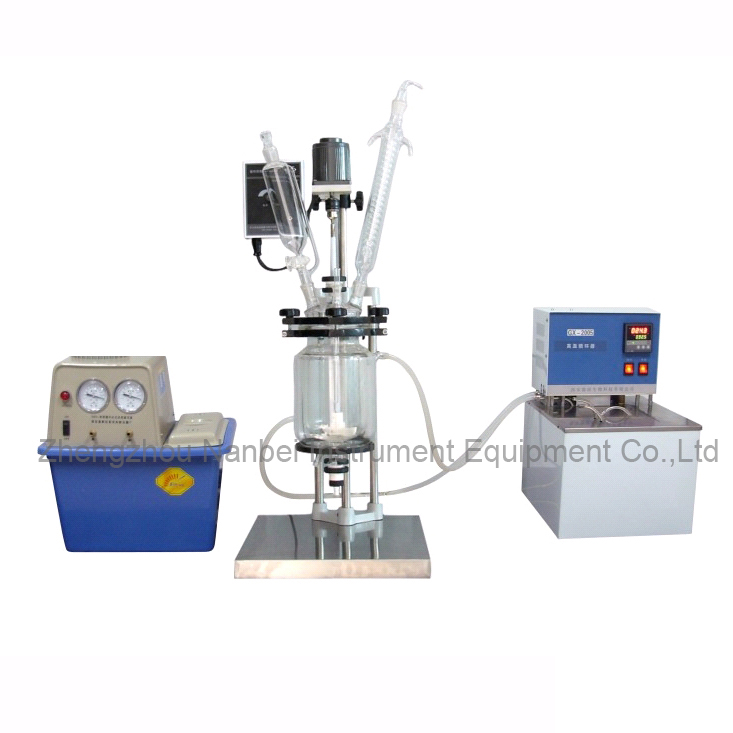

laboratory reactor
