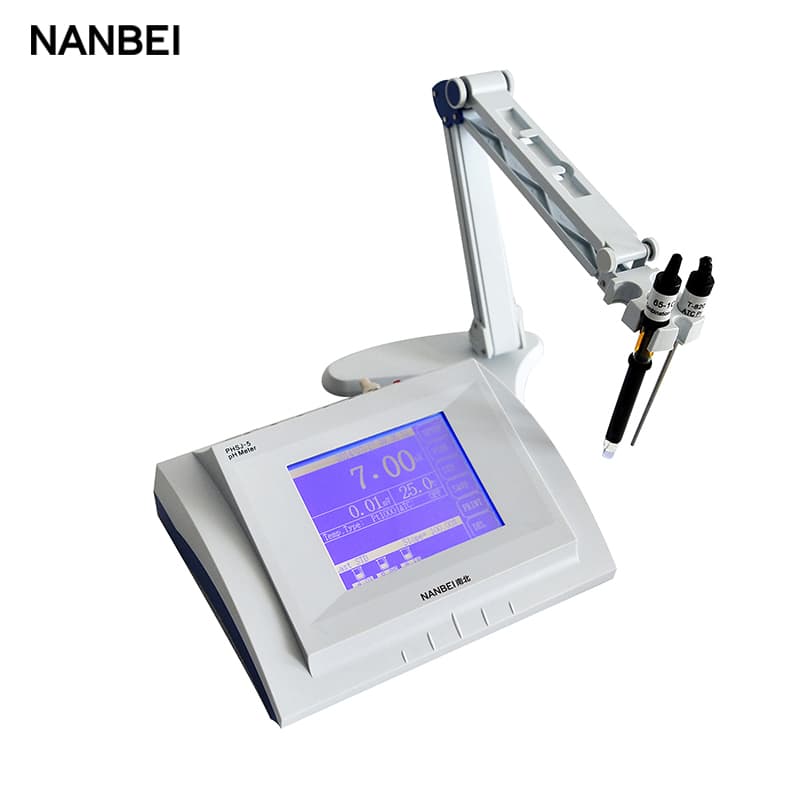

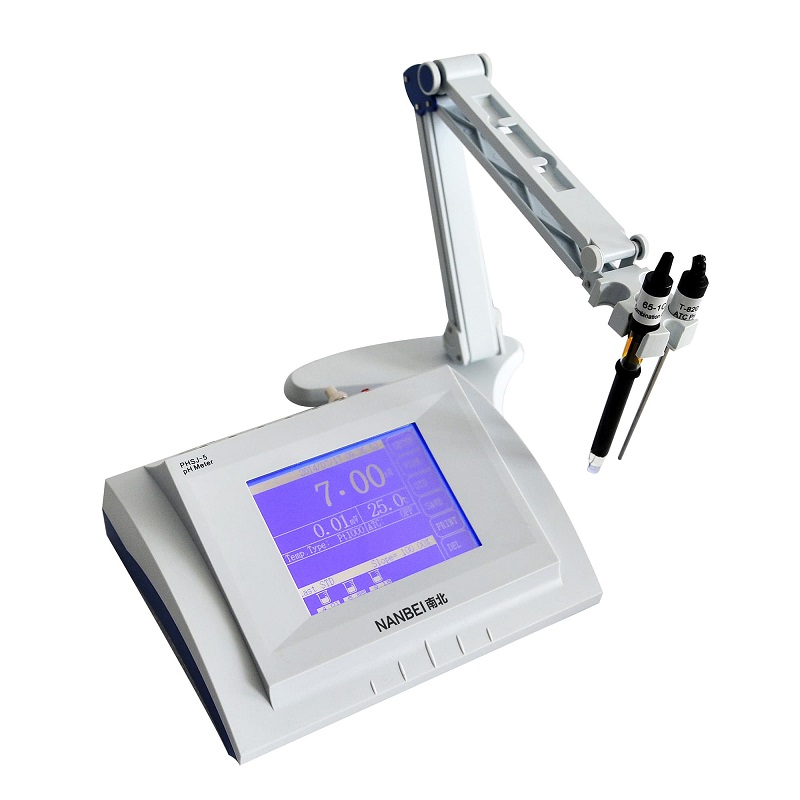

PHSJ-5 PH Meter

PHSJ-5 PH Meter

Functions:

1.The instrument is equipped with large LCD touch screen and English operation system for easy use.

2.Several kinds of pH buffers can be chosen for calibration. Furthermore, the buffer solution can be prepared by users.

3.The instrument can recognize five types of buffers automatically.

4.It has many functions such as automatic and manual temperature compensation, self-calibration and self-calculation of electrode percentage theoretical slope.

5.The data can be stored, deleted, printed and viewed, and the quantity of measuring data can be maximized to 200 sets.

6.It has standard RS-232 and USB interface. To match with data collecting software, it can be communicated with computer.

7.It is equipped with E-201-D pH combined electrode and T-820C temperature electrode.

Specifications:

1.Measuring range

pH：（-2.000~18.000）pH

mV: （-1999.99~1999.99）mV

Temperature: （-5.0~105.0）℃

2.Resolution

pH：0.1pH、0.01pH、0.001pH

mV：0.1mV、0.01mV

Temperature: 0.1℃

3.Accuracy:

pH：±0.002pH±1 bit

mV: ±0.03% FS

Temperature: ±0.2℃±1 bit

4.Input impedance>=3×1012Ω

5.Stability: （±0.002pH ±1 bit）/3h

6.Temperature compensation range: manual/automatic （-5.0～105.0）℃

7.Power supply: AC (220V±22) V；(50Hz±1)Hz

8.Dimension（mm）：250×195×100

9.Net Weight:2kg

10.Case outside serial No: WXS-A009-1

Package Size: 370X310X340mm

Gross Weight:4kg
