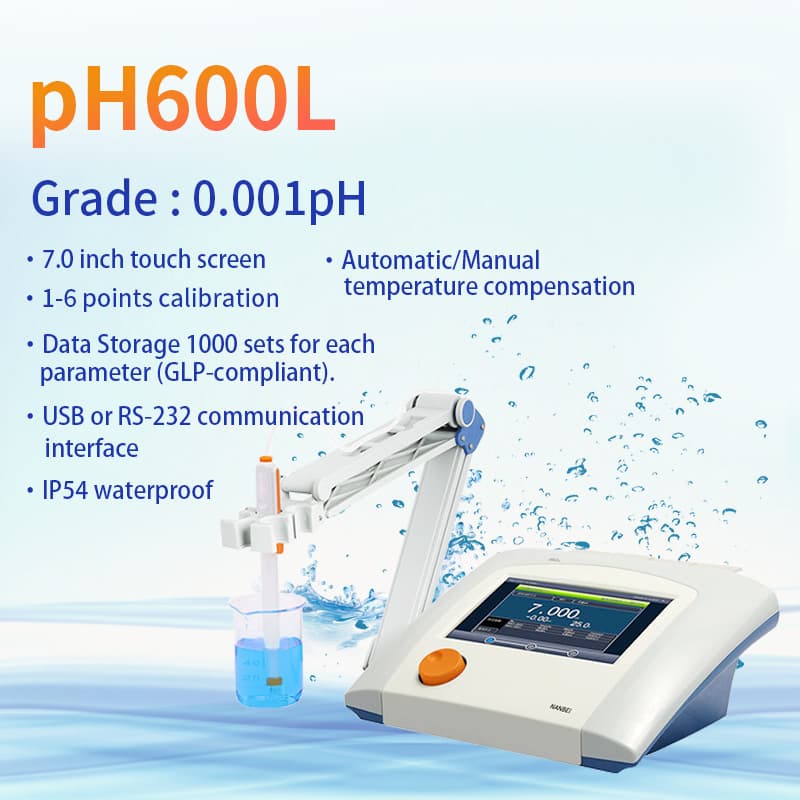

PH600L Benchtop pH Meter
GENERAL FEATURES
1. Color High contrast LCD touchscreen, 7.0 inches.
2. Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
3. Multi-reading feature allows auto-read, timed-read and continuous-read.
4. Automatic/Manual temperature compensation ensures accurate results.
5. Data Storage 1000 sets for each parameter (GLP-compliant).
6. Data analysis feature helps user review, compare and recalculate results.
7. Support for USB or RS-232 communication.
8. Reset feature automatically resumes all settings back to factory default options.
9. IP54 waterproof.
10. 1-6 points calibration with Standard Recognition.
11. Selectable pH buffer groups, including NIST, DIN, GB.
12. Support for pH standard group customization.
13. Automatic electrode diagnosis with pH slope and offset display.
PRODUCT SPECIFICATIONS
Model | PH600L | |
Parameters | pH/Temp.(mV/ORP) | |
pH | Range | -2.000 to 20.000 pH |
Resolution | 0.1, 0.01, 0.001pH | |
Accuracy | ±0.002 pH | |
Calibration Points | Up to 6 | |
Standard Customization | Yes | |
Calibration Reminder | Yes | |
Standard Recognition | NIST, GB, DIN buffers | |
Slope Limit | Yes | |
mV/ORP | Range | -2000.00 to 2000.00 mV |
Resolution | 0.1, 0.01 mV | |
Accuracy | ±0.03%FS | |
Temperature | Range | -5 to 130 ºC |
Unit | ºC | |
Resolution | 0.1 | |
Accuracy | ±0.1 | |
Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | ATC, MTC | |
Data management | Data Storage | 1000 Groups |
GLP Features | Yes | |
Log Management | Yes | |
Inputs | pH Electrode | BNC(Q9) |
Temp. Probe | 6-pin Mini-DIN | |
Outputs | USB, RS 232 | USB 2.0 flash memory device, printer, PC |
Display options | Backlight | Yes |
Auto Shutdown | 1~60 min, off | |
IP Rating | IP54 | |
Date and Time | Yes | |
General | Power | AC Adapter, 100-240V AC input, DC24V output |
Dimensions | 280×280×130 mm | |
Weight | 2500g (5.51 lb) | |
