Bench Type Conductivity Meter
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

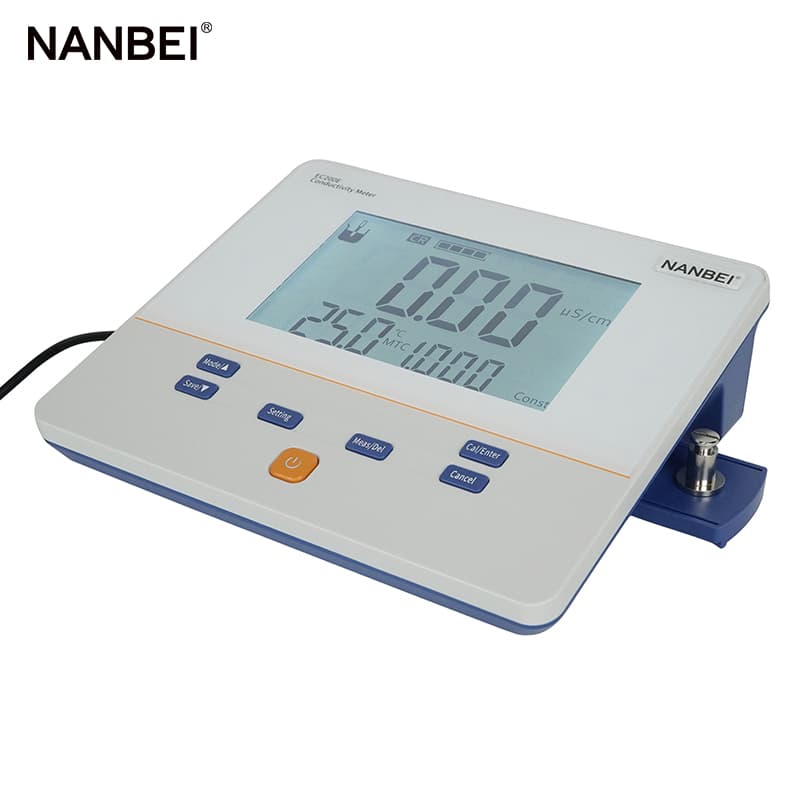

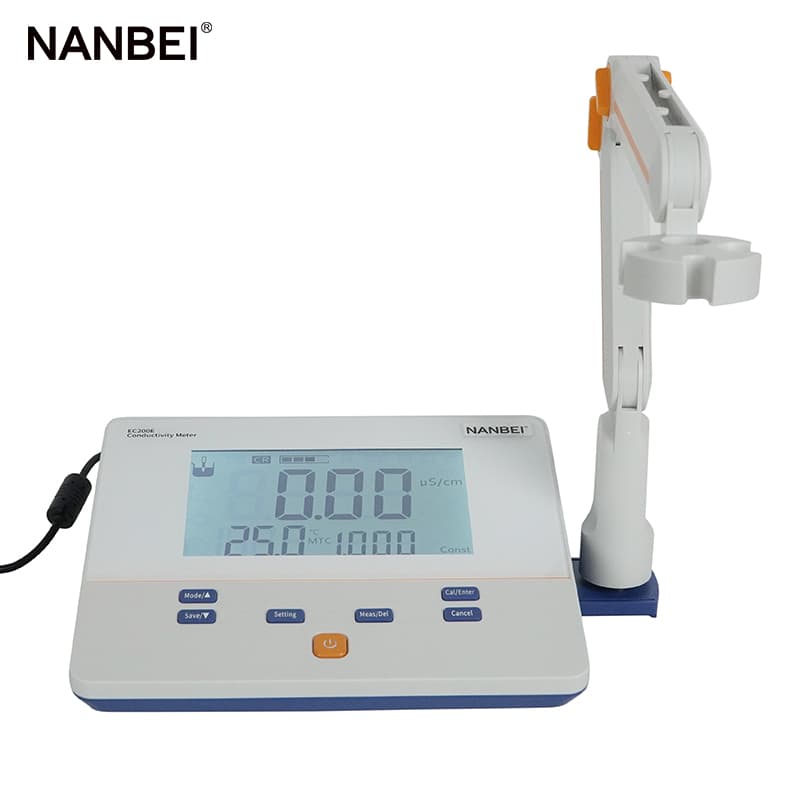

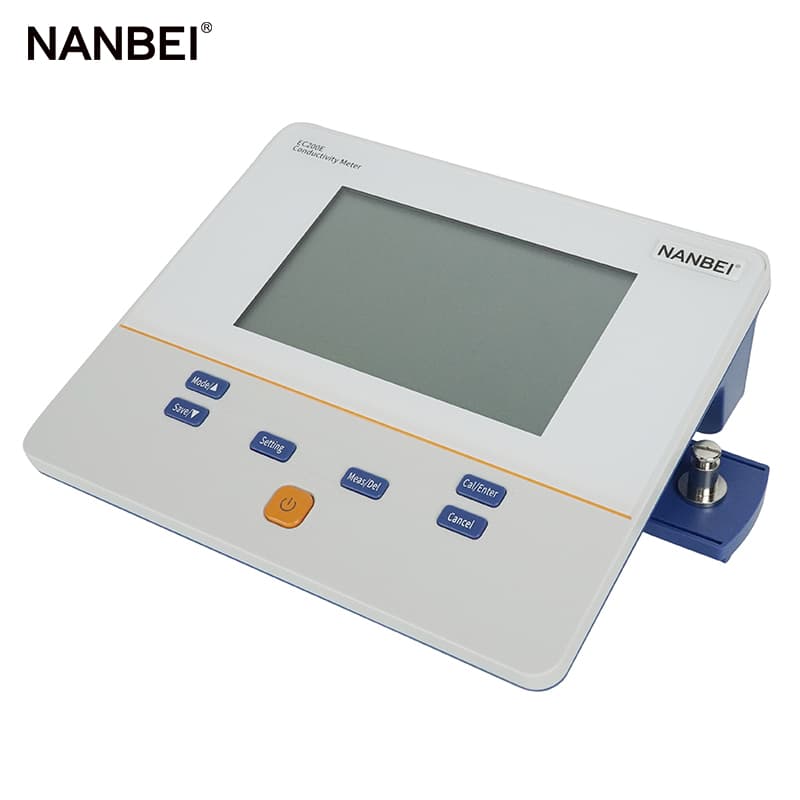

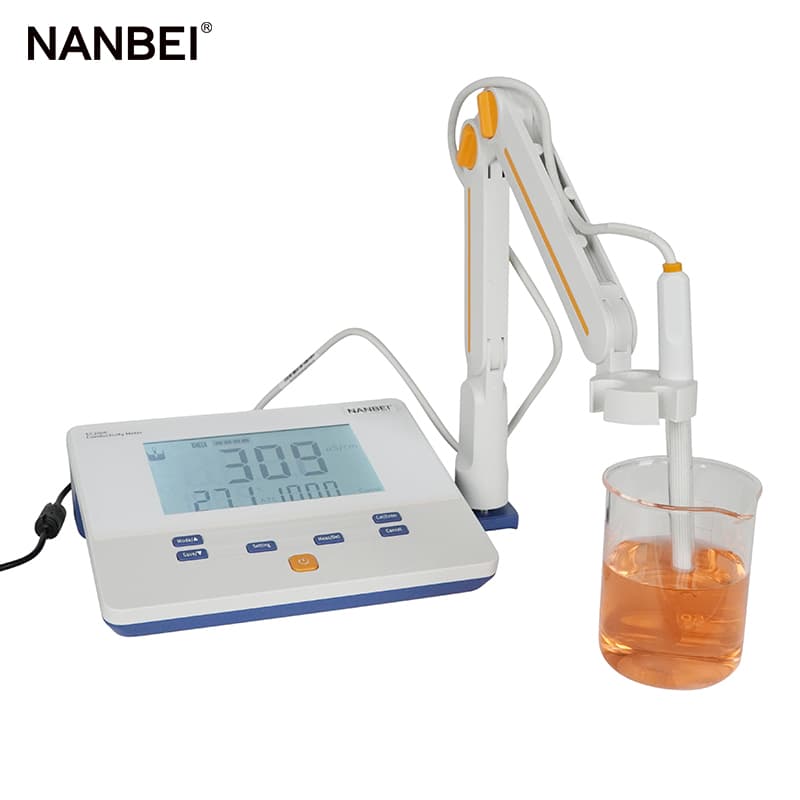

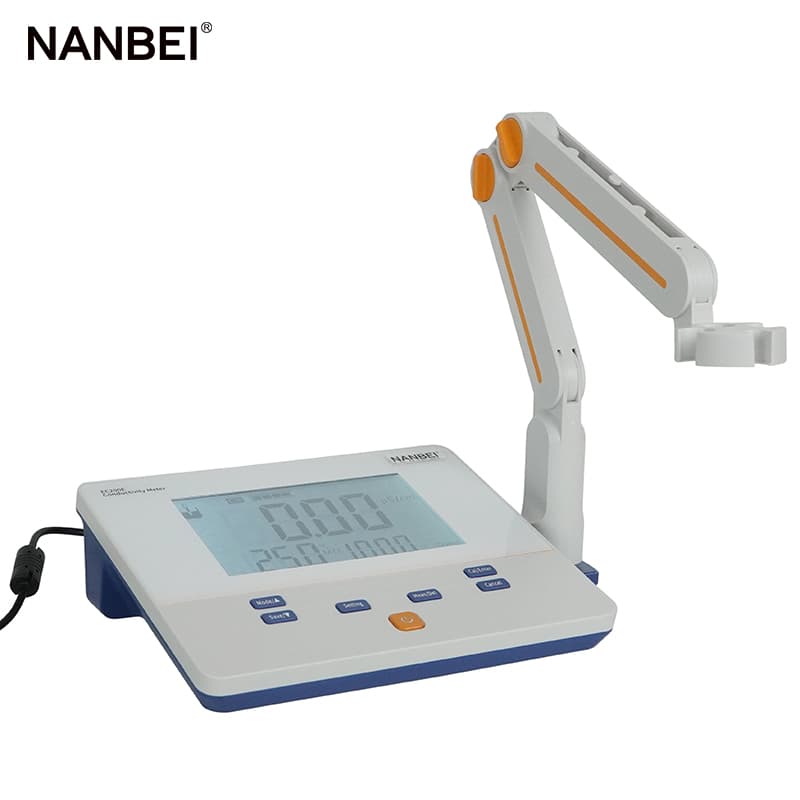

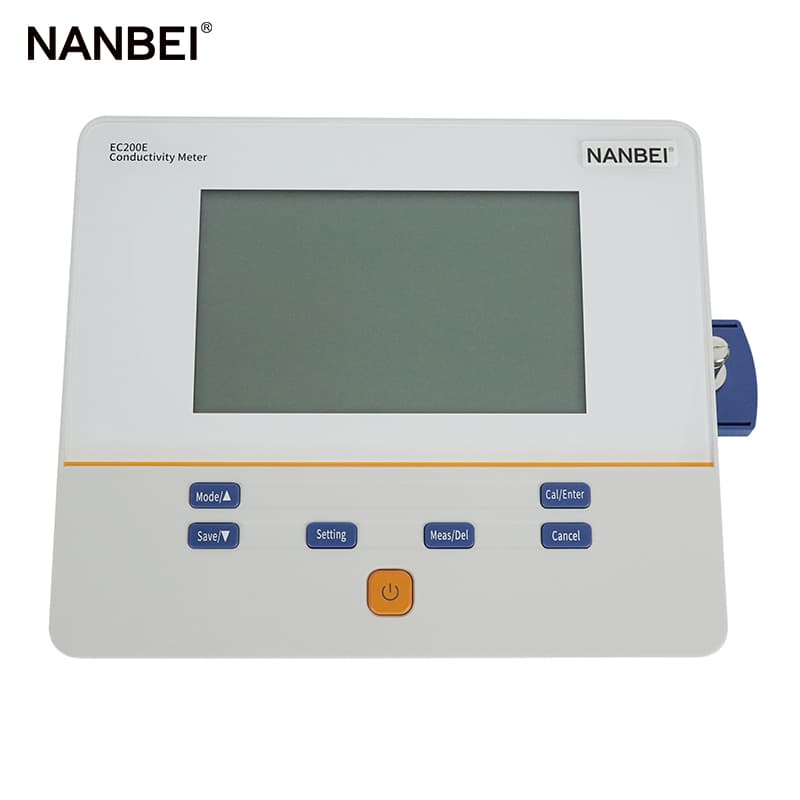

EC200E Benchtop Conductivity Meter
GENERAL FEATURES

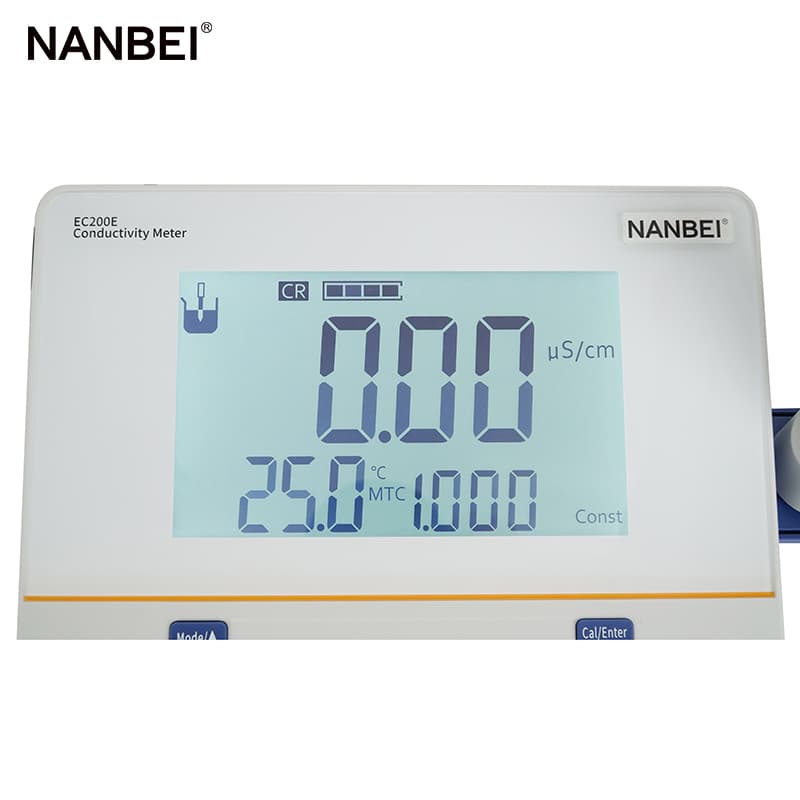

High resolution LCD display screen, 6.0 inches.
Multi-reading feature allows auto-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 50 sets for each parameter.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1 point calibration with Standard Recognition.
Cell constant is settable.
PRODUCT SPECIFICATIONS
Model | EC200E | ||
Parameters | EC/Temp.(TDS) | ||
Conductivity | Range | 0.00 μS/cm to 200 mS/cm | |
Resolution | 0.01 μS/cm minimum, various with range selection | ||
Accuracy | ±1.0% FS | ||
Reference Temperature | 25 ºC | ||
Calibration Points | Up to 1 | ||

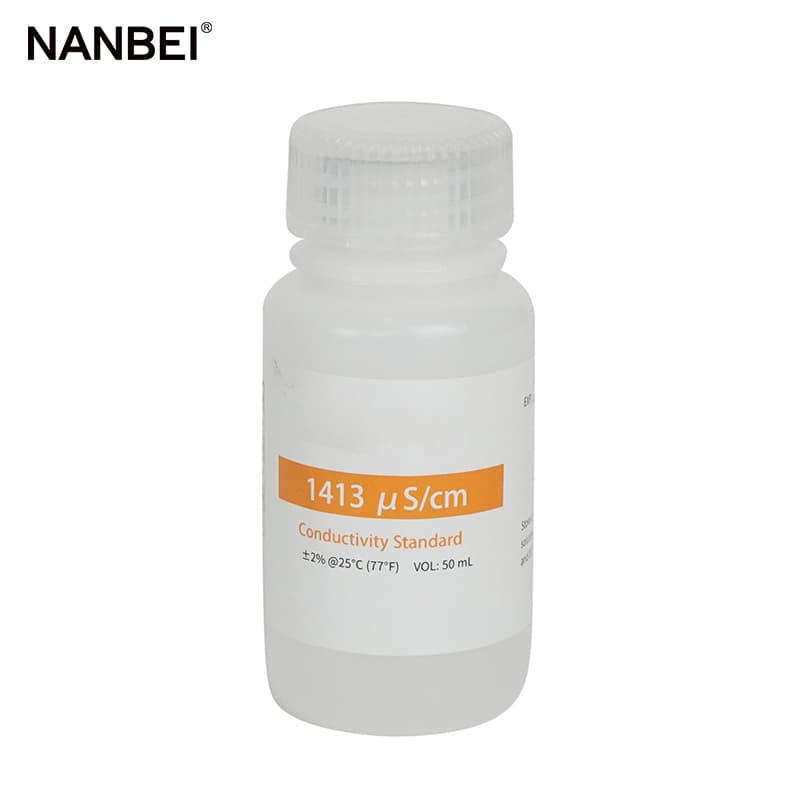

Standard Recognition | 84μS/cm, 1413μS/cm, 12.88mS/cm | ||
TDS | Range | 0.00mg/L~100g/L | |
Resolution | 0.01mg/L minimum, various with range selection | ||
Accuracy | ±1.0% FS | ||
Temperature | Range | -5.0 to 110 ºC, 23.0 to 230 ºF | |
Unit | ºC | ||
Resolution | 0.1 | ||
Accuracy | ±0.2 | ||
Measurement | Reading Mode | Auto Read, Continuous | |
Reading Prompts | Reading, Stable, Locked | ||
Temp. Compensation | ATC, MTC | ||
Data management | Data Storage | 50 results each | |

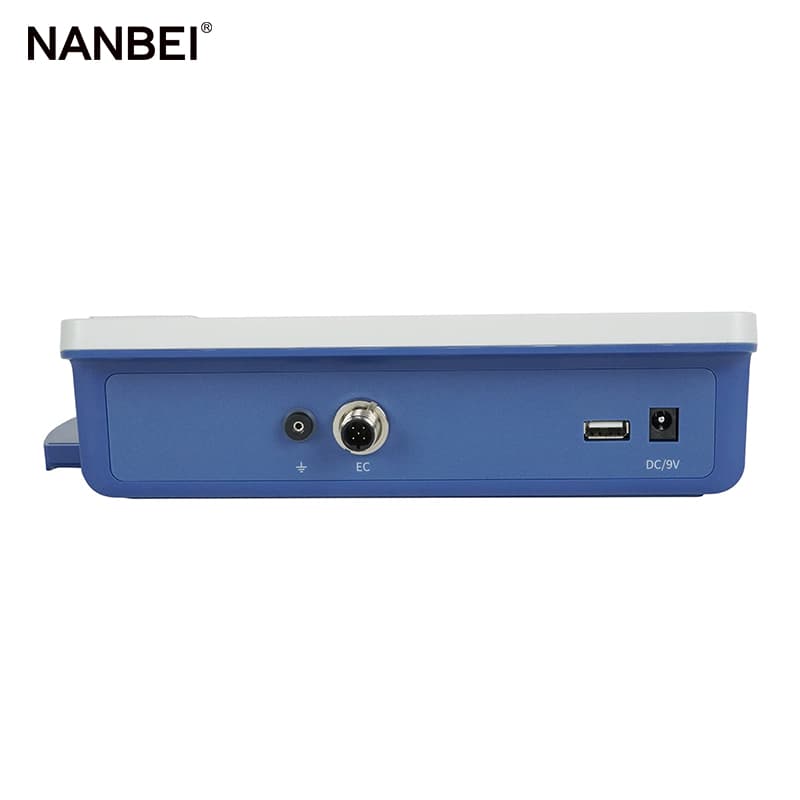

Inputs | Conductivity with Temp. Probe | 5-pin aviation connector | |
Display options | Backlight | Yes | |
Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | ||
IP Rating | IP54 | ||
General | Power | AC Adapter, 100-240V AC input, DC9V output | |
Dimensions | 242×195×68 mm | ||
Weight | 900g (1.98 lb) | ||
 |  |  |
 |  |  |
