Laboratory Freeze Dryer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:LGJ-18 manifold vacuum freeze dryer
Application:

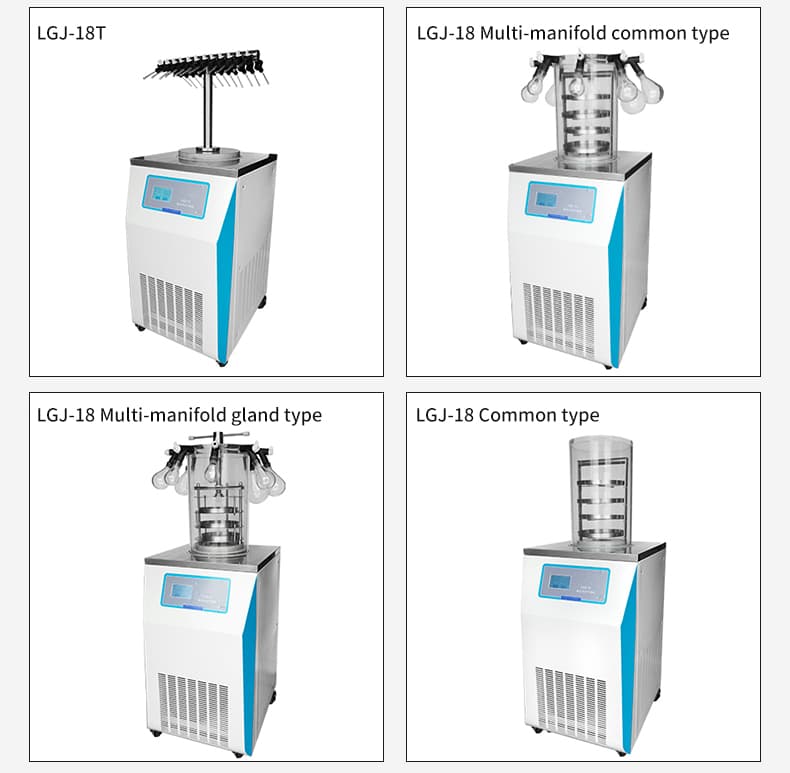

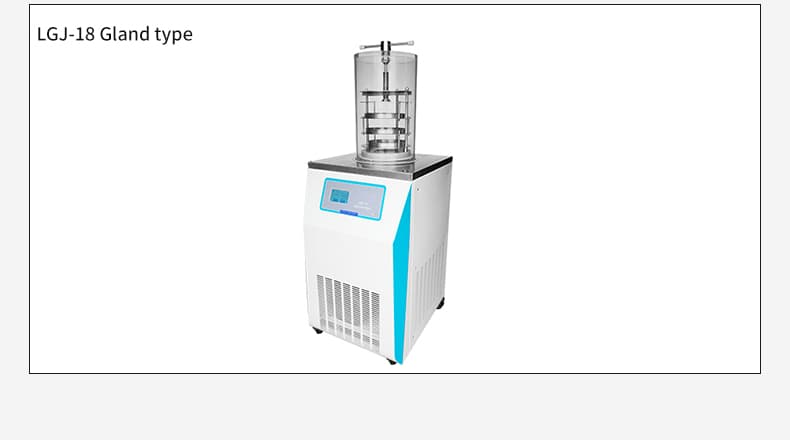

LGJ-18 series of freeze-dryer:
Application:
LGJ-18 freezing dryer is suitable for freeze-drying experiment in laboratory or a small amount production. So they may meet some conventional needs of laboratory.
Main Characteristics:
1. Match the green environmental protection of international standard
2. LCD display, Chinese interface, display drying curve
3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function
4. Imported compressor, high capability of water-capture, low noise
5. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying
6. Cold trap and operation pane are all stainless steel, corrosion-resistant and bright
7. Transparent bell-cap drying room is safe and visual
8. Stainless steel sample shelf, the space of common sample tray can be adjusted
9. Small volume, convenient operation
Technical parameter:
Model | LGJ-18 |
Specification | Manifold ordinary type |
Freeze-drying area | 0.18㎡/0.27㎡ |
Cold trap temperature | ＜-55℃ |
Vacuum degree | ＜10Pa |
Water-capture capacity | 6Kg/24h |
Material tray | ¢240mm*4/¢240mm*6 |
Power | 1400w |
Dimension | 635*540*(970+430)mm |
Material | 1.8L/2.7L |
12mm exiling bottle | 1320/1980pcs |
16mm exiling bottle | 740/1110pcs |
22mm exiling bottle | 360/540pcs |
Notice: The temperature of cold trap may reach -80℃ according to the user’s needs.
More options
Remark: This product is for civilian use only
