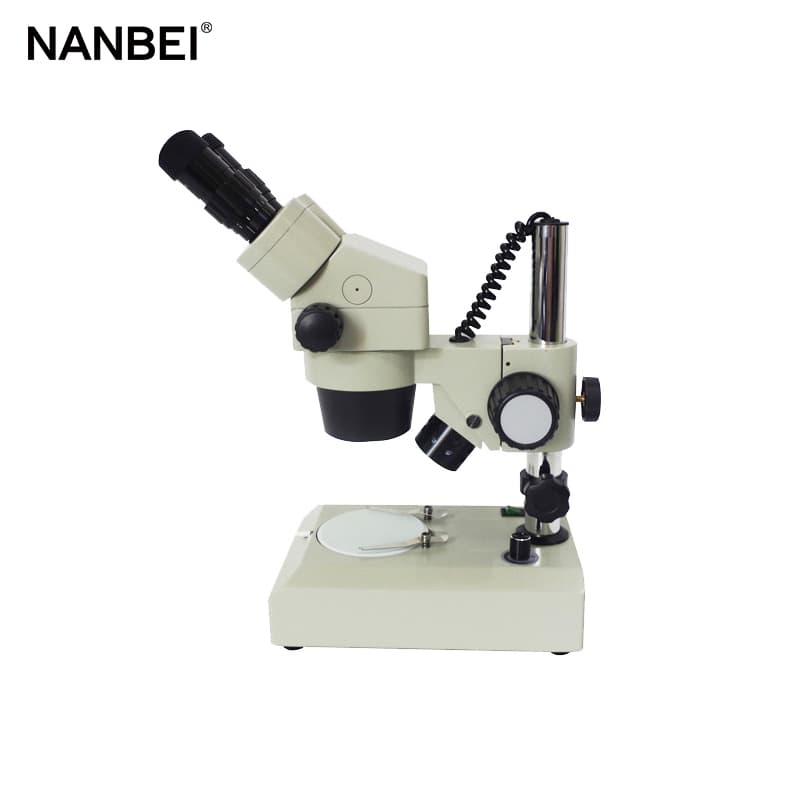

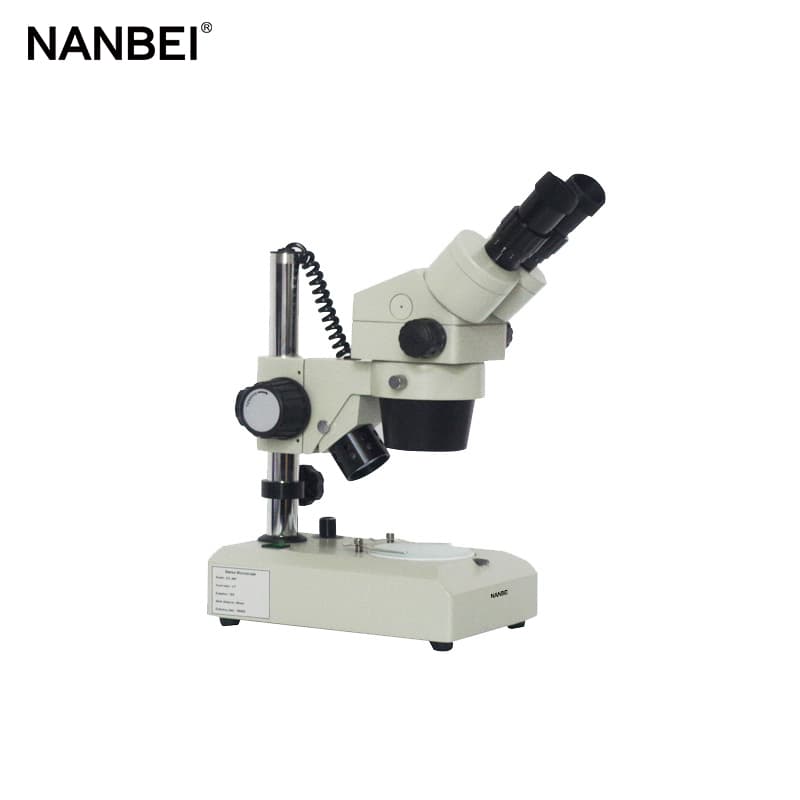

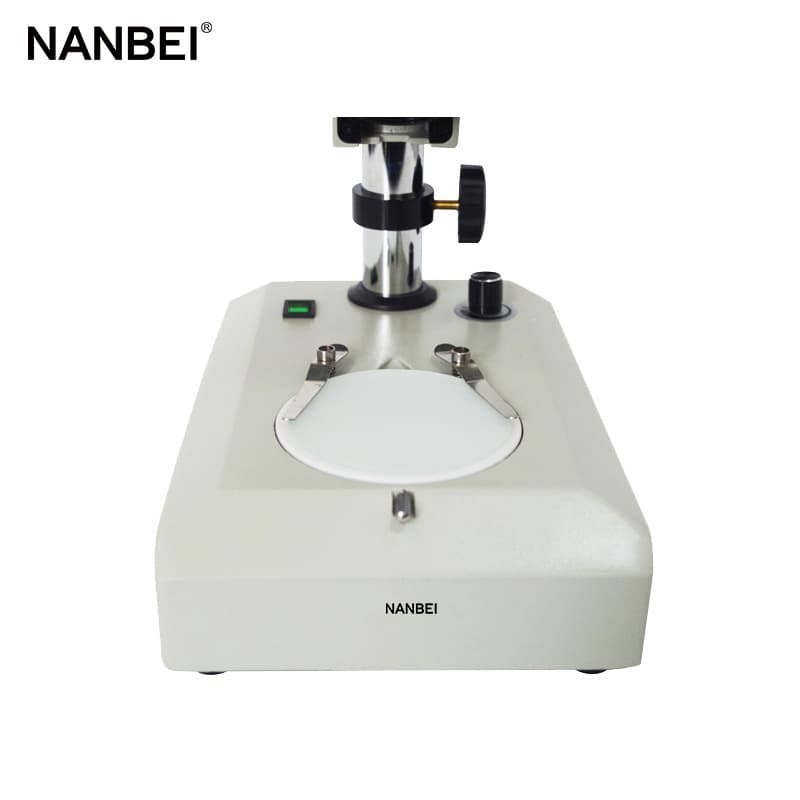

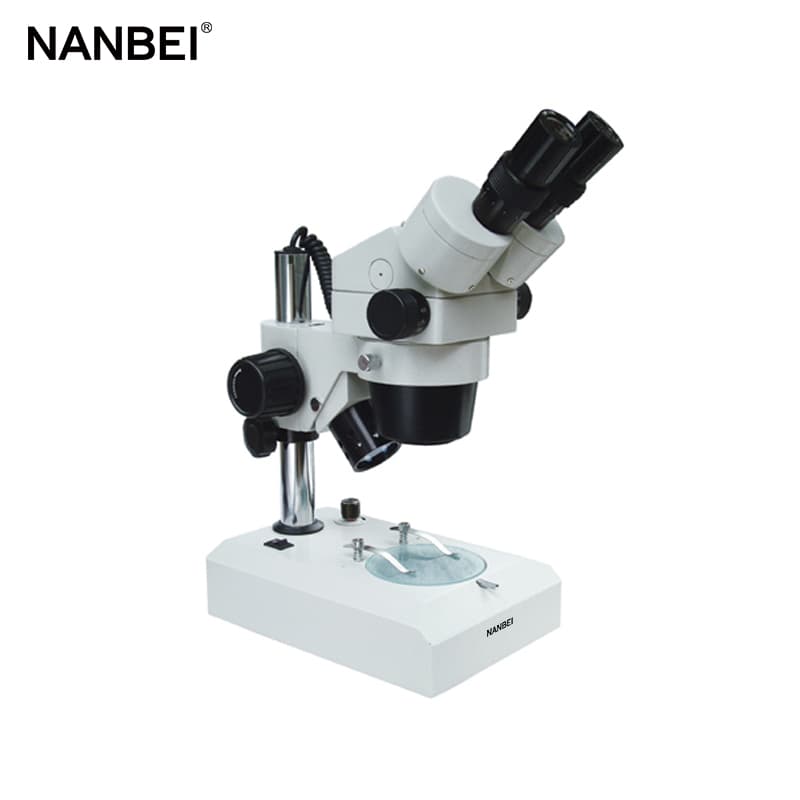

XT-300 Stereo Zoom Microscope

Brand:NANBEI

Model:XT-300

Application:

CONTACT NOW Chat Now

product details

XT-300 Stereo Zoom Microscope

Standard configurations

Objective zoom range	1X-2X 1X-3X 2X-4X
Eyepice	SWF 10X/23mm
Working distance	120mm
Interpupillary distance adjustment range	55mm-75mm
Binocular head	inclination of 45。
Diopter adjustment	±5 diopter
Optical Body Rotation 360。	360

Technical data

Auxiliary	Eyepiece	Magnification	Visual field	Working distance(mm)
1X,2X	10X	10X，20X	23，11.5	120
	15X	15X，30X	16，8
	20X	20X，40X	13，6.5
	25X	25X，50X	12，6
1X,3X	10X	10X，30X	23，7.6	120
	15X	15X，45X	16，5.3
	20X	20X，60X	13，4.3
	25X	25X，75X	12，4
2X,4X	10X	20X，40X	11.5，5.7	120
	15X	30.X，60X	8，4
	20X	40X，80X	6.5，3.3
	25X	50X，100X	6，3
1X,4X	10X	10X，40X	23，5.7	120
	15X	15X，60X	16，4
	20X	20X，80X	13，3.3
	25X	25X，100X	12，3
