PJ-3 Tablet Four-Usage Tester
PJ-3 Tablet Four-Usage Tester

PJ-3 Tablet Four-Usage Tester

Brand:NANBEI

Model:PJ-3

Application:

product details

Introduction:
It has four functions: detecting pharmic dissolution, disintegration, friability/abrasion and hardness of tablet.


Applicable standards:
National standard( Chinese codex ) /2010
Corporate standard (Dissolution tester) Q/12XQ0187-2010
Corporate standard (Disintegration tester) Q/12XQ0188-2010
Corporate standard(Tablet friability tester) Q/12XQ0189-2010
Corporate standard (Tablet hardness tester )Q/12XQ0186-2010


Features:
Intellectualized, auto-control, auto-test, auto-diagnose, auto-alarm.
The circular water current pumped by magnetism pump can heat the system equally, and the bath liquid can achieve an even temperature.
Temperature is high accurately auto-controlled.
Auto stop at timing point.
Parameters can be preset at any time, the preset and real data are displayed alternately in time.
It has three vessels and three poles arranged on one line. The head part of the instrument can be artificially turned over smoothly and flexibly.
Two disintegrations run synchronously. Auto stop at timing point.
High accuracy is achieved in testing rotary speed and counting friability.
The hardness has high accuracy press sensor and hardness data is displayed in Newton.
It tests tablet hardness continuously. The tablet is loaded and pressed artificially.
Auto-display, auto-memorize, auto-reset, auto-retest.


Specifications:
Temperature range (ambient to +39.9℃)±0.3℃
Speed range (20~200)rpm±2rpm
Automatic time range (1~900)min±0.5min
Stations of dissolution 3
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
basket assemblies 2
Nacelle back and forth frequency (30~32 )/ min
Nacelle back and forth range (55±2)mm
Drum 1
Drum’s size radius:Φ286mm depth: 39mm
Hardness range (2~200)N
Probe procession range (3~20)mm
Power 220V/ 50Hz/ 600W or 110V/ 60Hz/ 600W
Dimension (590×300×480)mm3



The other models we supply:

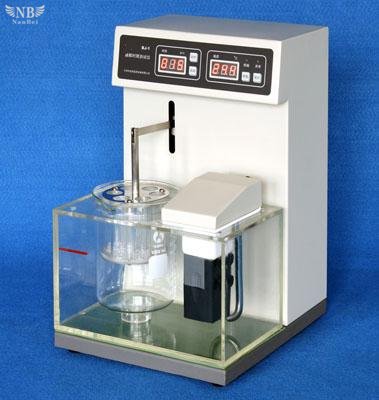

Disintegration tester

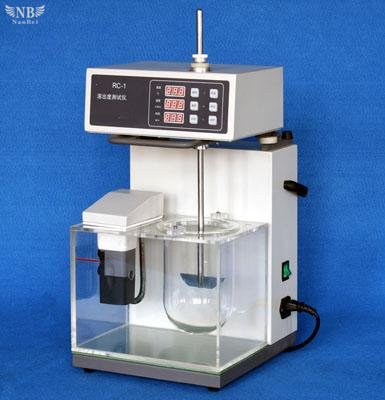

Dissolution tester

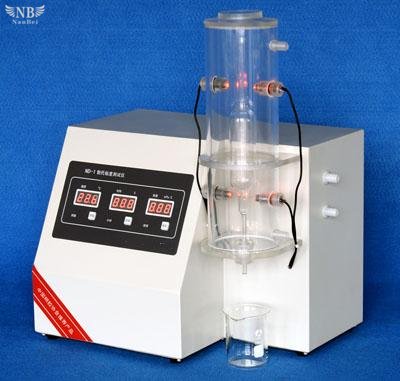

Transparency tester

bj3 disintegration tester

 pharmic dissolution tester



pharmaceutical transparency tester

Please click to details

Please click to details

Please click to details

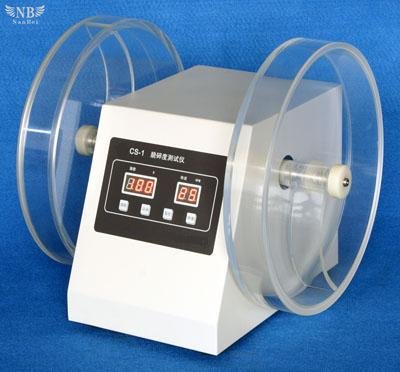

Tablet friability tester

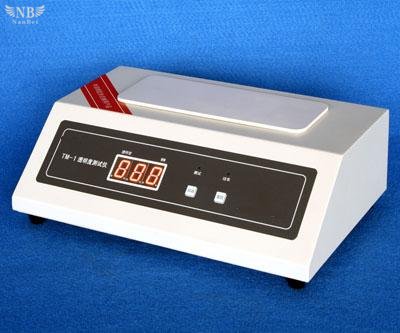

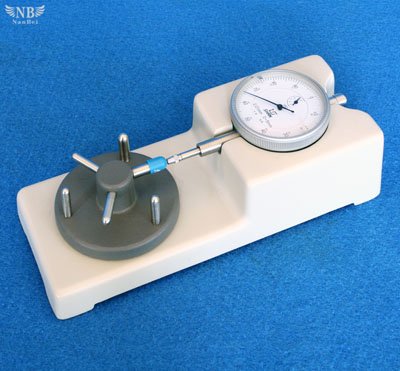

Tablet thickness tester

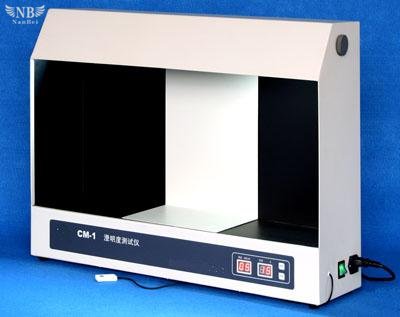

Clarify tester

 lab tablet friability tester

 medical tablet thickness tester

 liquid medicine clarify tester

Please click to details

Please click to details

Please click to details

Bloom viscosity testerTablet hardness tester

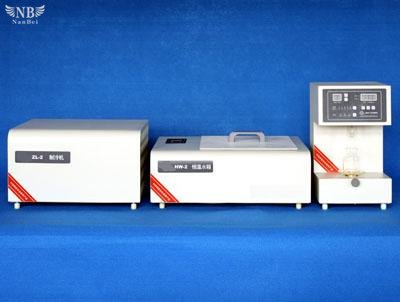

Gelatin strength tester

 gel bloom viscosity tester

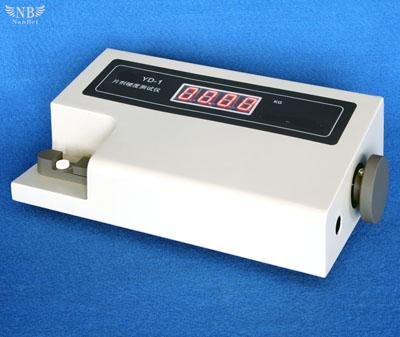

 manual tablet hardness tester
