LS-909 Laser Particle Size Analyzer

LS-909 Laser Particle Size Analyzer

Details:

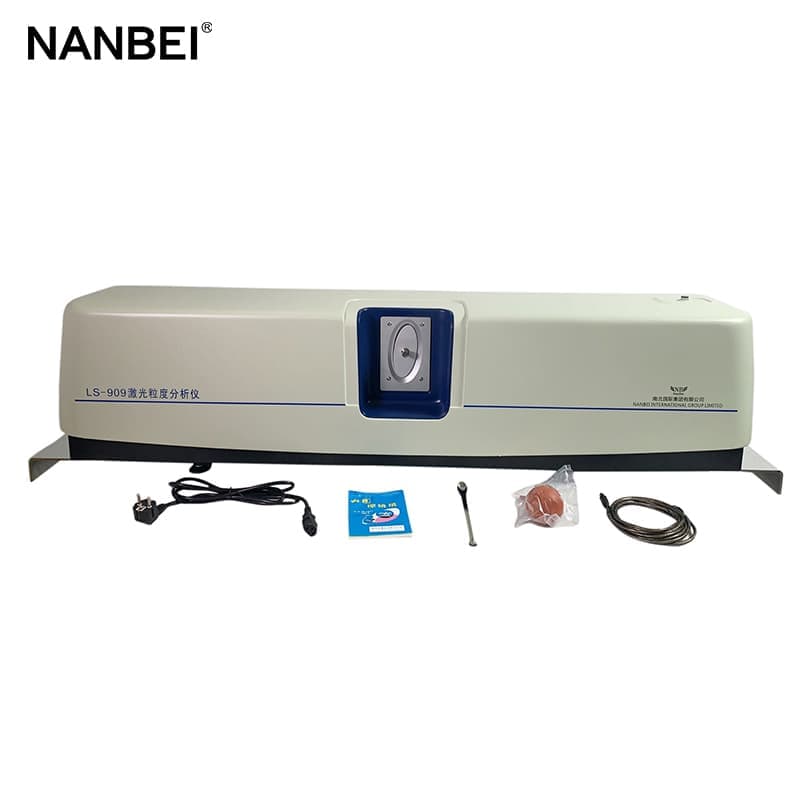

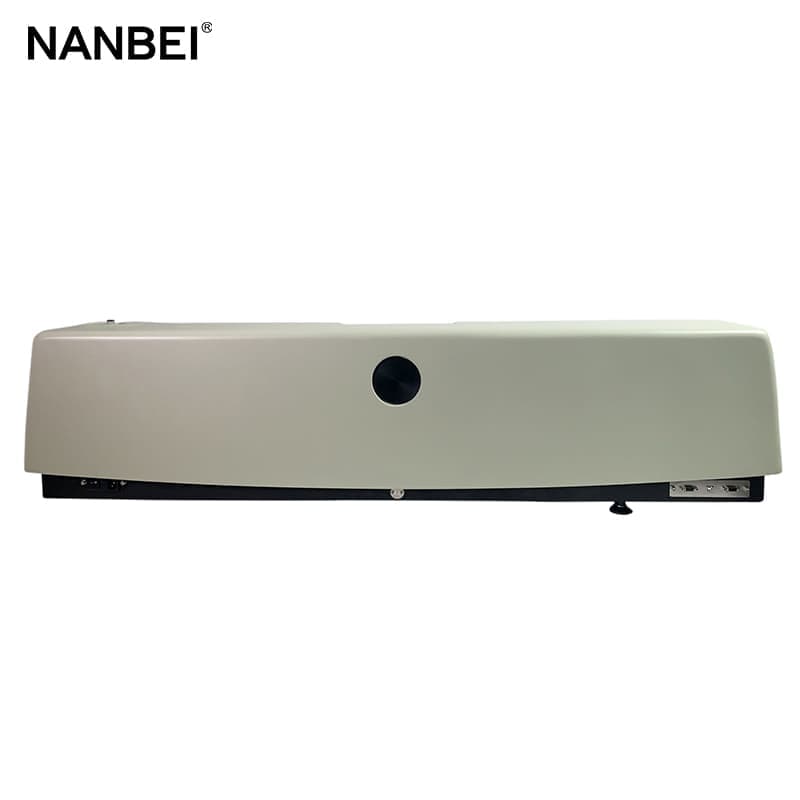

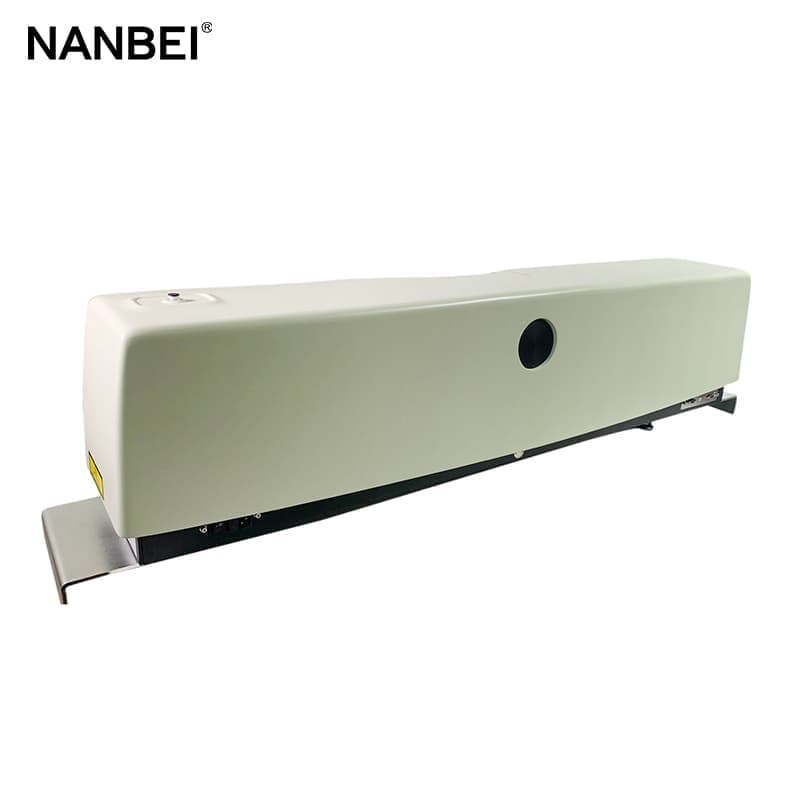

LS-909 is an excellent dry & wet laser particle size analyzer based on customers’ demands for high-performance instrument. LS-909 adopts international advanced long-focus optical detection system, optimized double backward & reverse scattered light detector array, upgraded ADC signal acquisition system and innovative self-adaption noise suppression algorithm combined with imported high-quality He-Ne laser emitter, which can satisfy the demands for wider-distribution particles’ measurement with high automation degree, large dynamic range, good reproducibility and resolving power. This instrument owns intelligent measurement & control analysis software, specialized user-defined measurement report templates, as well as easy operation of report browsing, report contrast and data export. Main engine, dry & wet sample feeding system of LS-909

Applications:

Measure the particle size distribution of samples have to be dispersed in liquid or of powders to be dispersed in gas. Theory: Light is an electromagnetic wave. When light meets with particles on it way of traveling, the interaction between light and particles will result in deviations of part of the light, which is called light scattering. The bigger the scattering angle is, the particle size will be smaller, the smaller the scattering angle is, the particle size will be bigger. The particle analyzer instruments will analyze the particle distribution according to this physical character of the light wave.

Specifications:

1. Theory: Mie scattering

2. Measuring Range: 0.02~2100μm(wet), 0.1~2100μm (dry)

3. Sample Feeding: wet/dry dispersion(automated circulating)

4. Repeatability: <1% (standard sample D50)

5. Alignment: intelligent automated alignment, accuracy: 0.2μm

6. Measurement Duration: 1-2 minutes

7. Detecting Channels: 91

8. Light Source: imported He-Ne laser, > 2.0 mW, wavelength: 0.6328 μm

9. Analog digital conversion (ADC): 18bit

10. Environmental Requirement:

Temperature: 5-35℃   Humidity:<85%

11. Report Items: Particle size distribution table & graph, Average diameter, Median diameter, SSA, etc.

12. Power supply: 200~240V AC 50Hz 80VA

13. Dimension(L X W X H):1320×340×360mm(mainframe)

1600×450×480mm (packaging)

Technical features

1. Reliable optical platform

2. Optimized single-lens optical path structure

3. High-performance imported He-Ne laser emitter

4. New design of spatial filter & the patent of integrated laser emitter

5. High-sensitivity photoelectric detecting array

6. Long-focus Fourier lens

7. Intelligent automated alignment

8. Advanced data collection and processing technology

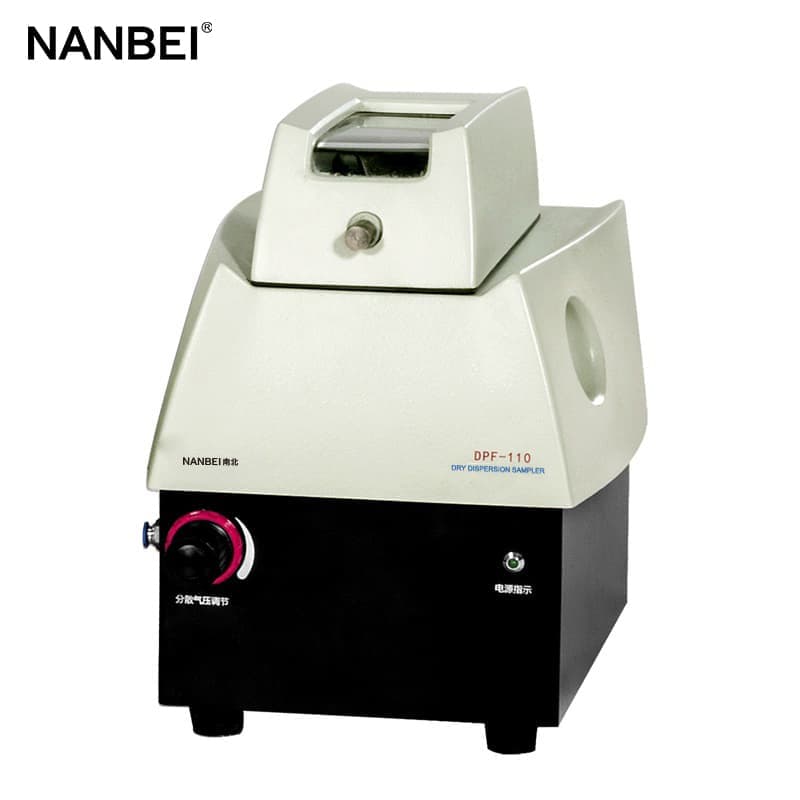

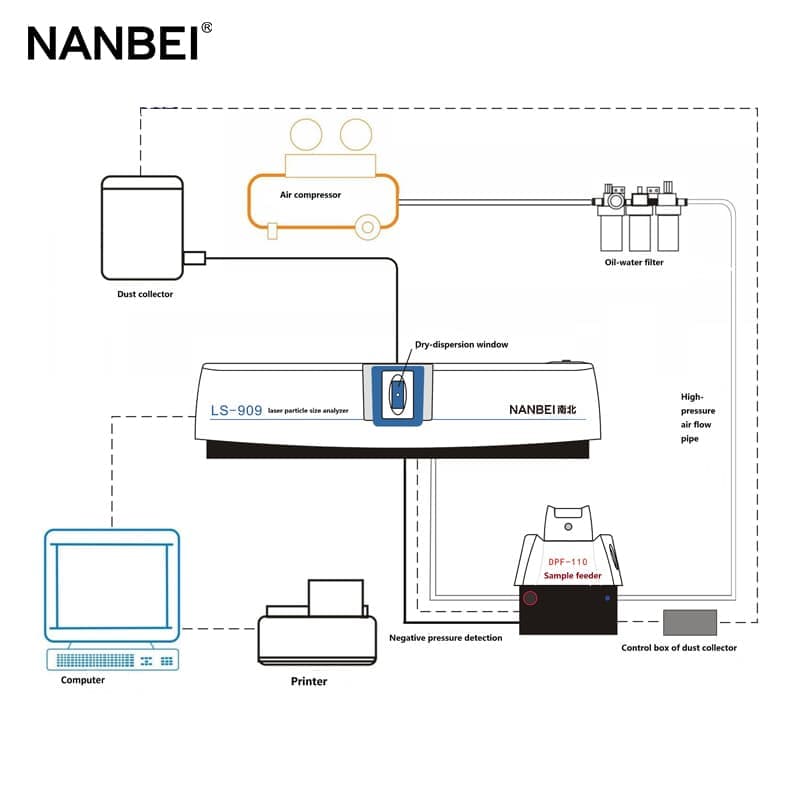

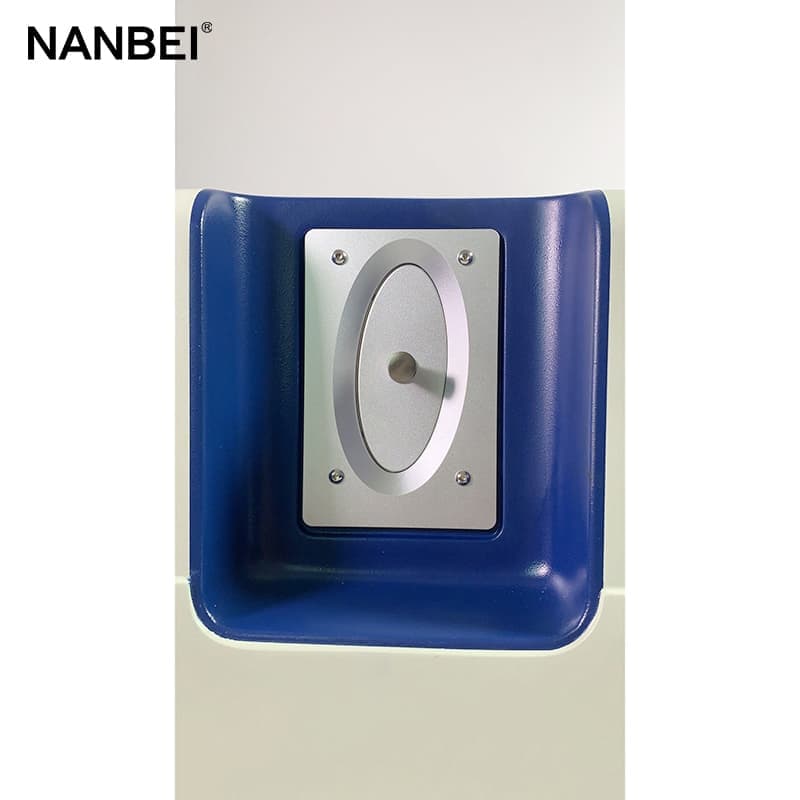

9. High-performance, easy-to-use dry-dispersion measurement system

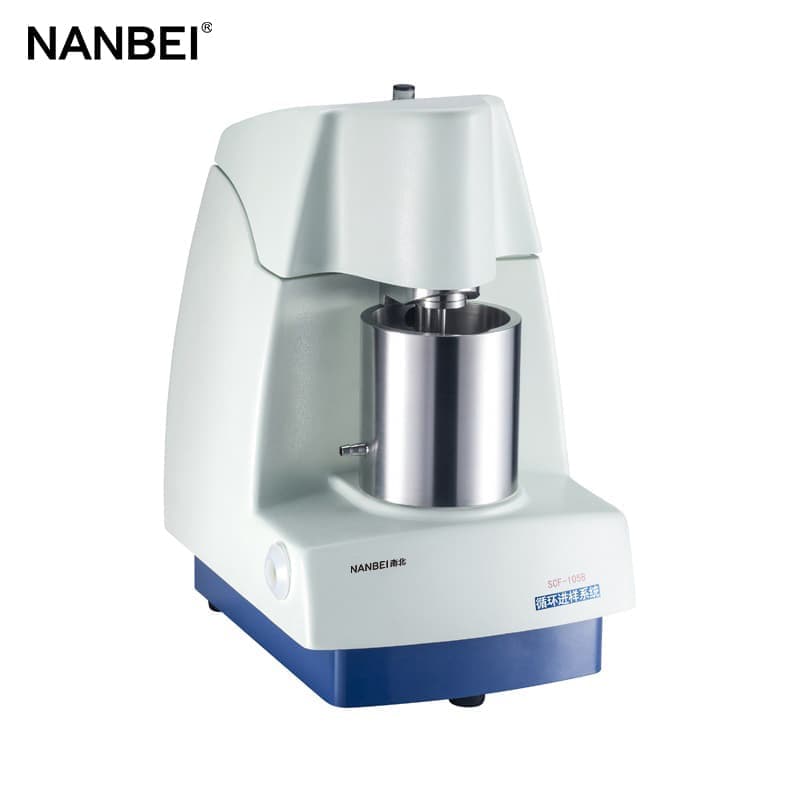

10. High-performance wet-dispersion circulating sample feeding system

11. Dual port for connecting sample feeders, intelligent quick switchover between dry and wet dispersion measurement

12. Friendly & practical software
