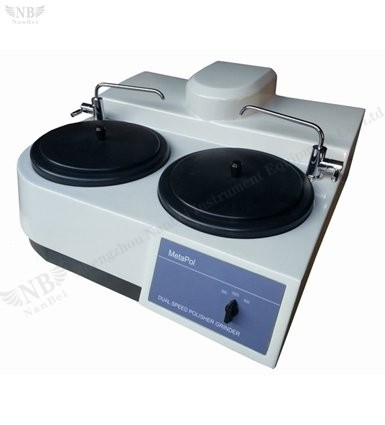

Metapol 2250D Dual Speed Metallographic Specimen Grinding & Polishing Machine

MODEL METAPOL 2250D DUAL SPEED

 METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE

Main Features:

The METAPOL 2250D dual speed grinding and polishing machine is the economical & practical instrument designed for metallographic specimen preparing. It can meet the demands of specimen preparing from customers very well.

This model is designed and manufactured as per international advanced specimen preparing technology. Equipped with beautiful appearance machine shell and full stainless steel parts which never rust.

Double working discs of 250mm. There are two-level constant speeds for working disc.  The working disc can be changed and replaced swiftly.

Technical Specifications

Electrical specifications: 3-phase, 380V

Working wheel: 10-inch (250 mm)

Motor power: 370W

Polishing base speed: 300 rpm and 600 rpm (150rpm and 300rpm optional)

Weight: Approx. 57 kg

Dimensions (L x W x H): 760 mm x 710 mm x 330 mm

Working temperature:  32° - 100°F (0 - 40°C)

Maximum part size: 1/3-diameter of working wheel

Optional Accessory

AUTOPOL 1000 polishing head
