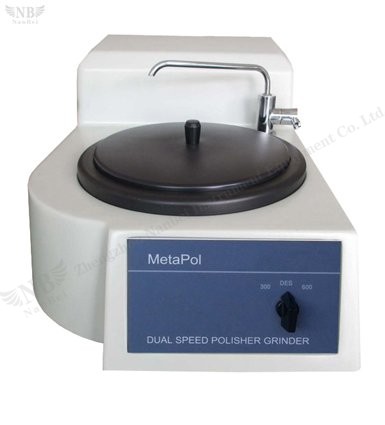

Metapol 1200D Dual Speed Metallographic Specimen Grinding & Polishing Machine

MODEL METAPOL 1200D DUAL SPEED

 METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE

Main Features:

*The METAPOL 1200D dual speed grinding and polishing machine is the economical & practical instrument designed for metallographic specimen preparing. It can meet the demands of specimen preparing from customers very well.

*This model is designed and manufactured as per international advanced specimen preparing technology.
*Equipped with beautiful appearance machine shell and full stainless steel parts which never rust.

*Single working disc of 200mm. There are two-level constant speeds for working disc.  The working disc can be changed and replaced swiftly.

Technical Specifications

Electrical specifications: 3-phase, 380V

Working wheel: 8-inch (200 mm)

Motor power:  370W

Polishing base speed: 300 rpm and 600 rpm (150 rpm and 300 rpm optional)

Weight: Approx. 36 kg

Dimensions (L x W x H): 710 mm x 430 mm x 330 mm

Working temperature:  32° - 100°F (0 - 40°C)

Maximum part size: 1/3-diameter of working wheel

Optional Accessory

AUTOPOL 1000 polishing head
