DM30 Series Black-White Densitometer_Nanbei Instrument Limited

product details

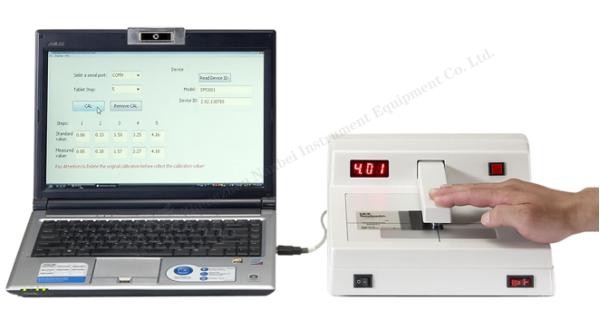

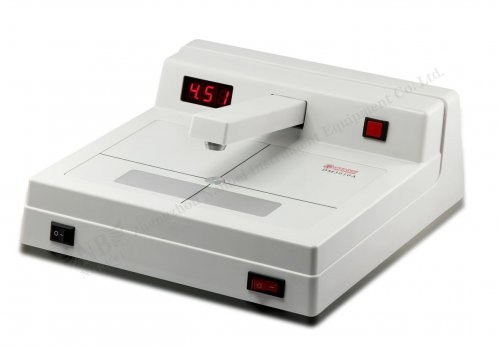

DM30 Series Black-White Densitometer

The DM3010 black and white densitometer has the use of computer tech quality products. It has a reading accuracy, good stability, appearance, convenient operation and a series of features. It can be widely used for non-destructive testing, printing, medical and other industries. Each instrument are random with density sheet used to verify the accuracy of the instrument.

Specification

Main Tech Data
Density Range	D=0.00—4.00 (DM3010) D=0.00—4.50 (DM3010A) D=0.00—5.00 (DM3011)
Repeatability	±0.01
Measuring Error	0.00—2.00 0.02 2.00—4.50 0.05 4.50—5.00 0.08
Power	50 ~ 60Hz, 220V ± 10%
Power Dissipation	25W
Aperture Size	Dia. 2mm
Display Mode	Three digital display
Sampling Time	0.8 s
Communication Port	RS232 Port
Software	DmCAL PC software
Working Environment	Temperature 0 ℃~40 ℃, Relative humidity≤85%
Dimension	260×265×110 （H×W×L）
Weight	2.1kg

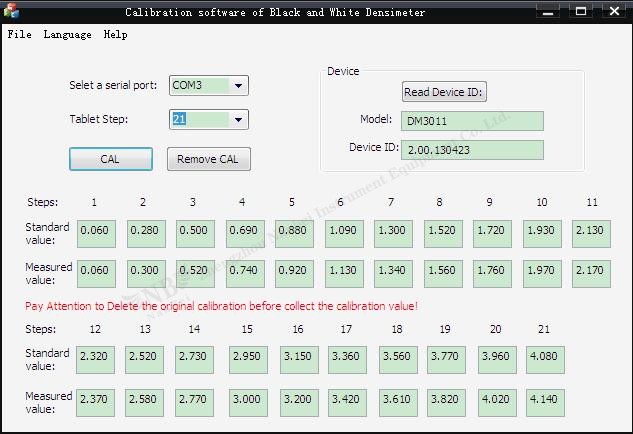

The Calibration Software Interface

Standard Configurations
DM30 Series Black-White Densitometer	Serial Port Cable
Standard Step Density Tablet	Software CD
Power Line	Quality Certification
Packing Case	Operating Manual, Packaging List
