Brinell Hardness Tester
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Product Details:

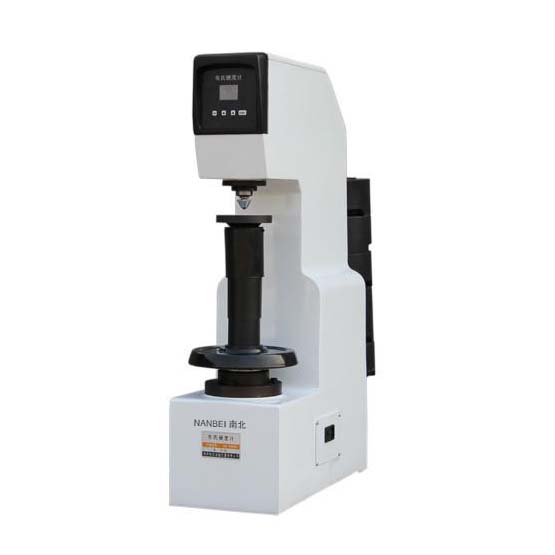

MODEL HB-3000B BRINELL HARDNESS TESTER
Feature & Use:
* Electronic reversing switch
* It's steady and reliable for testing of curved surface
* Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.
Specifications
Measuring range: 8-650HBW
Test force: 1838.8, 2415.8, 7355.3, 9807, 29421N (187.5, 250, 750, 1000, 3000kgf)
Max. height of test piece: 230mm
Depth of throat: 120mm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 700 x 268 x 842mm
Weight: approx. 210kg
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each
Brinell standardized block: 2 pcs.
20X Readout microscope: 1 pc.
