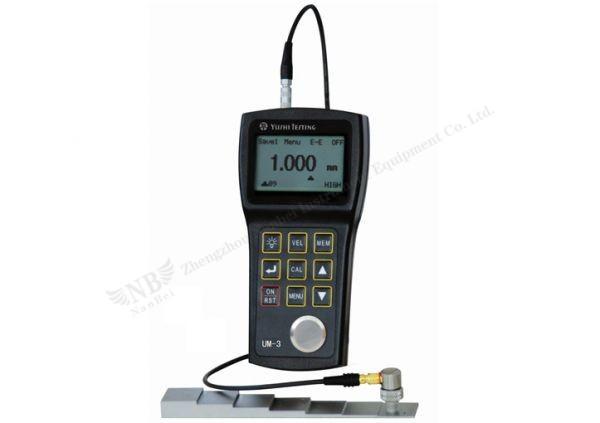

UM-3 Ultrasonic Thickness Gauge

Specifications and Accessories of UM-3 ultrasonic thickness gauge

Operating principle:

I-E (interface-echo) mode with single-crystal delayed probe

E-E (echo-echo) mode with single-crystal delayed probe

Measuring range:

1.5mm to 20mm in I-E mode

0.3mm to 10mm in E-E mode

Depending on probe, material and surface condition

Resolution:

H＜10mm : 0.001mm/0.01mm/0.1mm

H≥10mm : 0.01mm/0.1mm

Units:

Selectable: inch or mm

Display:

128×64 dot-matrix LCD screen with EL backlight (42mm×57mm)

Measurement update rate:

4 Hz

Material velocity range:

1000 to 9999 m/s

Power:

Two 1.5V AA alkaline batteries (Warning with low battery voltage)

Operating time:

Up to 200 hours (without backlight) with alkaline batteries, depending on operating mode

Auto shut-off:

After 5 minutes of non-use

Operating temperature:

-10℃ to +50℃(Specification to -20℃/-4℉ on request)

Size:

149mm×73mm×32mm (H×W×D)

Weight:

200g; 7oz (including batteries)

Data logger capacity:

Up to 500 readings can be divided into a maximum of 5 files (user-selectable)

Operating language:

English and Chinese

Application software:

UMVIEW

Interfaces:

Serial RS 232C port in combination with a communicative cable;

Standard package:

UM-3 thickness gauge

Standard probe (single-crystal delayed probe)

Carrying case

Two 1.5V AA alkaline batteries

Couplant

Operating manual

Certification of quality

Packaging list

Optional Accessories:

Attachable Rubber Sheath

Application software with Data transmission cable
