WS-200YDC 200L Horizontal Cylindrical Steam Sterilizer
WS-200YDC 200L Horizontal Cylindrical Steam Sterilizer

WS-200YDC 200L Horizontal Cylindrical Steam Sterilizer

Brand:NANBEI

Model:WS-200YDC

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

product details

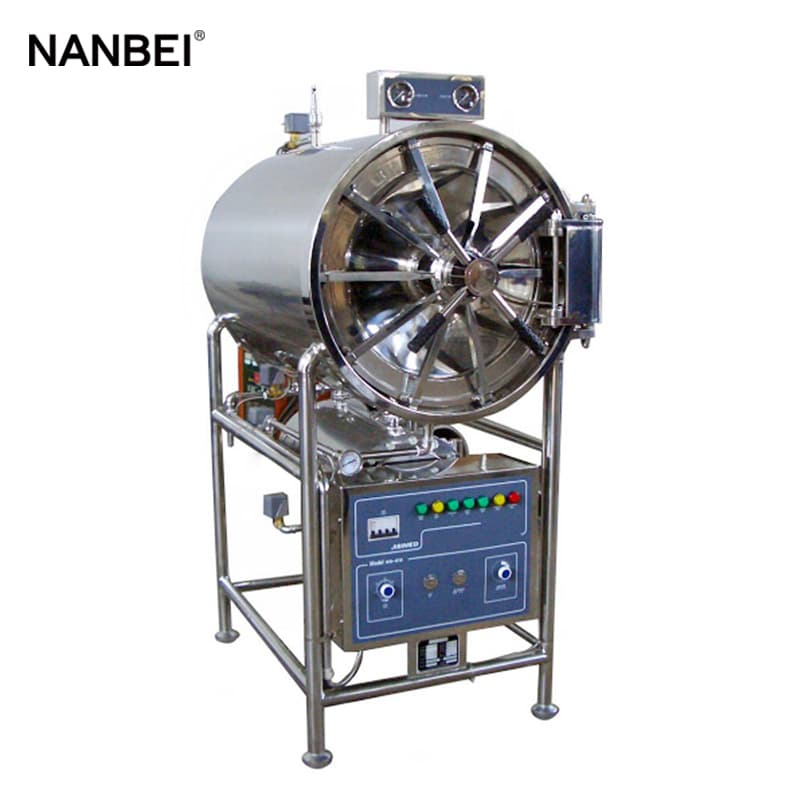

Horizontal cylindrical pressure steam sterilizer


Characteristics:
1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

7. Fully stainless steel structure.


Technical data:

Technical data

WS-150YDC

WS-200YDC

WS-280YDC

WS-400YDC

Sterilizing

chamber

Volume

150L

φ440×850mm

200L

φ515×1000mm

280L

φ600×1000mm

400L

φ700×1100mm

Working pressure

0.22MPa

Working

temperature

134℃

Adjustment of temperature

40℃- 134℃

Time of sterilization

0-99 min

Time of drying

0-99 min

Heat average

≤±2℃

Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

18KW/380V 50Hz

Dimension(mm)

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830

Transport dimension(mm)

1550×750×1850

1560×820×1850

1680×920×2100

1600×1050×2100

 G.W/N.W

320/240 KG

350/260 KG

465/365 KG

530/420 KG
