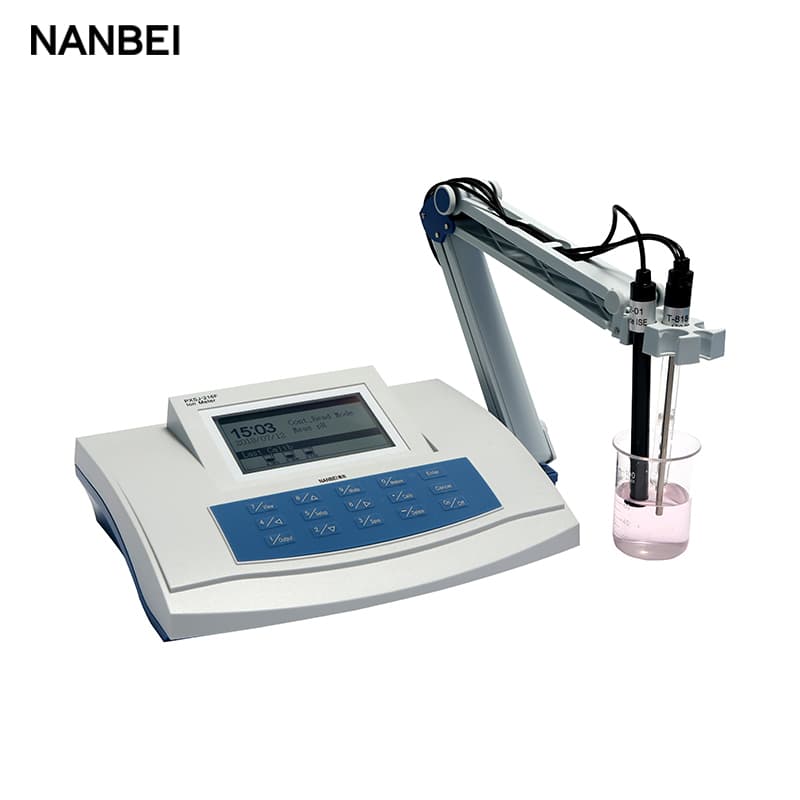

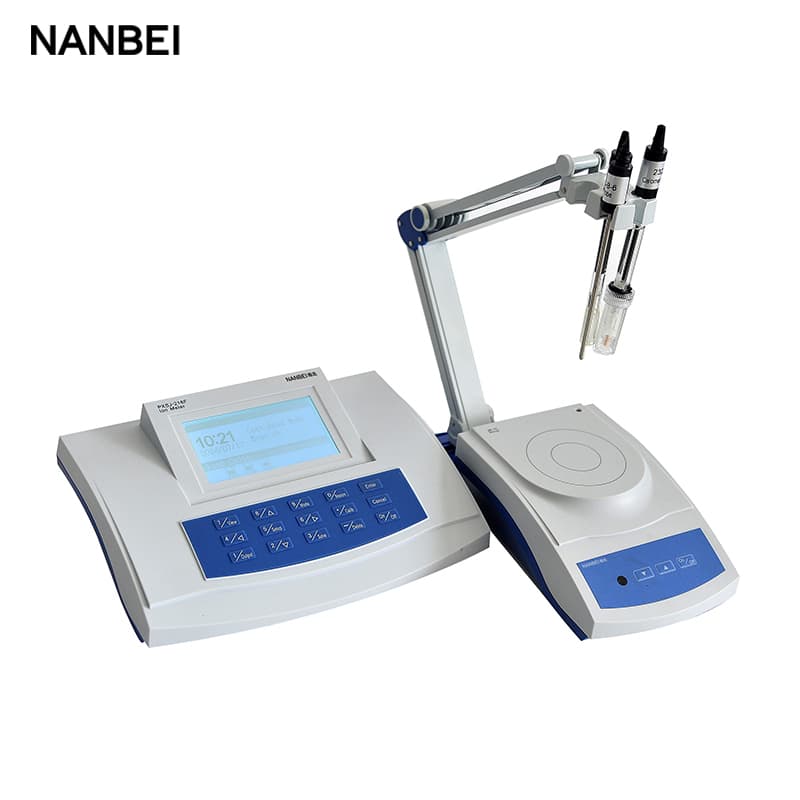

PXSJ-216F Ion Meter

PXSJ-216F Ion Meter

Functions:

1.It can measure pH/pX, ion concentration, potential and temperature.

2.It adopts dot-matrix LCD and light touch keys. Power-failure protection function.

3.It can recognize several pH buffers which meet with GB, NIST and DIN standard. Up to 5 points can be calibrated. It has automatic temperature compensation function.

4.It supports the switch between various concentration units.

5.It supports several ion modes such as H+, Ag+, Na+, K+, NH4+, Cl-, F-, NO3-, BF4-, CN-, Cu2+, Pb2+, and Ca2+ . The user can also set up specific ion mode.

6.It provides several ion concentration measurements including direct reading of concentration, standard addition mode, sample addition mode and GRAN mode.

7.It supports three measuring modes including continuous mode, timed reading mode and auto-lock reading mode which meet with different requirement.

8.It can delete, view and print data. Up to 200 sets of pH data, 100 sets of six ion data and 100 sets of concentration data can be saved.

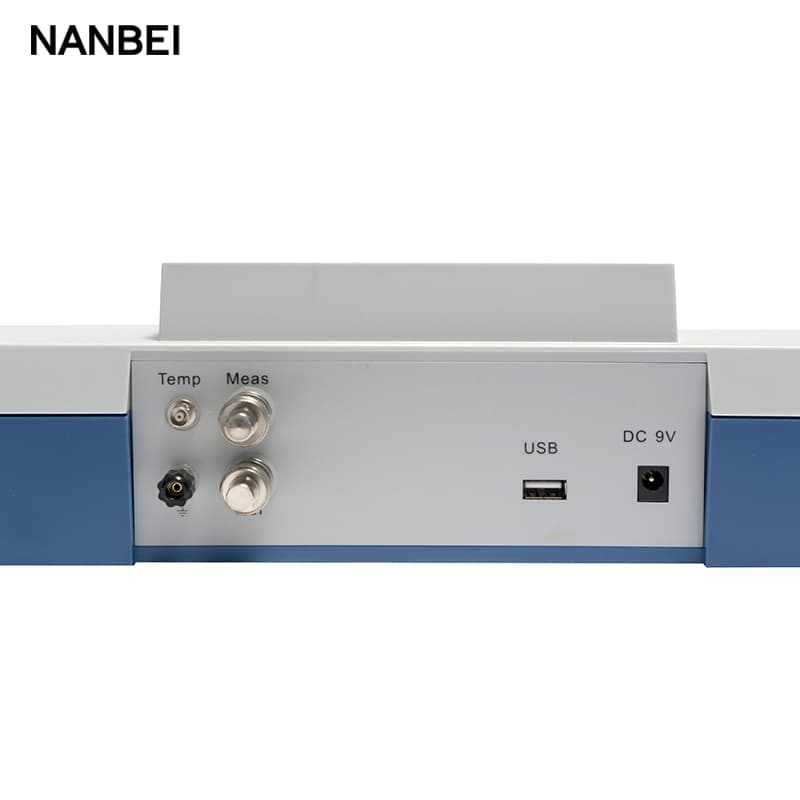

9.It has USB interface. If matched with specific communication software, the meter can be connected with computer.

Specifications:

Accuracy grade:0.001

1.Measuring range:

pH：-2.000pH～20.000pH；

pX：0.000pX～14.000pX；

mV：-1999.9mV～1999.9mV；

Ion concentration: (0～1999.0), units: ug/L, mg/L, g/L, mol/L, mmol/L

Temperature: (-5.0～110.0)℃

2.Resolution:

pH/pX：0.001pH/pX；

mV:0.1mV；

Temperature: 0.1℃

3.Accuracy:

pH/pX：±0.002pH/pX；

mV：±0.03%FS；

Ion concentration：: ±0.3%；

Temperature: ±0.1℃。

4.Input impedance: >1×1012Ω

5.Manual/automatic Temperature compensation range:（0.0～60.0）℃

6.Power supply: DC adapter (9V DC,800mA, inside positive and outside negative)

7.Size（mm）：280×215×92

8.Weight: 2kg

9.Case serial No.:WXS-A010-3

Package Size: 370X310X340mm

Gross Weight: 4kg
