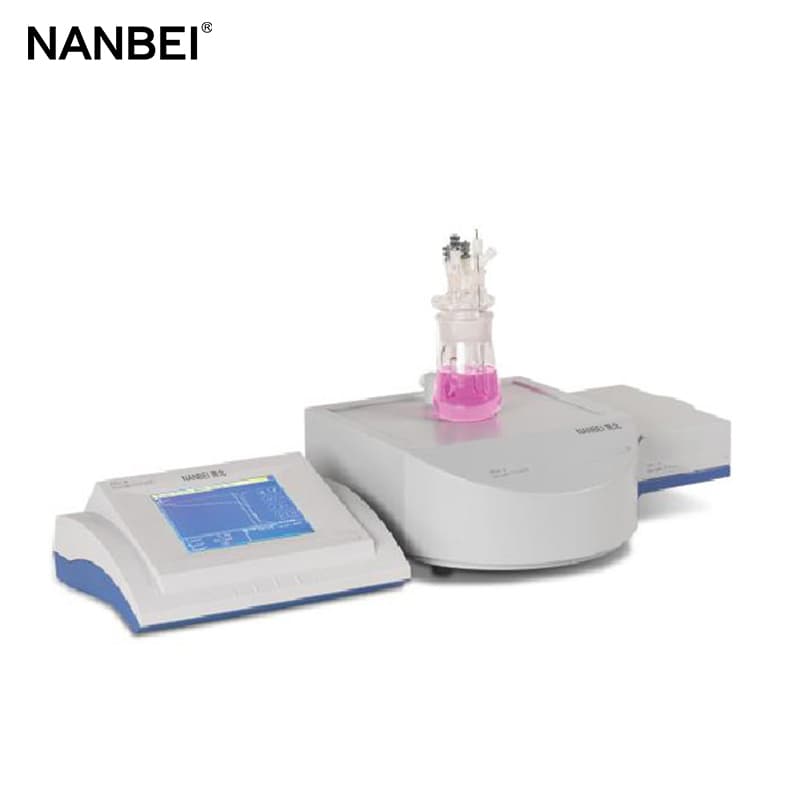

ZDJ-5 Coulomb Titrator

ZDJ-5 Coulomb Titrator

Instrument functions:

1. LCD touch screen, English operation interface and modular design

2. It can store titration curve and data.

3. It has RS-232 bi-directional port and has power failure protection function.

4. It can be connected with TP-16,TP-24 andTP-40 printer. Also, it can print measuring data, titration curve and calculation results.

5. It uses specific titration software to achieve replacement of control device by computer, to display titration curve and measuring data online. Also, It functions as titration modes editing, calculation, storage of titration curve, database dealing and statistics.

Specifications:

1、  Measuring range

mV： (-1999.9～1999.9)mV

Electrolyte current：1、10、50mA

2、  Electrolyte current Accuracy:

±0.25％(reading)。(the maximum load is 500Ω )

3、  The repeatability of titration analysis:

≤0.5％(the minimum is 3s)

4、  Power: AC (220±22)V，(50±1)Hz

5、  Dimension(mm)：360×300×300

Weight：10kg
