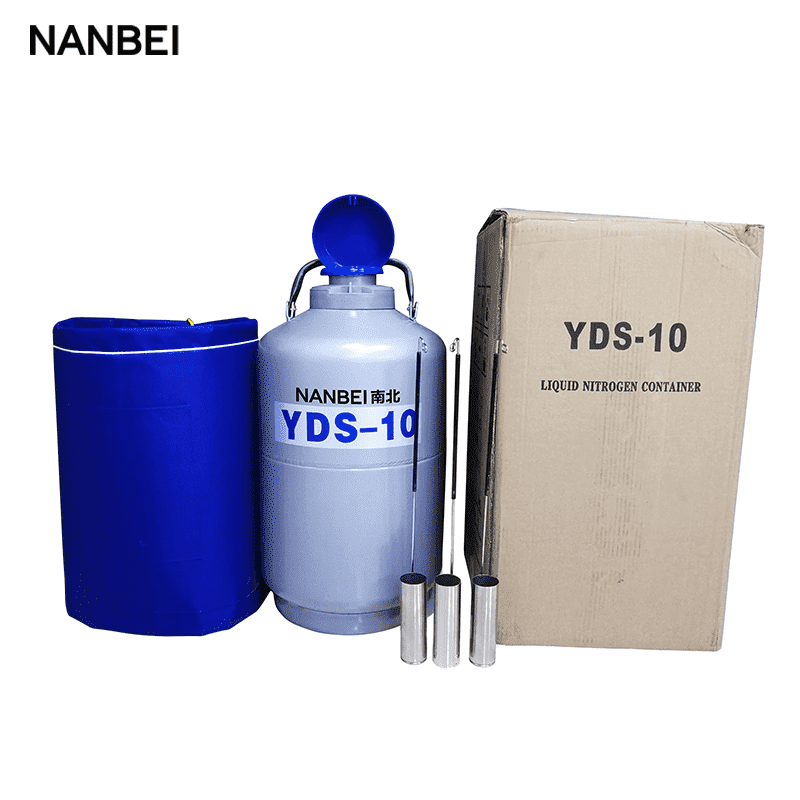

Large-diameter Type Liquid Nitrogen Tank
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI

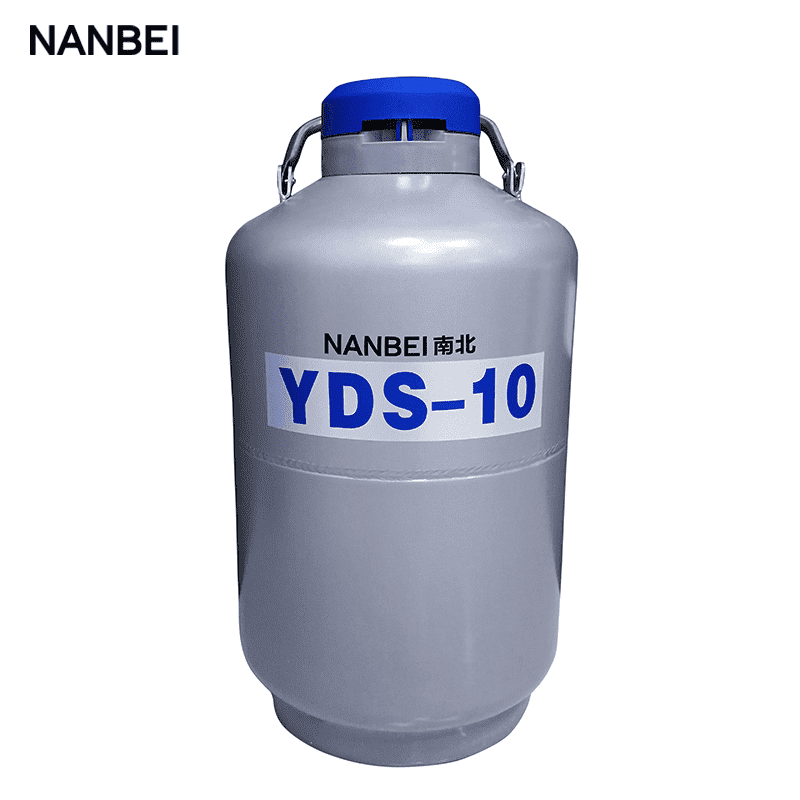

Model:YDS-10-80
Application:Animal husbandry artificial insemination,medical hygiene career,biological engineer,Indutrial cold assembly,metal material cold processing,low temperature crush and super conductivity
Liquid nitrogen tank divided into the following types, please choose the right model
1. Storage-type Liquid Nitrogen Biological Containers
2. Large-diameter liquid nitrogen biological containers
3. Transport-type liquid nitrogen biological caontainer
4. 50 Liters liquid nitrogen biological containers

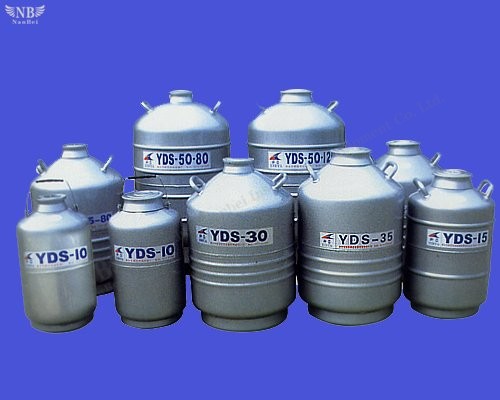

Large-diameter liquid nitrogen biological containers

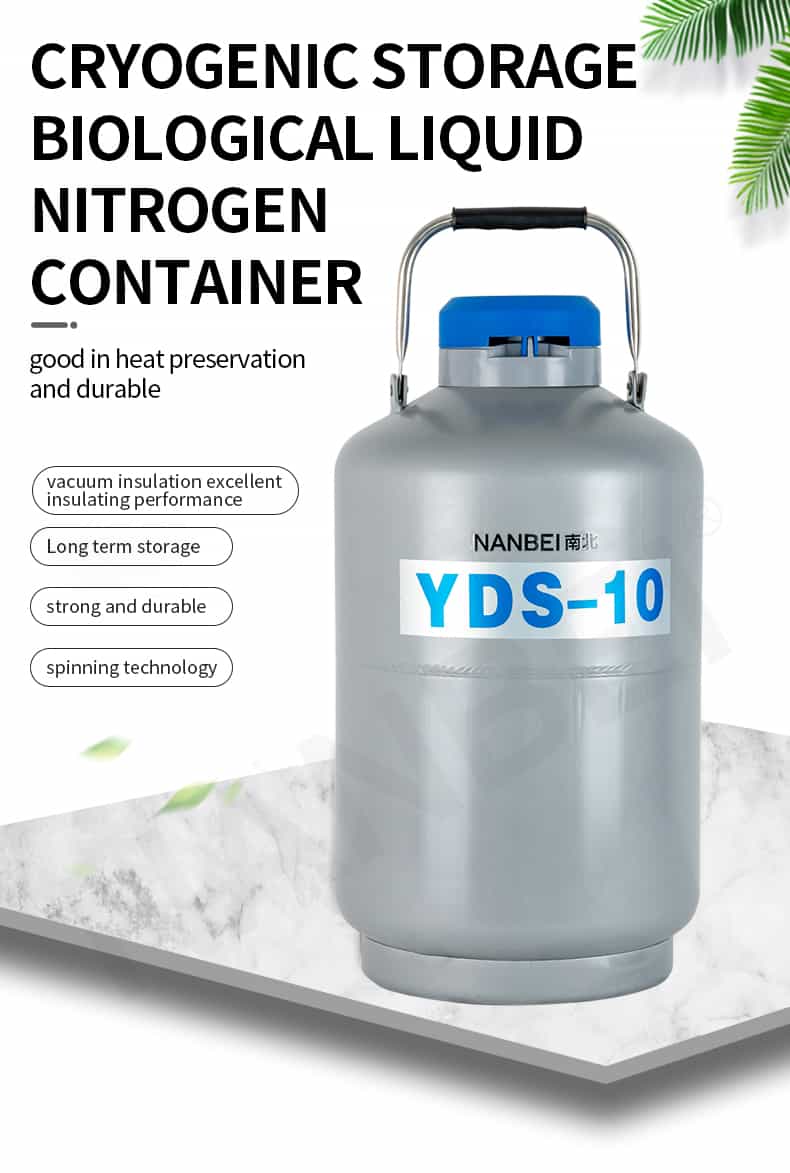

The series product has the characteristics of relatively large diameter for the short-term preservation of liquid nitrogen, a large volume of short-term presevation of biological speciments, or the use of liquid nitrogen to the cold parts of a larger assembly. Conservation of biological medicine in the vaccines, bacteria, cell, as well as people, animals and other organs. With a larger caliber, the advantages of easy to operate.
1.The use of high-strength aluminum air.
2. Can be used to put a drawer-style tube, to facilitate identification and access to independent samples.
3. It is equipped with protective cover, can avoid the bump in the use, impact.
4. Can be stored, and animal organs. Larger parts of the cold assembly.
5, High vacuum multi-layer insulation designed to provide a vacuum of not less than five years of quality assurance.
Parameters:
Model | Volume (L) | Neck diameter ≤mm | External Diameter ≤mm | Height ≤mm | Net weight ≤kg | Liquid stored time(days) | Liquid evaporation（L/day） | ||
B | A | B | A | ||||||
YDS-10-80 | 11.2 | 80 | 305 | 550 | 6.3 | 48 | 57 | 0.250 | 0.200 |
YDS-10-125 | 11.2 | 12.5 | 305 | 550 | 6.3 | 25 | 32 | 0.400 | 0.300 |
YDS-10-210 | 11.2 | 210 | 305 | 550 | 7 | 13 | 18 | 0.700 | 0.600 |
YDS-15-125 | 16 | 125 | 365 | 600 | 9 | 42 | 53 | 0.400 | 0.300 |
YDS-30-80 | 32 | 80 | 446 | 670 | 14.5 | 147 | 174 | 0.260 | 0.220 |
YDS-30-125 | 21 | 125 | 446 | 670 | 14.6 | 90 | 112 | 0.371 | 0.300 |
YDS-30-80 | 32 | 210 | 446 | 670 | 16 | 40 | 50 | 0.700 | 0.600 |
YDS-35 | 35.5 | 80 | 446 | 695 | 17 | 159 | 187 | 0.250 | 0.200 |
YDS-35-125 | 35.5 | 125 | 446 | 695 | 17 | 95 | 125 | 0.374 | 0.309 |
YDS-50B-80 | 50 | 80 | 500 | 850 | 22 | 147 | 189 | 0.400 | 0.300 |
YDS-50B-125 | 50 | 125 | 500 | 850 | 22 | 110 | 134 | 0.476 | 0.400 |
YDS-50B-210 | 50 | 210 | 500 | 850 | 22 | 50 | 60 | 1.000 | 0.833 |
YDS-60B-210 | 60 | 210 | 560 | 900 | 32 | 63 | 74 | 1.000 | 0.851 |
Liquid nitrogen biological containers accessories

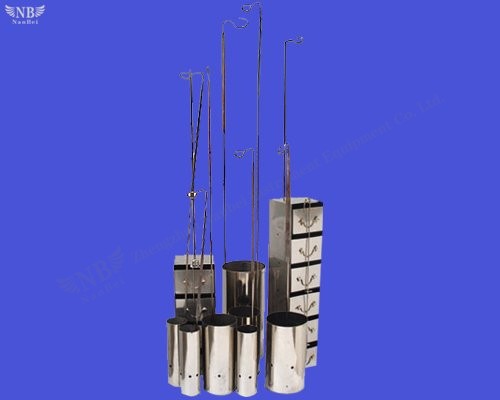

1.Canister:
Made by stainless steel,designed for access to sample much more easier and safe.It can be numbered and easy to identify,has cylinder type,square type.The multi-layer square canister designed for biological instifutes, the design of the hospital store.

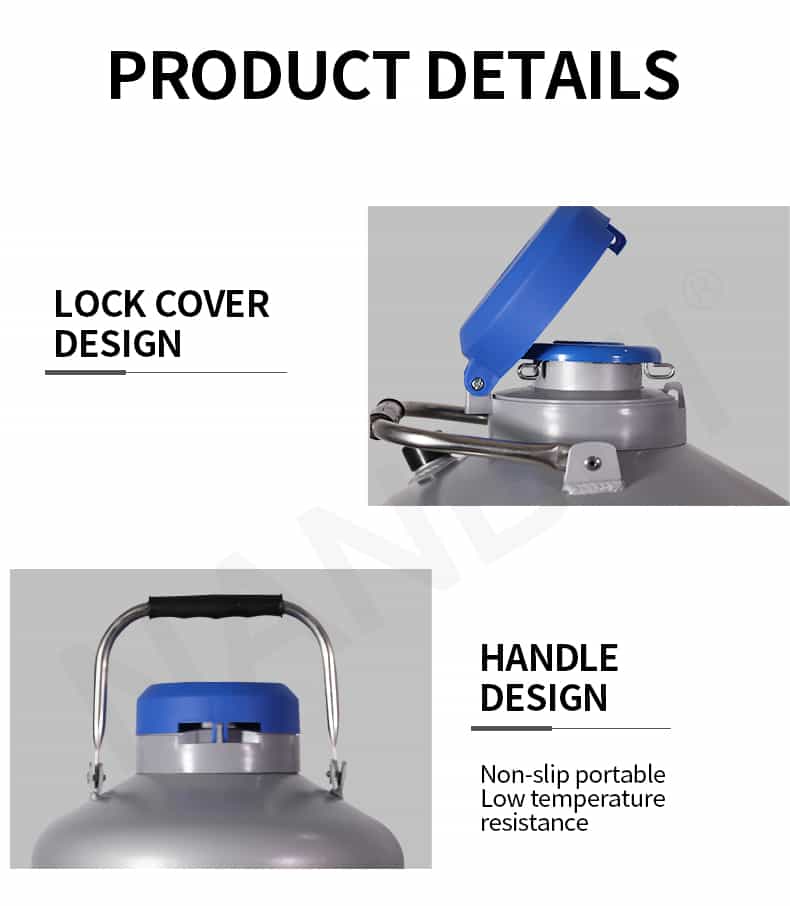

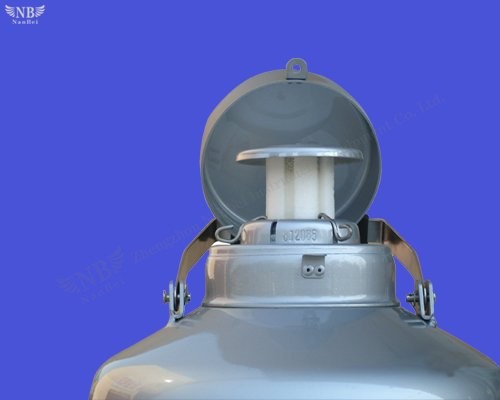

2.Locked cover:
1.made by high-strong alluminum alloy.
2.Have advantages of anti-corrosion,low temperature resistance,provent from frost crack and frozen collapse.
3.Combined with up and down flip cover,lock is optional for customer, which is good for biological specimen inside safety storage and manage.

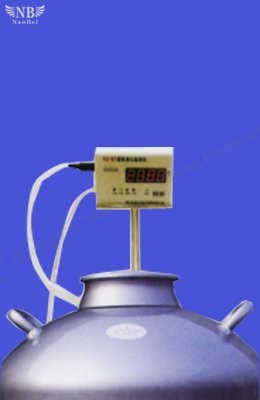

3.Liquid level alarm:
Automatically monitoring biological samples temperature, when the temperature over the range of temperature controlled,sound and light alarm, ensure the safety of stocked samples. Adjustable temperature control range of products 0-196℃, Resolution 1℃.

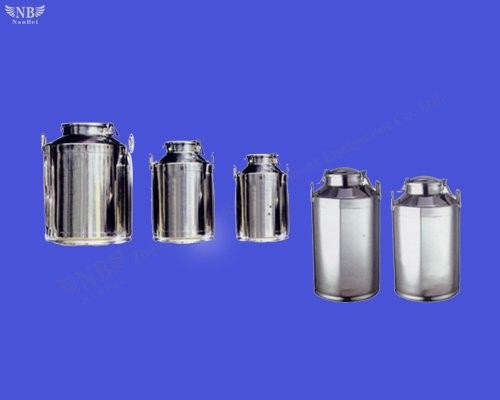

4.Stainless steel storage with milk barrels:
This series product adopt stainless steel production, suitable for storage of liquid milk and transportation, short-term operation relatively large caliber. With nice appearance, the intensity is high, easy to clean thoroughly and reliable sealing advantages.
1.Full stainless steel products, high strength and durability
2.Milk barrels outside surface uses the polishing treatment, concise and easy.
3.The pail inside surface grind arenaceous technology adopted, easy to clean thoroughly.
4.Barrel used for sealing, foodstuff rubber ring with health and safety requirements.
