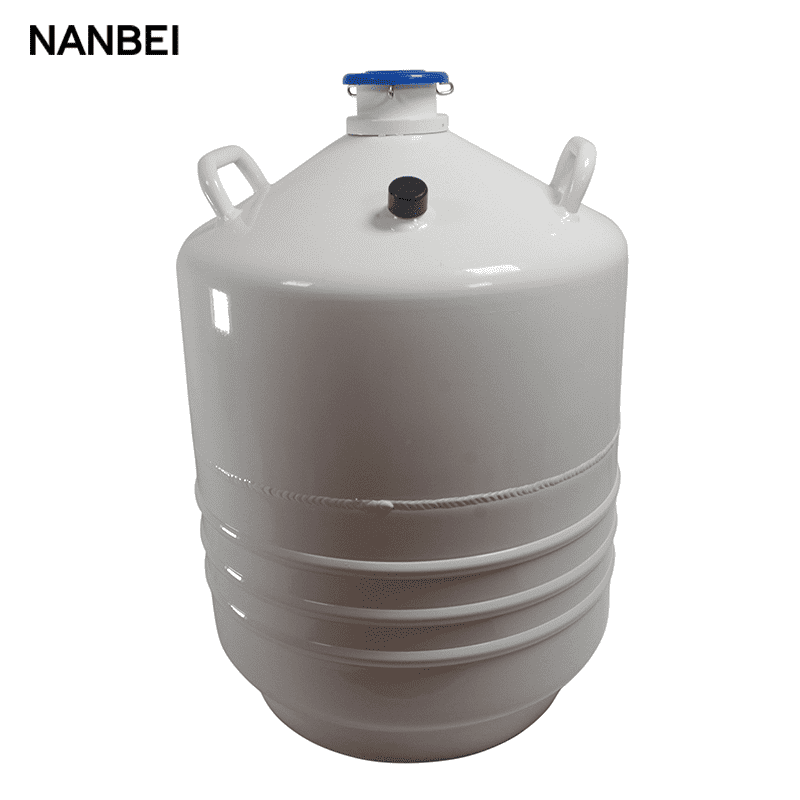

Transport-type Liquid Nitrogen Tank
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI

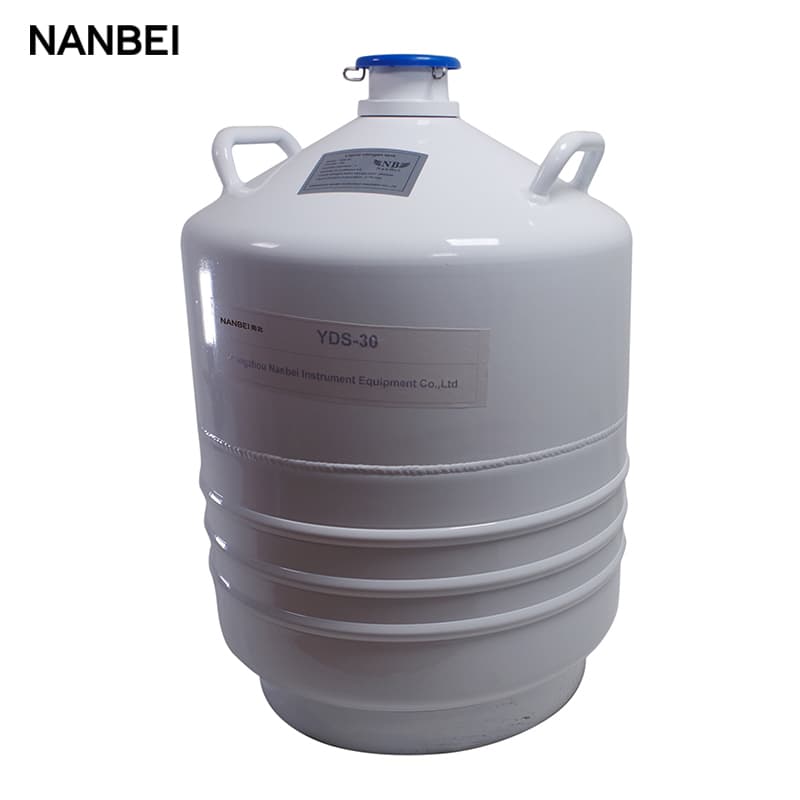

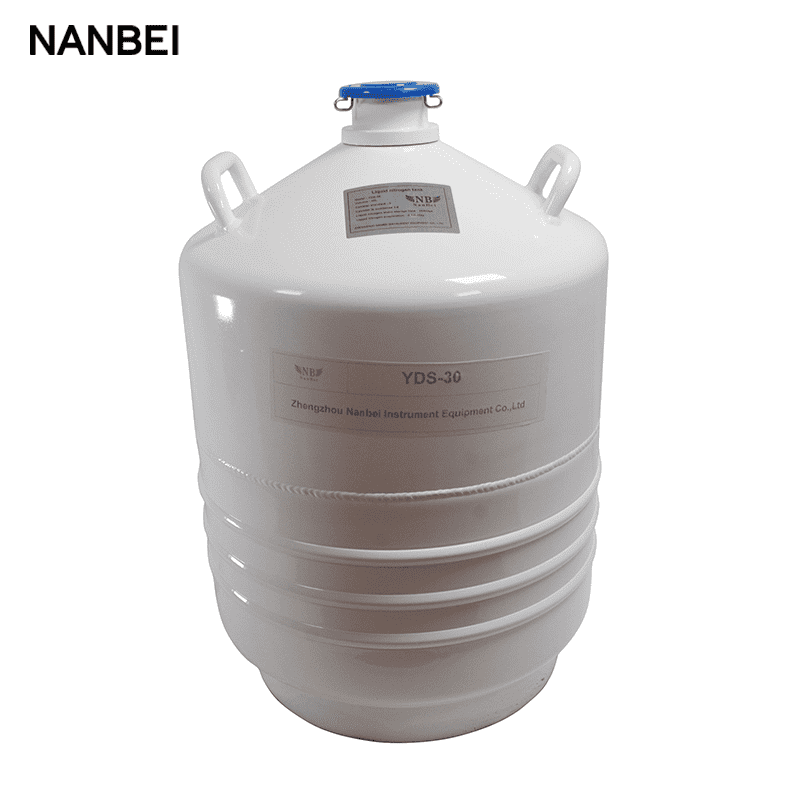

Model:YDS-30B
Application:Suitable for long distance biological samples refrigerated transport
Liquid nitrogen tank divided into the following types, please choose the right model
1. Storage-type Liquid Nitrogen Biological Containers
2. Large-diameter liquid nitrogen biological containers
3. Transport-type liquid nitrogen biological caontainer
4. 50 Liters liquid nitrogen biological containers

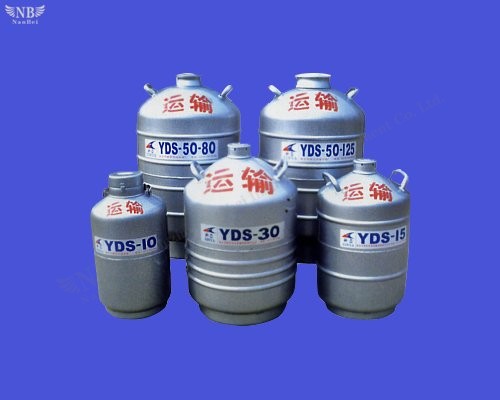

Transport-type liquid nitrogen biological caontainers
The family of products is the need for manual transfer or transport of biological samples in liquid nitrogen, especially in mountainous areas, grasslands and the design of the user. With a compact and lightweight, easy to carry. Static evaporation of liquid nitrogen on low, the use of economic advantages.
1. The use of high-strength aluminum alloy air standards(GBn168-82) manufacturing, therefore light weight products.
2. The products are tailor-made earthquake structure, sturdy and durable, not easily damaged.
3. Cylinders can be numbered to facilitate identification of the storage of samples.

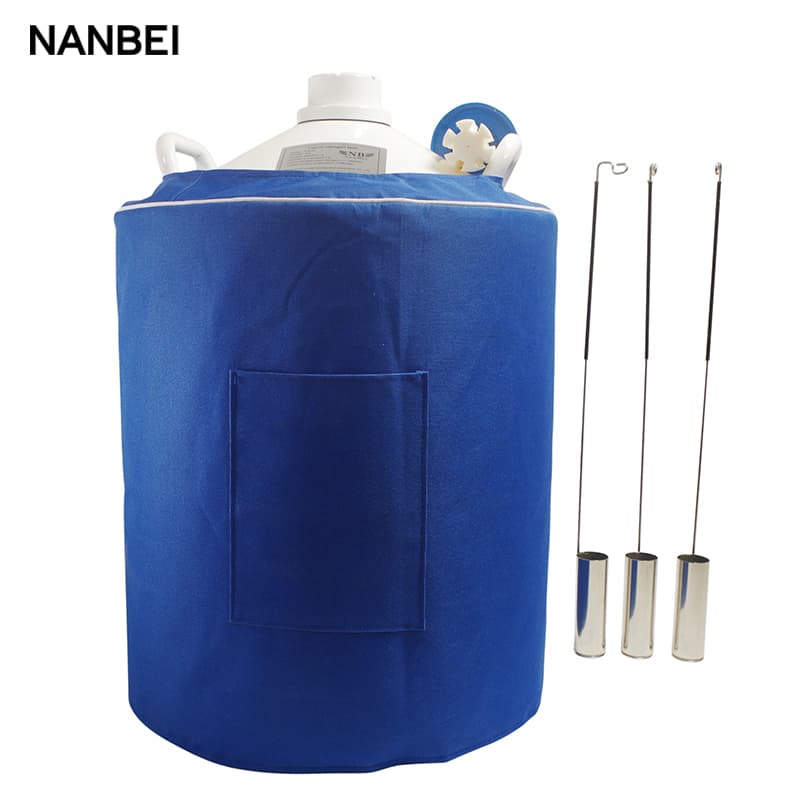

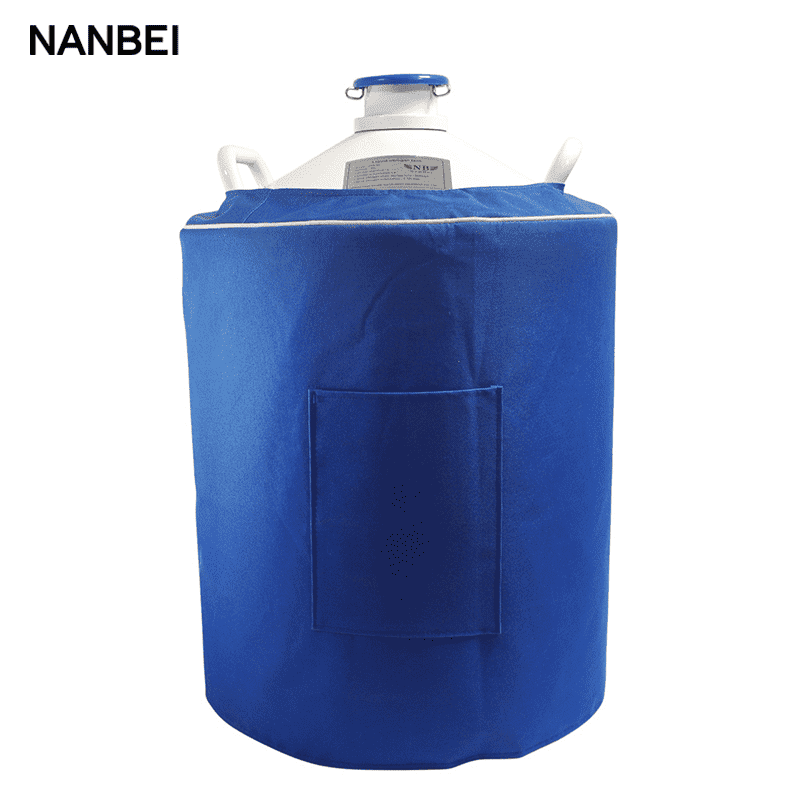

4. With a set of products to protect and prevent the use of products in the bump, bruises.
5. Product key parts neck tube, thermal conductivity at low temperature low, high mechanical strength, color, beautiful, easy to identify.
6. Products from the high vacuum multi-layer insulation designed to provide a vacuum of not less than five years of quality assurance.
Parameters:
Model | Volume (L) | Neck diameter ≤mm | External Diameter ≤mm | Height ≤mm | Net weight ≤kg | Liquid stored time(days) | Liquid evaporation（L/day） | ||
B | A | B | A | ||||||
YDS-10B | 11.2 | 50 | 305 | 550 | 6.5 | 52 | 64 | 0.208 | 0.172 |
YDS-15B | 16 | 50 | 365 | 600 | 9 | 65 | 85 | 0.208 | 0.172 |
YDS-30B | 32 | 50 | 446 | 670 | 14.5 | 159 | 191 | 0.24 | 0.2 |
YDS-35B | 35.5 | 50 | 446 | 695 | 16 | 179 | 215 | 0.223 | 0.187 |
YDS-50B-80 | 50 | 80 | 500 | 850 | 22 | 147 | 189 | 0.400 | 0.33 |
TDS-50B-125 | 50 | 125 | 500 | 850 | 22 | 110 | 134 | 0.476 | 0.4 |
TDS-60B-210 | 63 | 210 | 560 | 900 | 32 | 63 | 74 | 1.000 | 0.851 |
Liquid nitrogen biological containers Accessories

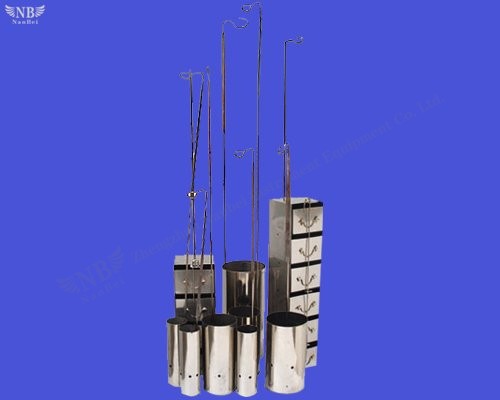

1.Reference tube:
The use of stainless steel manufacture, the middle by the low-temperature-resistant glass made of glass cloth wrapped to prevent conduction of liquid nitrogen, get the convenience. The series products are multi-layer tube to a square stainless steel box, designed for biological instifutes, the design of the hospital store.

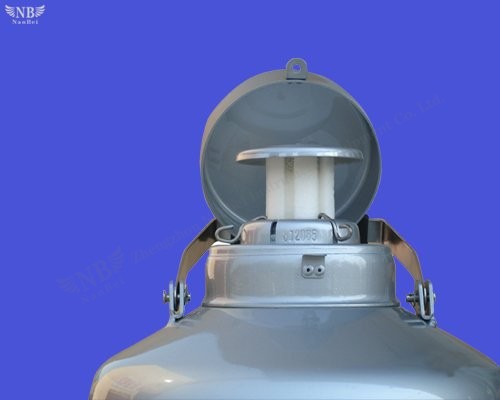

2.Cover lock:
a. The use of high-strength aluminum
b. With anti-corrosion resistance, low temperature of liquid nitrogen to prevent Frost Crack, the advantages of cold collapse.
c. By the next filp the clamshell and is composed of two parts, the user can lock(lock the other purchase by the user). In favor of biological sample storage containers to preserve the security and management.

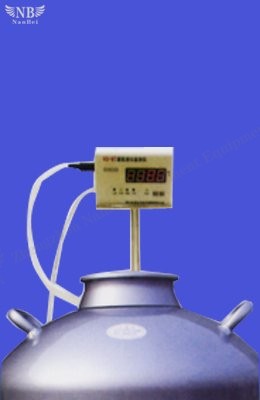

3.Liquid level alarm:
Automatically monitoring the storage of containers of biological samples when the temperature over the range of temperature control for sound, light alarm, ensure the safety of storage of samples. Adjustable temperature control range of products to 0-196℃, a resolution of 1℃.

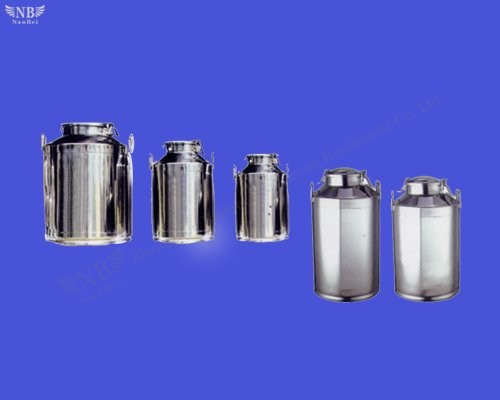

4.Stainless steel storage with milk barrels:
This series product adopt stainless steel production, suitable for storage of liquid milk and transportation, short-term operation relatively large caliber. With nice appearance, the intensity is high, easy to clean thoroughly and reliable sealing advantages.
1.Full stainless steel products, high strength and durability
2.Milk barrels outside surface uses the polishing treatment, concise and easy.
3.The pail inside surface grind arenaceous technology adopted, easy to clean thoroughly.
4.Barrel used for sealing, foodstuff rubber ring with health and safety requirements.
