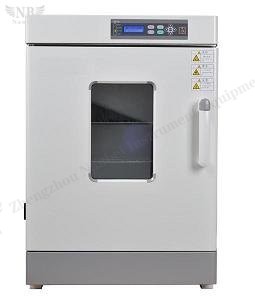

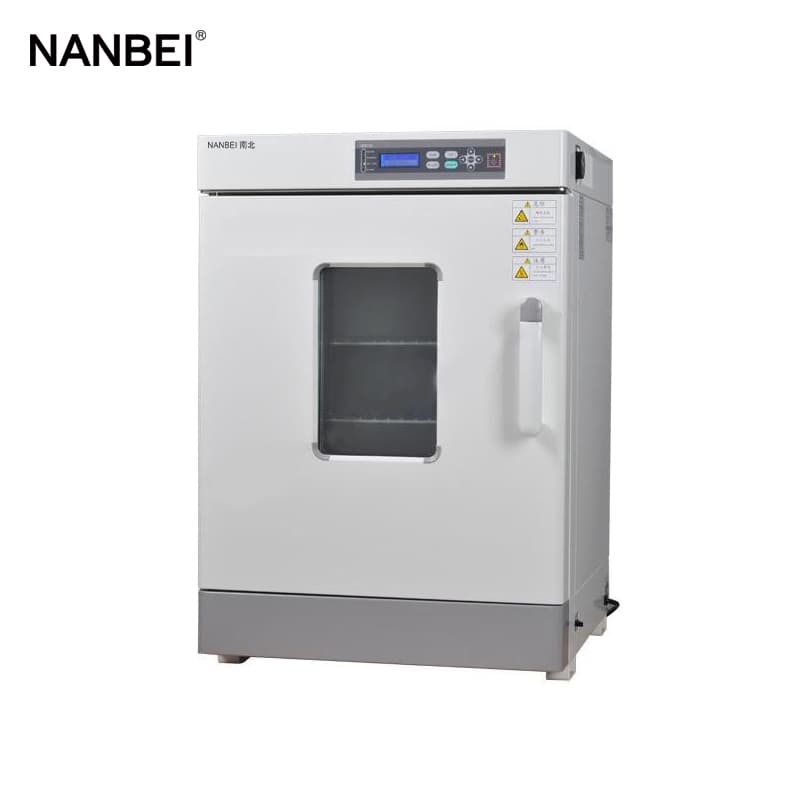

BAO-250A Precision Forced Convection Oven

BAO-250A Precision Forced Convection Oven

1. Airduct structure

It applies circular airflow design concept and forced convection simulated air circulation principle to guarantee high even and stable inner bag temperature.

2. Independently adjustable temperature safety device

Temperature safety device can be adjusted according to demand to protect the system in two ways, thus to increase the safety coefficient.

3. High precision temperature sensor

HONEY WELL PT100 three-core high precision sensor with little error is applied to inspect the internal temperature correctly.

4. Imported electric motor

Imported MEISTER electric motor with low noise and small amplitude of swing that is resistant to high temperature and high humidity is applied to guarantee the evenness of temperature inside the incubator.

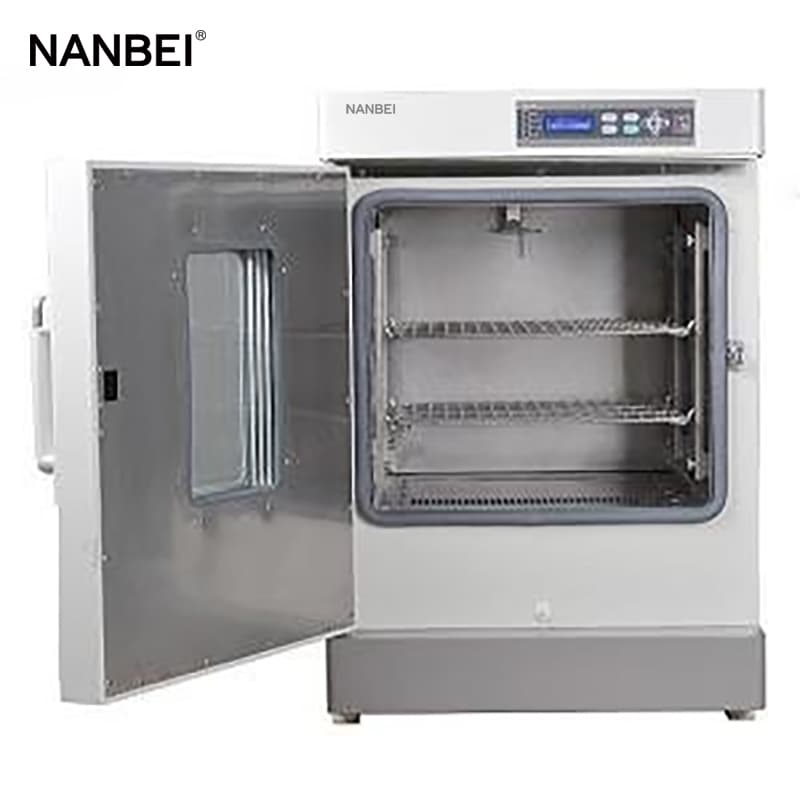

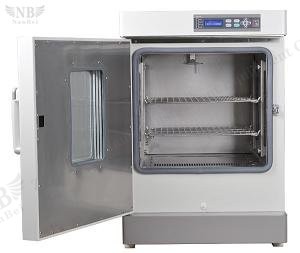

5. Movable partition

The partition height can be adjusted according to demand to be more humanized.

6. High temperature resistant door switch

The fan stops instantly when the door is open, in order to prevent the sudden drop in temperature.

Application scope: The product is applied for the drying, baking, disinfecting and sterilization by scientific research institutions and enterprise labs.

Features:

◆ The inner bag applies SUS304 stainless plate. The outside body is made with high quality cold rolling plate numerical control technology and is sprayed with customerized Dupont powder to make the appearance more beautiful.

◆ Main parts are imported from foreign countries (special electric motor, control system, sensor, creepage protector and sealing ring...etc.).

◆ The most advanced heat insulating technology and insulating material are applied to keep the temperature inside incubator unchanged for a long time and realize the purpose of energy conservation and environmental protection.

◆ Bottom heating, unique airduct structure and various perfect configurations are applied to guarantee the evenness, fluctuation, velocity of temperature rise and drop, fully circulate the air inside the incubator and effectively guarantee the evenness of temperature.

◆ The imported creepage protector and over temperature protector with standard configuration make the product more humanized.

◆ The incubator applies the most advanced PID control, menu operating interface, intelligent programmed control system, intelligent alarm system, high brightness LCD, integrated super little control plan to make the temperature control more accurate and authentic.

Product parameters:

■Performance parameter test under empty load: Ambient temperature of 20℃, ambient humidity of 50%RH.

■The change of product appearance and parameter will not be notified additionally. Product appearance may deviate due to shooting and printing reasons.

Tips: Do not run for a long time when the temperature is above 210℃.
