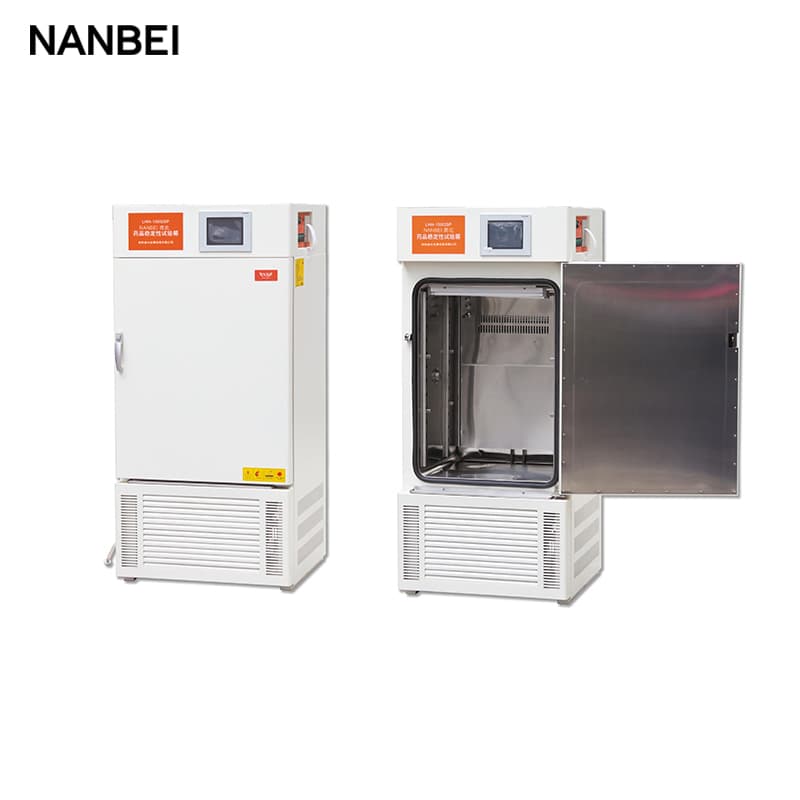

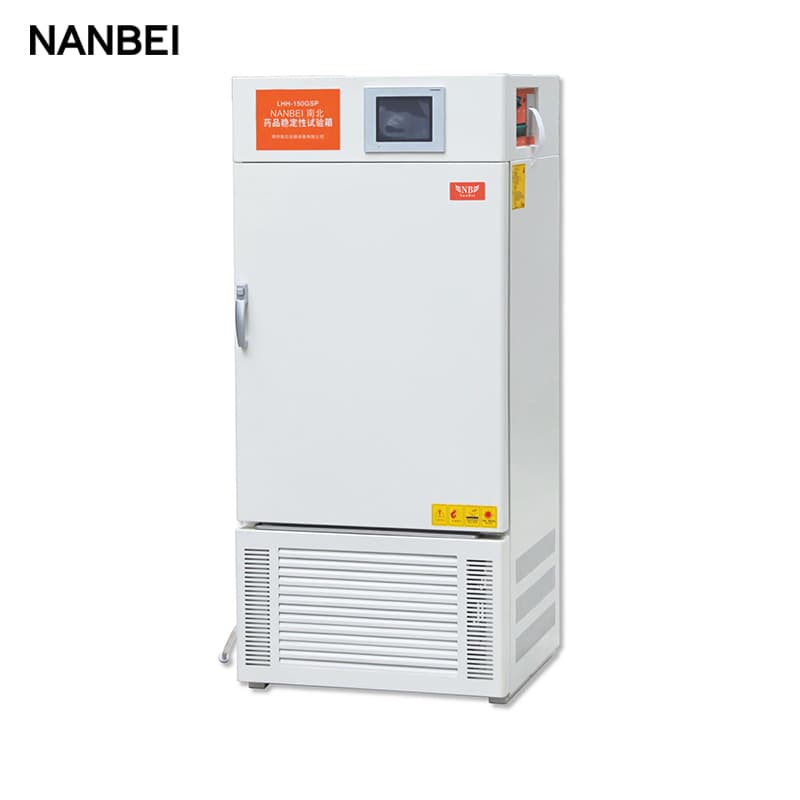

Medicine Stability Testing Chamber
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:LHH-250SD
Application:
LHH series medicine stability test box/general medicine stability test box
Summary:
Adopt balance temperature and humidity adjusting method, select imported unclosed industrial compressor, humidity sensor, touch-screen programmable controller (1-99 sections), recorder etc for deploy medicine stability test box, they are stable, safe and reliable
Features:

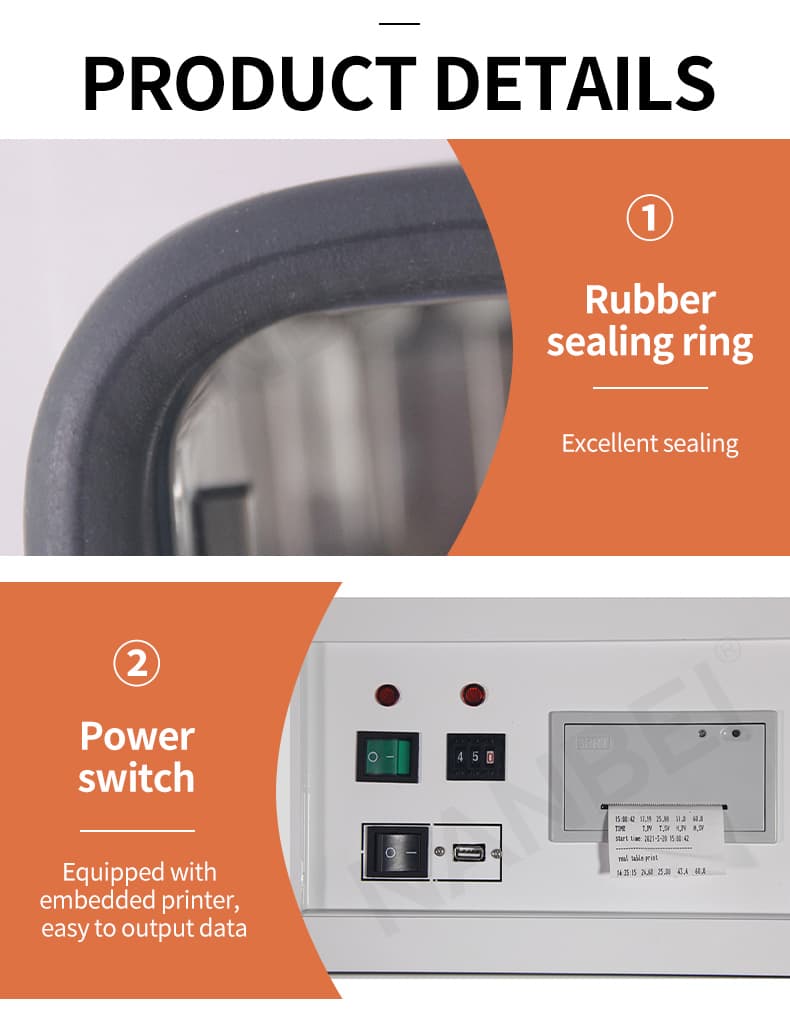

1. adopted 304 standard of stainless-steel chamber, semicircular arcs at comers for easy cleaning
2. the major parts such as temperature and humidity controller,compressor, circulating fan adopts import product
3. unique air duct circulating design, air ducts ensures wind distribute evenly in chamber, a test hole(diameter-25mm) is placed in left side of chamber
Specifications:
model | LHH series medicine test box | LHH series general medicine stability test box | ||||
LHH-150SD | LHH-250SD | LHH-150SDP | LHH-250SDP | LHH-150GSP | LHH-250GSP | |
Electrical requirements |
AC 220V 50HZ | |||||
Temperature range | 0C-65℃ | NO lighting：0C-65℃ lighting：10C-65℃ | ||||
Temperature control | ±0.5℃ | |||||
Humidity range | 40-95%RH | |||||
Humidity deviation | ±3%RH | |||||
Illumination range | N/A | 0-6000LX | ||||
controller | Special temperature and humidity digital display instrument | Imported touch-screen programmable controller | ||||
Interior dimension(mm) | 500*505*600 | 550*520*900 | 500*505*600 | 550*520*900 | 500*505*705 | 550*520*1020 |
Overall dimension(mm) | 630*705*1150 | 680*720*1540 | 630*705*1150 | 680*720*1540 | 630*705*1270 | 680*720*1660 |
Timing range | 3(pcs) | |||||
Satisfying the ICH2003 Q1A(2)guiding principle /GMP2005 edition Chinese pharmacopoeia stability test conditions:
1 short-time test:40C±2C/75%RH±5%RH
2intermediate qualification:30c±2C/65%RH±5%RH
3 long-run test:25C±2C/60%RH±5%RH or 30C±2C/65%RH±5%RH
Execution standard:2005 edition pharmacopoeia medicine stability test guideline and relative items in GB 10586-2006
