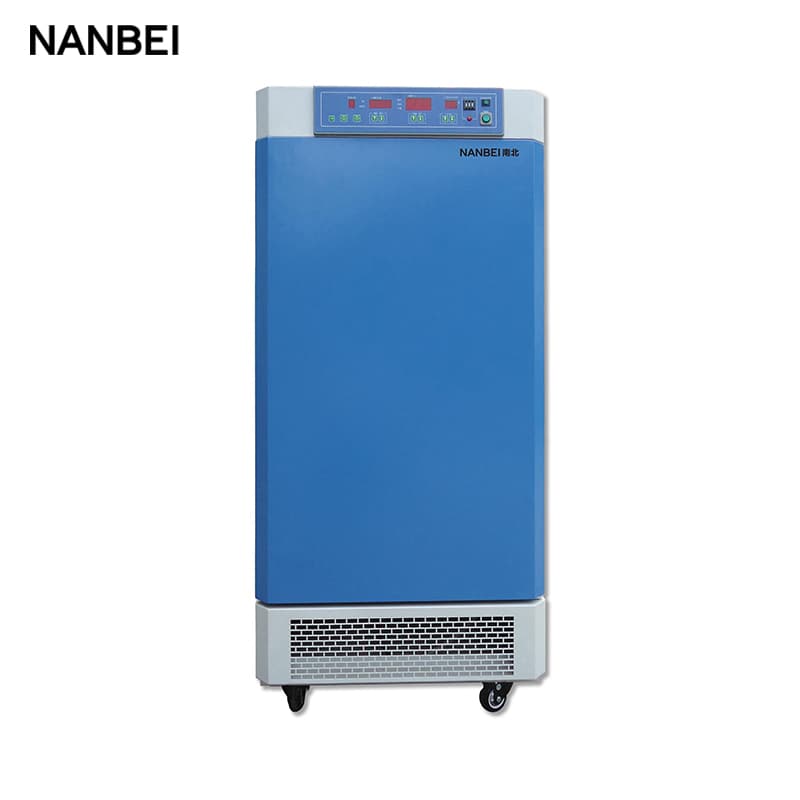

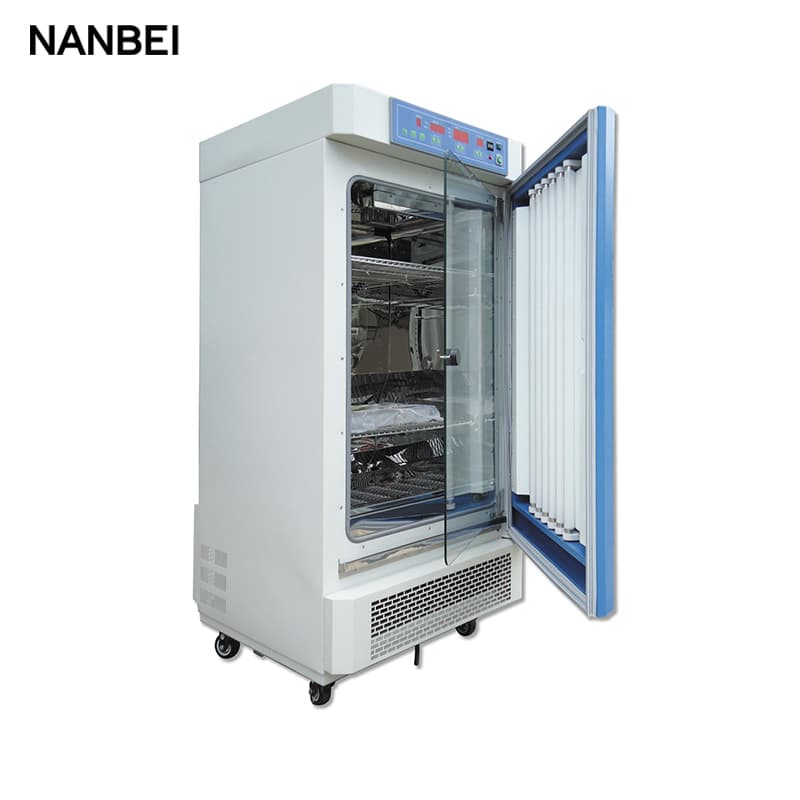

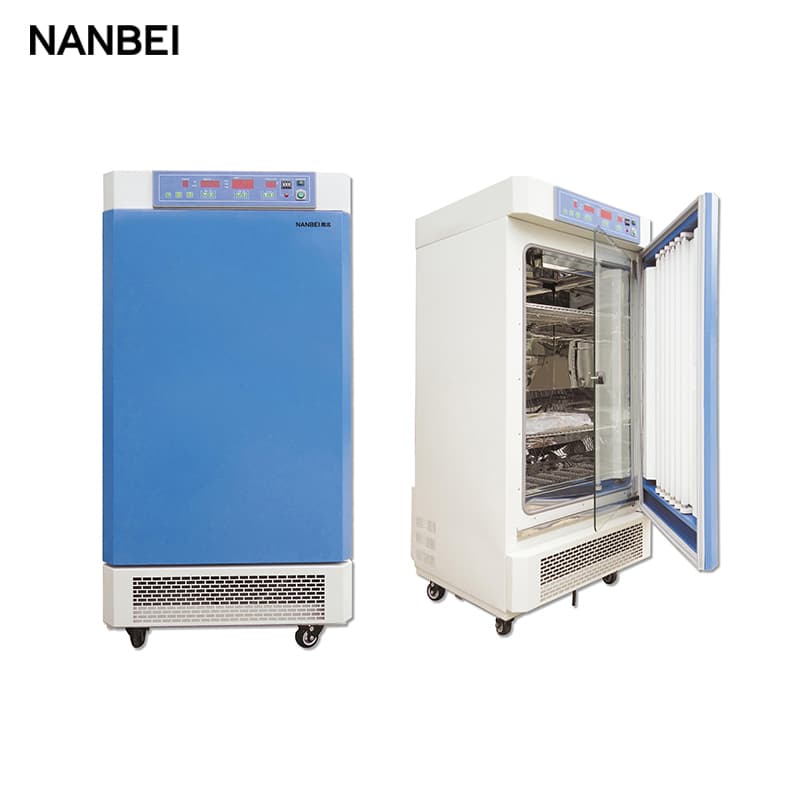

Lighting chamber
Application:
It is widely used for Research in Agroforestry, the growth of plant tissue culture, life sciences, pharmaceutical and other fields of basic research and quality inspection.
Features:
1. Intelligent controller with CPU microprocessor PID control, temperature and humidity data accurate and reliable
2. Ambient temperature monitoring device in the temperature control system can automatically control the working status of the cooling system, effectively ensure the long-term continuous operation of the equipment.
3. The refrigeration system uses pressure balance control, not only improves the performance indicators, but also reduces power consumption
4. The main components are imported high quality components to ensure the stability and reliability of the equipment.
5. Power and memory to ensure the continuity of the experiment.
6. Reasonable water treatment systems, truly no drainage.
7. With the function of over-temperature alarm and the limit temperature protection.
Parameters:
Model | Lighting incubator | ||||||||||
KRG-250A | KRG-250BP | KRG-300A | KRG-300B | KRG-300BP | KRG-400A | KRG-400B | KRG-400BP | ||||
Volume | 250L | 300L | 400L | ||||||||
Voltage | AC 220V 50Hz | ||||||||||
Temperature range | Without light:0℃~50℃ with light:10℃~50℃ | ||||||||||
Temperature resolution | 0.1℃ | ||||||||||
Constant volatility | ±1.0℃ | ||||||||||
Temperature uniformity | ±2.0℃ | ||||||||||
Illumination | 5 adjustable | 6 adjustable | |||||||||
0~12000LX | 0~15000LX | 0~18000LX | 0~15000LX | 0~18000LX | |||||||
Program control(h*segments*cycle | NO | 99×30×99 | NO | 9×30×99 | NO | 99×30×99 | |||||
Inner dimension(mm) | 580×500×850 | 530×550×1100 | 525×670×1140
| ||||||||
Size(mm) | 750×730×1600 | 840×860×1800 | 840×880×1850
| ||||||||
Working way | Continuous | ||||||||||
Shelves | 3 pieces | 4 pieces |
Note: "A" is smooth on both sides, "B" for the three surface light, "P" is a process of liquid crystal control
· performance parameter test under no load condition: temperature 20 ℃, relative humidity 50%RH
