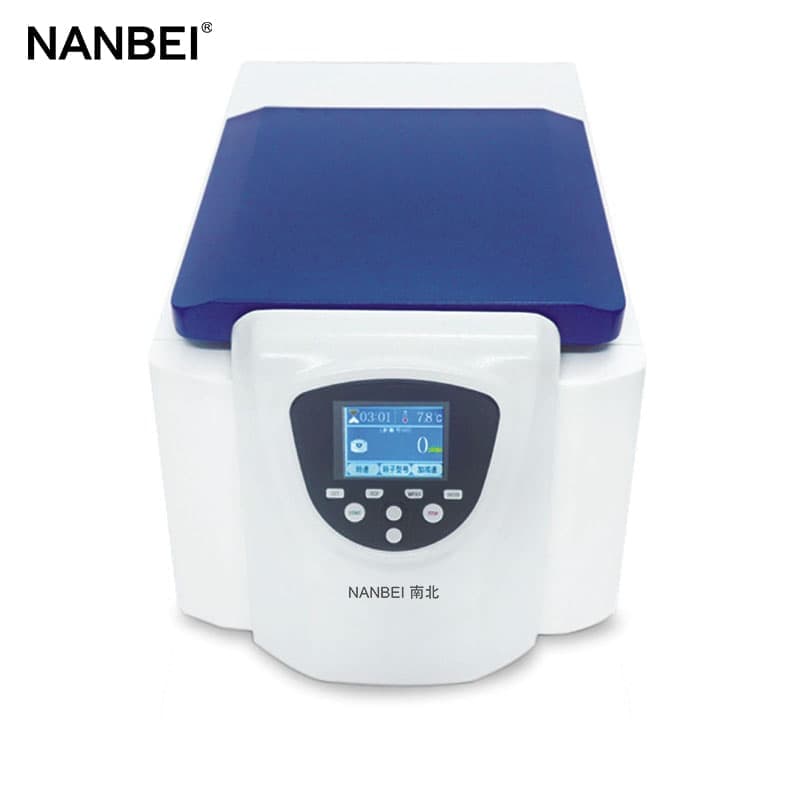

High Speed Refrigerated Centrifuge
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:HR/16MM
Application:
NANBEI HR/T16MM Tabletop Micro High Speed Refrigerated Centrifuge
Features:
With FTF true-color LCD widescreen touch monitor featured by intelligent control,touchable/push-botton operation models for simultaneous control.
Automatically record the operational parameters,can be directly started by RCF.
Using a brushless motor with high torque and variable frequency which is controlled by an SCM of Microchiip's dsPIC30F series and driven by a special driver module of FAIRCHILD'S FSBB30CH Series to ensure the circuit's reliability.
Standby and cool-down function to ensure constant refrigeration when the machine is in standby.
With a dedicated key indicating the centrifugal force which has the inching functiion for momentary centrifugation.
With a motor gate lock mute mechanical & electrical integration.
Unique refrigeration system to ensure the temperature at the maximum rotation speed remain below 4℃.
Able to provide 20 kinds of operating modes for the user to programme and use freely.
With 10 levels for speed-up and speed-down control,the optimal speed-up and speed-down time is 25 seconds.
Paramters:
Model | HR/T16MM | |||
Max Capacity | 24×1.5/2.0ml | |||
Max Speed（r/min） | 16500 | |||
Max RCF（×g） | 18780 | |||
Standard rotor | 12×1.5/2.0ml | |||
Speed precision | ±50r/min | |||
Refrigeration system | Import fluoride-free compressor and control valve | |||
Temp.control range | －20℃～40℃ | |||
Temp.precision | ±1℃ | |||
Timer range | 0-99h59min | |||
Nosie | ≤58dB | |||
Power | AV220V 50Hz | |||

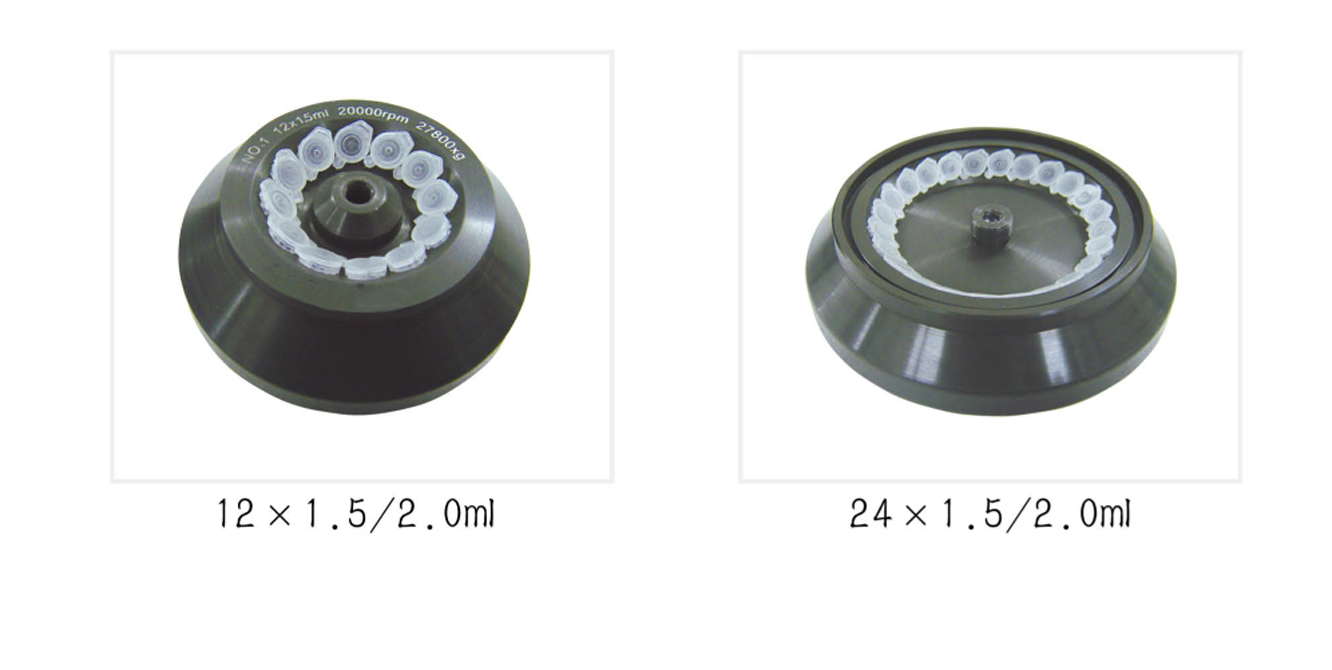

Model | capacity | speed（r/min） | RCF(×g) | |
Angle rotor | 12×1.5/2.0ml | 16500 | 18780 | |
24×1.5/2.0ml | 13500 | 17000 | ||
