StepMate Stepper

Brand:NANBEI

Model:

Application:

CONTACT NOW Chat Now

product details

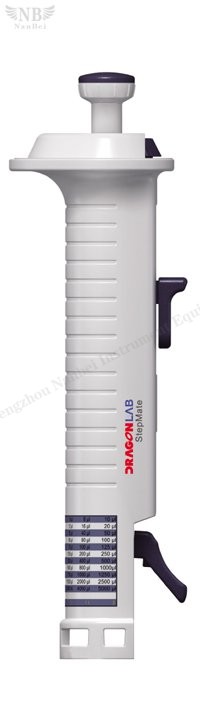

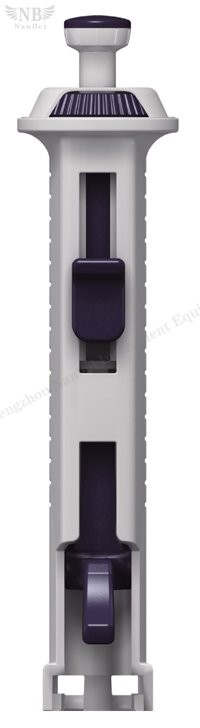

StepMate Stepper

Features
- Lightweight and ergonomic
- One-hand operation
- Factory calibrated
- Volume range of 1μl to 5ml can be dispensed
- Maintenance free
- Equipped with durable tip insertion lever
- Works with seven sizes of disposable, polypropylene syringes from 0.5ml to 50ml
lab pipette

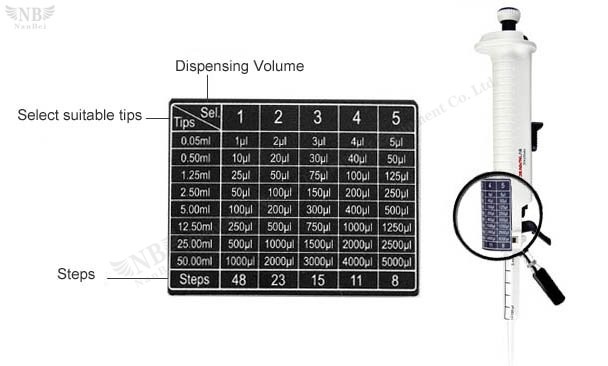

Select the Dispensing Volume
- Find the required dispensing volume
- Use the adjusting wheel to set the required volume
- Select and inserting suitable tips
- Confirm the maximum dispensing steps

Specifications

Dial setting	1	2	3		4		5
Number of steps	48	23	15		11		8
Syringe volume (ml)	Sample volume (µl)								A %	P %
0.05	1	2		3		4		5	± 2.5	≤ 5.0
0.50	10	20		30		40		50	± 0.8	≤ 0.7
1.25	25	50		75		100		125	± 0.8	≤ 0.5
2.50	50	100		150		200		250	± 0.8	≤ 0.4
5.00	100	200		300		400		500	± 0.4	≤ 0.3
12.50	250	500		750		1000		1250	± 0.3	≤ 0.3
25.00	500	1000		1500		2000		2500	± 0.2	≤ 0.3
50.00	1000	2000		3000		4000		5000	± 0.2	≤ 0.2

Note: The first and last dispensing liquid should be discarded or back into container
vessel.

Ordering information

Cat No.	Descriptions
720100000000	StepMate
17900024	0.5ml, piston PE-HD,cylinderPP,non-sterile, 1 pc,100pcs/packing
17900025	1.25ml, piston PE-HD,cylinderPP,non-sterile, 1 pc,100pcs/packing
17900026	2.5ml, piston PE-HD,cylinderPP,non-sterile, 1 pc,100pcs/packing
17900027	5.0ml, piston PE-HD,cylinderPP,non-sterile, 1 pc,100pcs/packing
17900028	12.5ml, piston PE-HD,cylinderPP,non-sterile, 1 pc,100pcs/packing
17900029	25ml, piston PE-HD, cylinder PP, non-sterile, 1 pc, 50pcs/packing with adaptor

Dial setting	1	2	3	4	5
Number of steps	48	23	15	11	8
Syringe volume (ml)	Sample volume (µl)					A%	P%
0.05	1	2	3	4	5	± 2.5	≤ 5.0
0.5	10	20	30	40	50	± 0.8	≤ 0.7
1.25	25	50	75	100	125	± 0.8	≤ 0.5
2.50	50	100	150	200	250	± 0.8	≤ 0.4
5.00	100	200	300	400	500	± 0.4	≤ 0.3
12.50	250	500	750	1000	1250	± 0.3	≤ 0.3
25.00	500	1000	1500	2000	2500	± 0.2	≤ 0.3
50.00	1000	2000	3000	4000	5000	± 0.2	≤ 0.2
