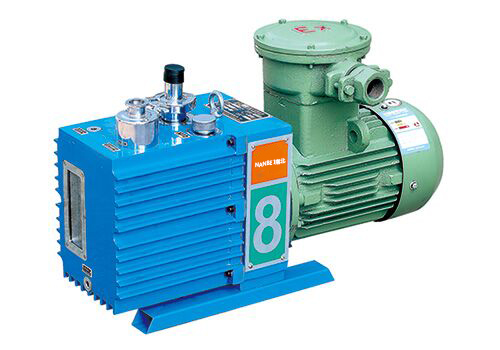

2XZF Anti-explosive Direct-drive Rotary Vane Vacuum Pump
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:2XZF-8C
Application:
The pump is improved on the 2XZ series. It is widely used in petroleum, chemicals, mine, medicine, oil house, service station, liquid gas station, gas flue, aerospace. The equipment to pump inflammable and detonatable gas which have the IIA or IIB anti-explosion level and the temperature with T1 to T4.
Features:
a. Small size, low weight, low noise
b. Equipped with gas ballast valve to pump a little water vapor.
c. Equipped with oil anti-suckback device.
d. dedicated for the anti-explosive,and homothermal drying oven(2XZF-2,2XZF-4).
e. Sign of anti-explosion is ExdIIT4.
f. Adopt the Isolation technology, very safe and reliable.
Technical parameters:
Model | 2XZF-0.5 | 2XZF-1 | 2XZF-2 | 2XZF-4 | 2XZF-6C | 2XZF-8C | 2XZF-15C | |
Pumping speed(L/s) | 0.5 | 1 | 2 | 4 | 6 | 8 | 15 | |
Ultimate pressure(Pa) | Partial pressure | ≤6*10-2 | 4*10-2 | |||||
Total pressure | 1 | |||||||
Rotary speed(r/min) | 1400 | |||||||
Motor power(Kw) | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | |
Voltage(V) | 380 | |||||||
Inlet diameter | Φ20 | Φ20 | Φ30 | Φ30 | KF-40 | KF-40 | KF-40 | |
KF-16 | KF-16 | KF-25 | KF-25 | |||||
Noise level(dBA) | 65 | 65 | 68 | 68 | 70 | 72 | 74 | |
Oil capacity(L) | 0.5 | 0.7 | 1 | 1.2 | 2 | 3 | 4 | |
Dimensions(mm) | 447*168*260 | 469*168*260 | 514*168*282 | 610*260*340 | 580*260*340 | 660*260*360 | 720*260*360 | |
Weight(Kg) | 16 | 17 | 20 | 60 | 70 | 75 | 80 | |
