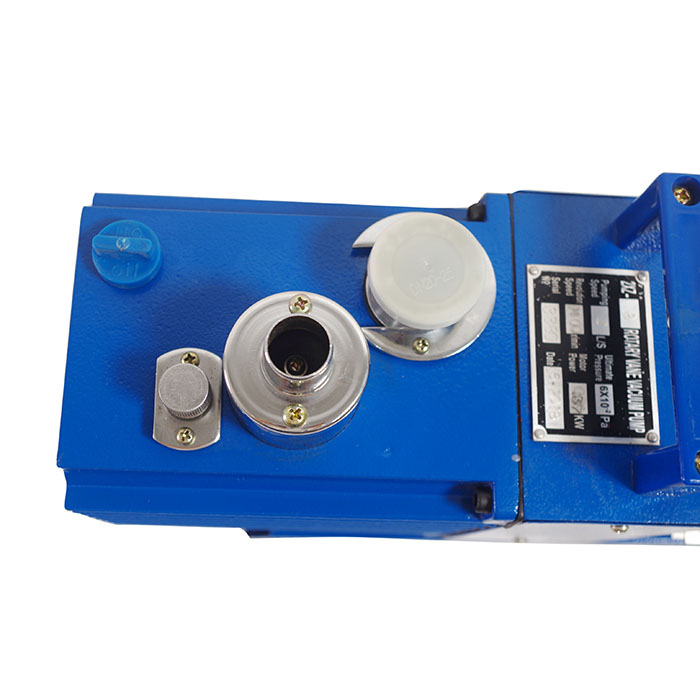

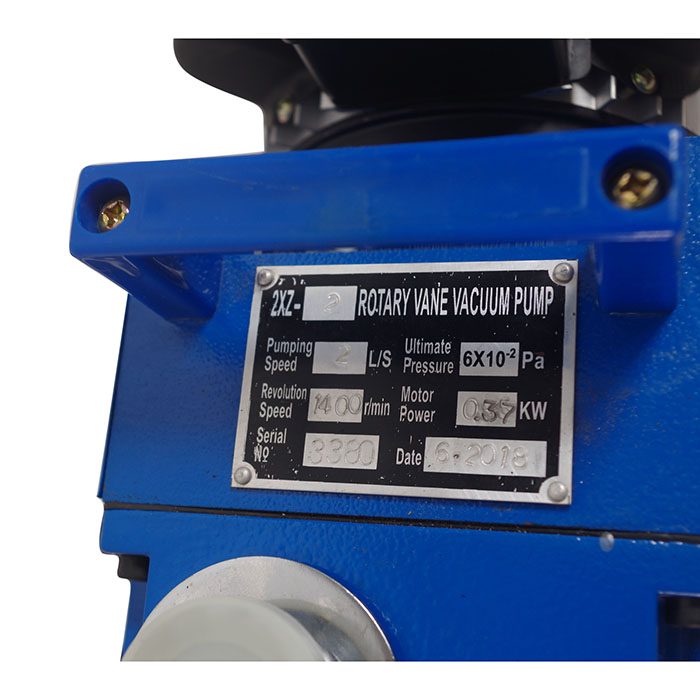

2XZ Series Rotary Vane Vacuum Pump
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:2XZ-0.25
Application:
2XZ-0.25 series rotary vane vacuum pump
Application:
1. This series of pumps are used for pumping air in sealed vessels. It can be used alone, also can be used as the forepump, diffusion pump, and molecular pump.It can be applied to electronic vacuum device manufacturing, thermos manufacturing, vacuum welding, printing, plastic, refrigeration equipment repairment and instrumentation supportings. Because it has many advantages as small in size, light in weight, and low operating sound, thus is is more suitable for laboratory use.
2. Within the ambient temperature range of 540 degrees and the inlet pressure is less than 1.3X103 Pa conditions,the pump is allowed to be under long-term continuous operation.When the pumping gas relative humidity is over 90%,the gas ballast valve should be open.
3. Continuous flow pump inlet air operation shall not exceed one minute.
4. Pump is not suitable for pumping gases which are corrosive to metal,easy to get chemical reaction with pump oil,or a gas containing dust particles, as well as the high oxygen, explosive, toxic gases.
Technical parameters:
| Model | 2XZ-0.25 | ||||
| Pumping speed (L/S) | 0.25 | ||||
| Ultimate Pressure (Pa) | 6×10-1 | ||||
| Speed (r/min) | 1400 | ||||
| Inlet diameter (mm) | Φ10 | ||||
| Fuel Consumption (MI) | 0.3 | ||||
| temperature rise (°C) | 40 | ||||
| Motor Power (W) | 0.12 | ||||
| Dimension
(mm) | Length | 400 | |||
| Width | 125 | ||||
| Height | 224 | ||||
| Weight (Kg) | 15 | ||||
| Noise (Db) | 64 | ||||
