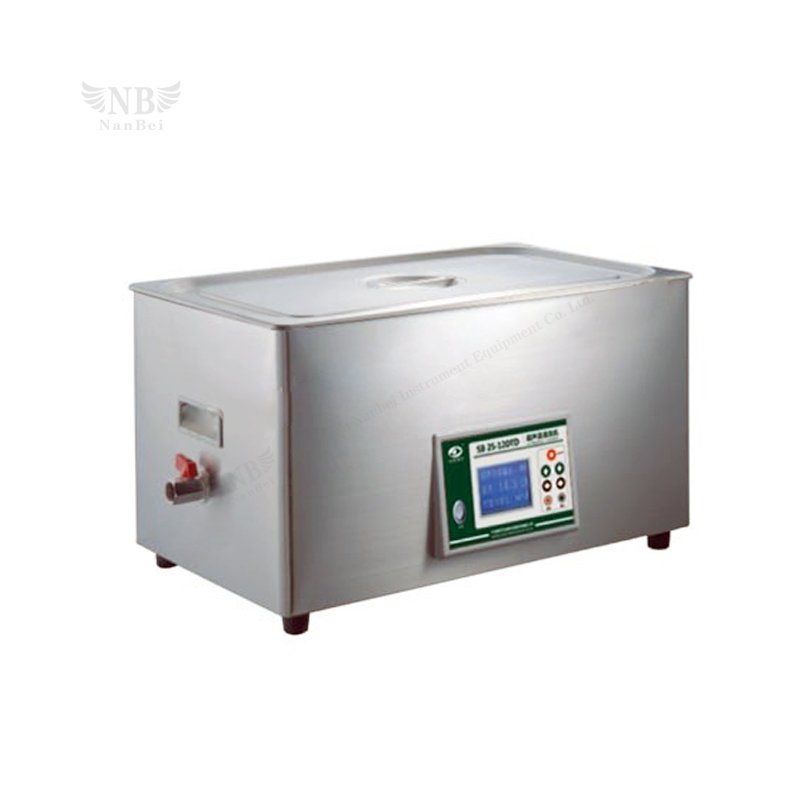

Ultrasonic Cleaning Machine
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:
Application:
NB-600DTY Multi-frequency Ultrasonic Cleaning Machine:
Introduction:
The design of the equipment is based on the users' requirement of ultrasonic power, ultrasonic frequency, ultrasonic time. Having the following functions: cleaning, decentralized extraction, nano-preparation, chemical reactions, degassing, defoaming, emulsification, mixing etc. It has broken the traditional cleaning pattern by the single-frequency washing machine. Through multi-frequency conversion 25KHz, 28KHz, 40KHz and 59KHz, the whole process of perfunctory washing, washing in clean water, precision cleaning and rinse is complete within a single machine, giving a thorough cleaning to the washing objects with the result that no fine and stubborn dirt is left anywhere.
Features:
● Background light LCD screen
● Microcomputer memory setting parameters
● The ultrasonic working time set up independently: (0-99 minutes adjustable)
● Multi-frequency conversion: 25KHz, 28KHz, 40KHz, 59KHz
● Display woking countdown time
● Display actual temperature of the cleaning tank
● Temperature setting range: Ambient Temperature -- 80 ℃
● Timing range: 0-999 minutes adjustable
● Equipped with a special stainless steel basket, reduction sound cover
● The shell and cover are made of stainless steel
● The equipment controlled by single-chip controller
● With Drainage function
Parameters:
| Model | Inner tank | Volume | Frequency | Power | Heating power | Rack | Drainage |
| L/W/H ( mm) | L | KHZ | W | W | |||
| NB-300DTY | 300×240×150 | 10 | 25 | 300 | 320 | √ | √ |
| NB-400DTY | 300×240×200 | 15 | 25 | 400 | 320 | √ | √ |
| NB-500DTY | 500×300×150 | 22.5 | 28 | 500 | 600 | √ | √ |
| NB-600DTY | 500×300×200 | 30 | 40 | 600 | 3000 | √ | √ |
| NB-1000DTY | 600×300×300 | 54 | 59 | 1000 | 4000 | √ | √ |
| NB-1200DTY | 600×400×300 | 70 | 59 | 1200 | 4000 | √ | √ |
