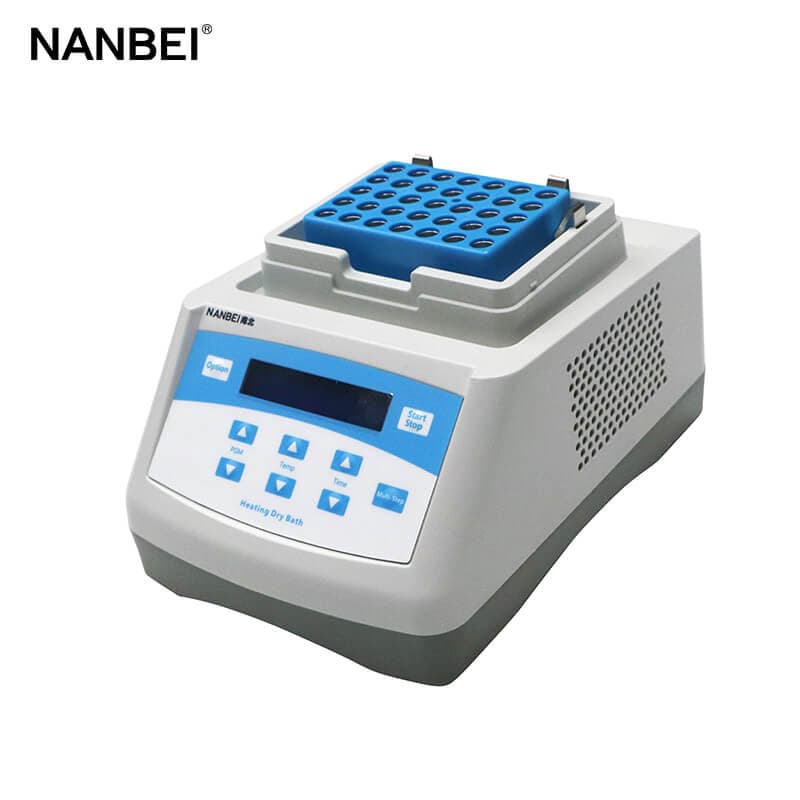

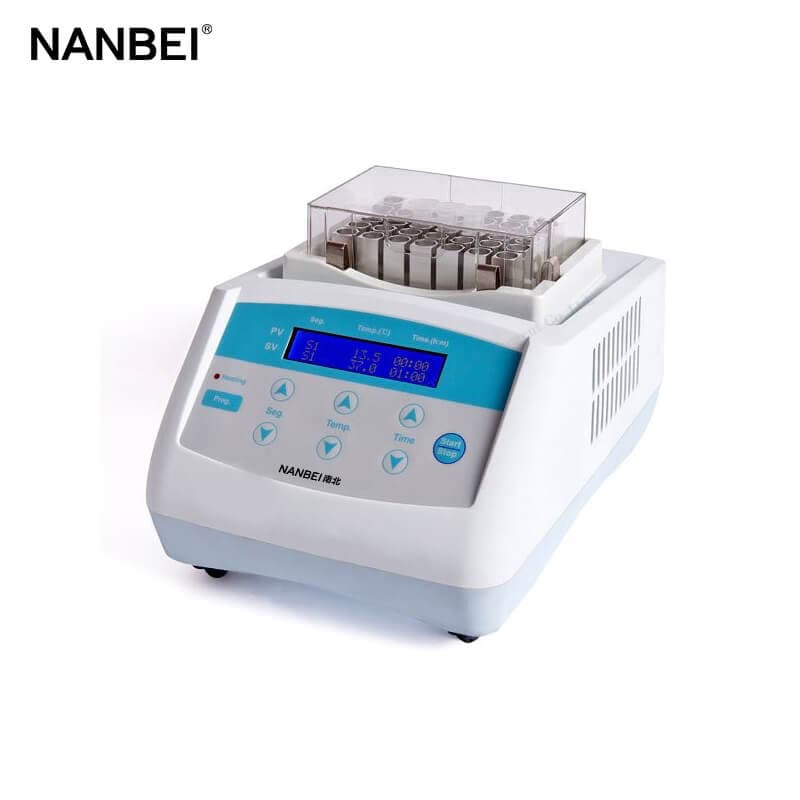

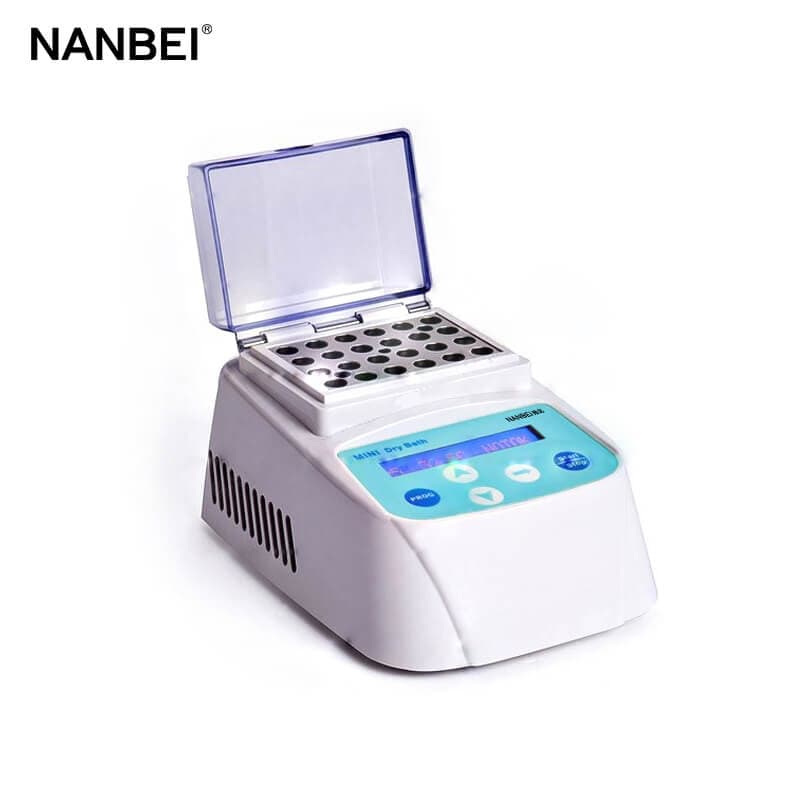

The ES1000 Dry Bath Incubator is a semi-conductor controlled heating & cooling instrument with automatic temperature control design. The flexible timer, constant temperature function and multi-point operation mode make it a unique and an ideal lab instrument.
Features:
1. Instantly displays operation information on the LCD screen.
2. Has combined temperature control system and block system. Each block has a built-in temperature sensor and heating/cooling unit, ensuring that temperature control is more accurate and the heating speed is much faster.
3. Interchangeable, auto-recognized blocks.
4. Adjustable heating lid. Temperature of heating lid can be controlled.
5. Multi-point(max. 5 points) and Multi-cycle( Max.99 times) operation modes are provided.
6. Auto restart in case of power failure.
7. Over-heating protection device is included.
8. Built-in temperature calibration function.
Product parameters
Project |
Parameters |
---|
Product model |
ES1000 |
Block |
ES series |
ESC series |
Temp setting range |
0℃~100℃ |
-10℃~100℃ |
Temp control range |
RT+5℃~100℃ |
RT-25℃~100℃ |
Time range |
1sec ~ 99 min 59sec /1min ~ 99h59min/∞ |
Temp accuracy |
≤±0.3℃@37℃ |
Display accuracy |
0.1℃ |
Temp uniformity |
≤±0.3℃@37℃ |
Heating time |
≤12min(From 25℃ to 100℃) |
Cooling time1 |
--- |
≤12min(From 100℃ to 25℃) |
Cooling time2 |
--- |
≤25min(From RT to RT-25℃) |
Heating lid temp setting range |
OFF~+10℃ |
Heating lid temp accuracy |
≤±0.5℃* |
Heating lid heating time |
≤10min(from 25℃ to 100℃)* |
Storage at 4℃ |
--- |
Yes |
Multi points running |
Yes(Max 5 points) |
Multi cycle |
Yes(Max 99 times) |
Auto running |
Yes |
Auto Heating |
Yes |
Auto resume to run |
Yes |
Capacity |
See optional block |
Power |
150W |
Voltage |
AC100 or AC220V / 50-60HZ |
Fuse |
250V 3A Ф5×20 |
Dimension(mm) |
300x200x210 |
Weight(kg) |
4.0 |
4.7 |
Product accessories
Type |
Capacity |
Temp. range |
ESC-01 |
35x2.0ml centrifuge tube |
RT-25℃~100℃ |
ESC-02 |
35x1.5ml centrifuge tube |
RT-25℃~100℃ |
ESC-03 |
54x0.5ml centrifuge tube |
RT-25℃~100℃ |
ESC-04 |
96x0.2ml centrifuge tube |
RT-25℃~100℃ |
ESC-05 |
96x0.2ml Elisa plate |
RT-25℃~100℃ |
ES-06 |
35x2.0ml centrifuge tube |
RT+5℃~100℃ |
ES-07 |
35x1.5ml centrifuge tube |
RT+5℃~100℃ |
ES-08 |
54x0.5ml centrifuge tube |
RT+5℃~100℃ |
ES-09 |
96x0.2ml centrifuge tube |
RT+5℃~100℃ |
ES-10 |
96x0.2ml Elisa plate |
RT+5℃~100℃ |
