DYCZ-40D Electrophoresis Cell

DYCZ-40D Electrophoresis Cell

Model: DYCZ – 40D
Features:
■  Made from high quality acrylic with platinum electrodes;

■  Latches on the gel holder cassette for easy handling;

■  Fast transferring speed and good transferringeffect;

■  A seamless, injection-molded transparent buffer tank prevents leakage and breakage;

■  Allows easy orientation for rapid, error free set-up;

■  An efficient design simplifies insertion and removal of the gel holder cassette from supporting body for transfer ( electrode assembly)

■  Compatible with the lid and the buffer tank of DYCZ-24DN;

Specifications:
■ Pore plate combination for transferring dimensions: 95 × 87 (mm);

■ Max. power: 40W;

■ Continuous working time: ≥24 hours;

■ Buffer volume: about 400 - 450 ml;

■  Size(L X W X H):150×100×140 (mm);

■  Weight: about 1 kg.

Applications:

For transferring the protein molecule from the gel to membrane like Nitrocellulose membrane in the Western Blot experiment.

Suitable Electrophoresis Power Supply：

DYY – , DYY – ,DYY –  ,DYY – 12.

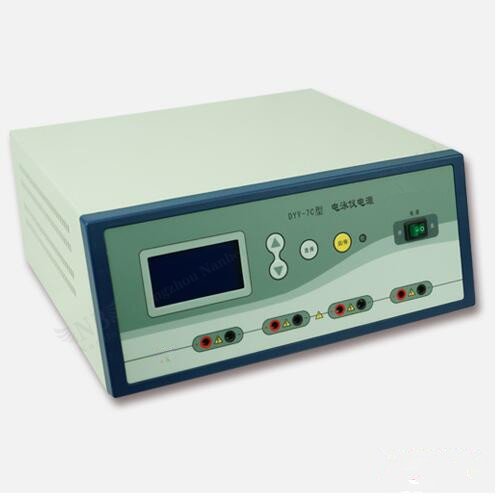

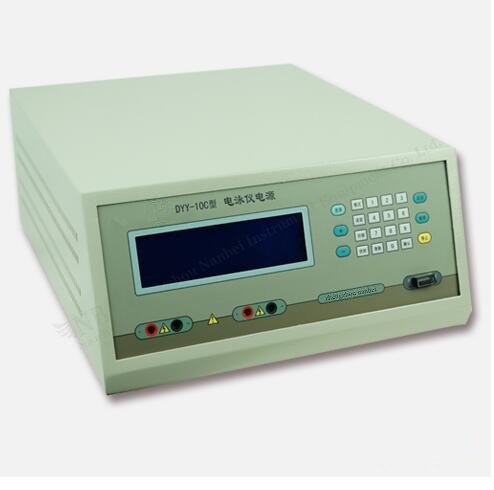

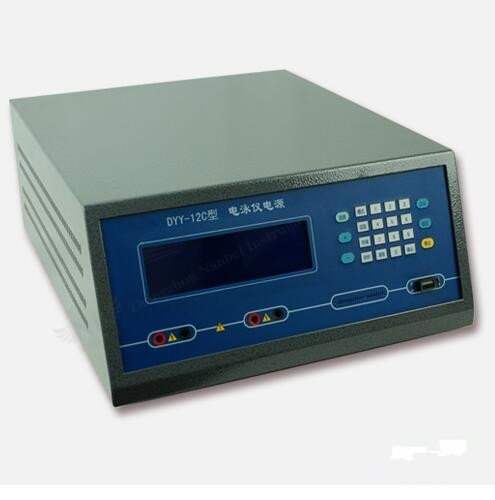

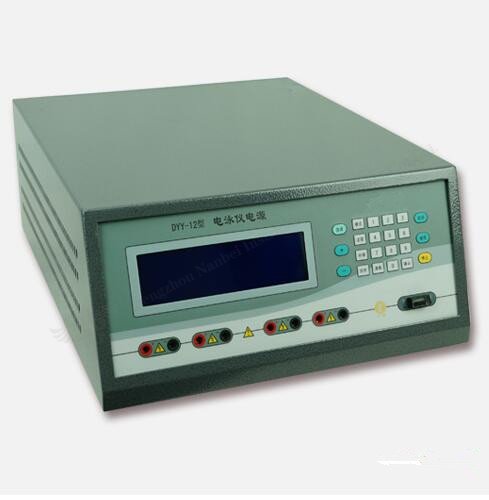

DYY-7C	DYY-10C	DYY-12C	DYY-12
Please click to know more	Please click to know more	Please click to know more	Please click to know more

Note:

You can also only select the transfering core of DYCZ - 40D if you have already bought DYCZ - 24D or DYCZ - 24DN because the external tanks and the lids of these two models are the same
.
