Upright Freezer Racks
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

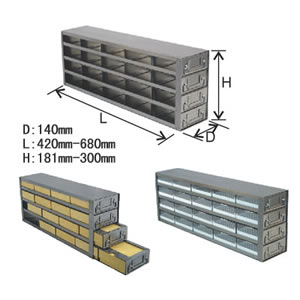

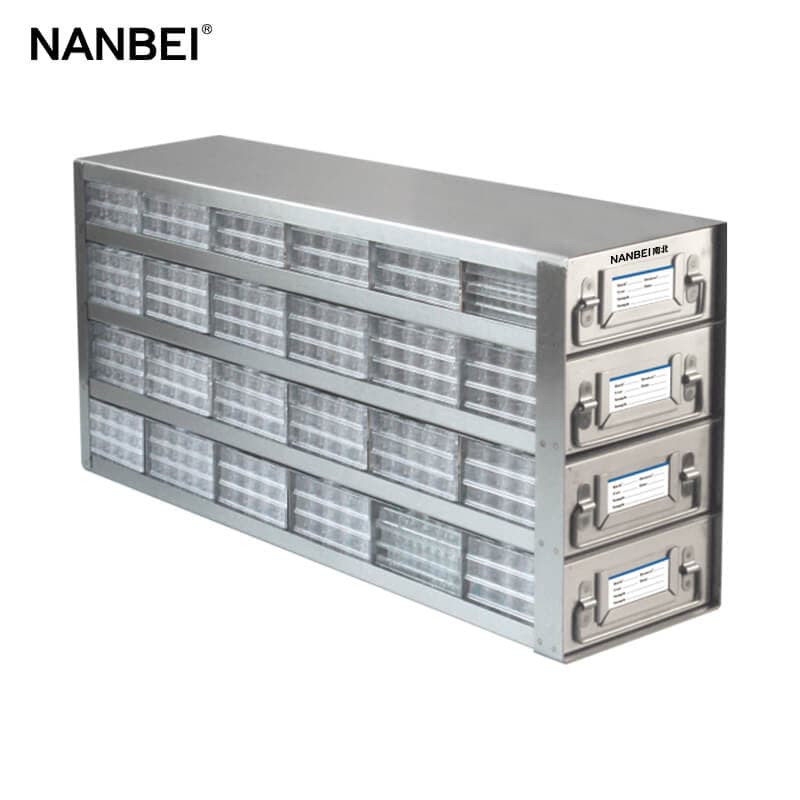

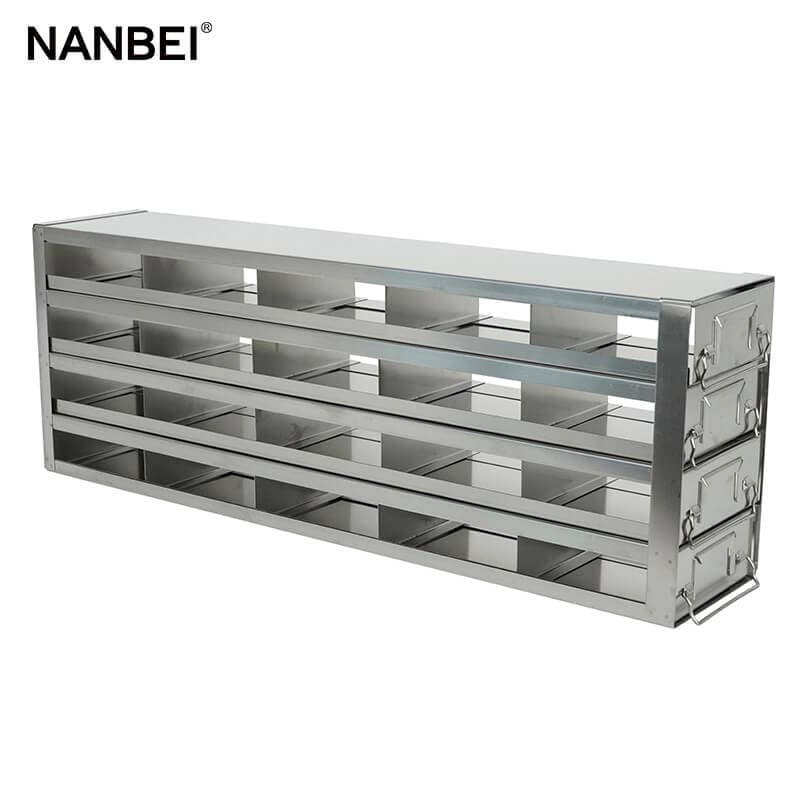

Racks are for cardboard, plastic or metal boxes. These high quality upright freezer racks are constructed of corrosion resistant stainless steel. They come with handles and identification card holders. Upright freezer drawer racks offer a more organized system for storage and retrieval of samples. Drawer racks facilitate both access to and storage of samples without having to remove the whole rack from the freezer. Security lock devices are also available for each rack. Using the internal dimensions obtained for your freezer shelf space determine the height (H), length (L) and width (W) of each rack you select for your upright freezer.
| Model | Description | Capacity | Lock Devices |
| UFD-332 |
Upright Freezer Drawer Racks for Standard 2" Boxes | 3×3=9 | DD-06 |
| UFD-332-XX | |||
| UFD-342 | 3×4=12 | DD-09 | |
| UFD-342-XX | |||
| UFD-352 | 3×5=15 | DD-11 | |
| UFD-352-XX | |||
| UFD-432 | 4×3=12 | DD-06 | |
| UFD-432-XX | |||
| UFD-442 | 4×4=16 | DD-09 | |
| UFD-442-XX | |||
| UFD-452 | 4×5=20 | DD-11 | |
| UFD-452-XX | |||
| UFD-532 | 5×3=15 | DD-06 | |
| UFD-532-XX | |||
| UFD-542 | 5×4=20 | DD-09 | |
| UFD-542-XX | |||
| UFD-552 | 5×5=25 | DD-11 | |
| UFD-552-XX |
Notes:
1.UFD:Upright Freezer Drawer Racks n:Nomber of Columns m: Nomber of Layers 2: Standard 2"Boxes
2.To order,replace XX with 144,100,81,64,49,36,25 or 16 for cell dividers.
