Ultrasonic Cell Homogenizer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:JY99-IIDN
Application:
Description:

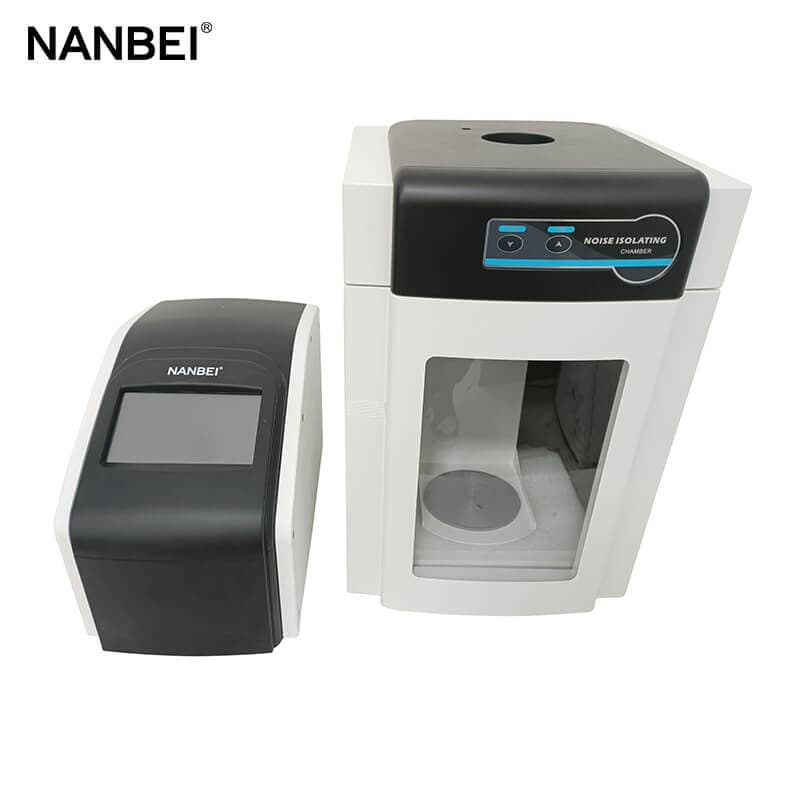

Ultrasonic Processor JY98-IIIN (1200W, 20KHz) is a powerful and reliable ultrasonic device for the sonic dispersion of larger samples in the lab. Typical application include: Homogenization, Nano Partical Dispersion, lyses and cell disintegration, protein extraction and the emulsification of liquids.
Features:
• LCD display, Microprocessor controlled and completely programmable
• Auto-tuning for convenience of use and optimal processing efficiency, Time setting
• Integrated Sound Abating Chamber to reduce cavitational sound emitted during processing
•All D models with temperature indicator and controller
• Variable power output: 0-1200W
Main Technical Parameters：
MODEL | JY98-IIIN | JY98-IIIDN | JY99-IIDN |
Frequency | 19.5-20.5KHz | 19.5-20.5KHz | 19.5-20.5KHz |
Power | 1200 W | 1200 W | 1800 W |
Accompany (Φ) | ф20 | ф20 | ф25 |
Optional Tip (Φ) | ф15、25 | ф15、25 | ф20、28 |
Processing Volume | 50-1000 ml | 50-1000 ml | 50-1200 ml |
Duty Ratio (% | 1-99 % | 0.1-99.9% | 0.1-99.9% |
Supply | 220/110V 50Hz/60Hz | 220/110V 50Hz/60Hz | 220/110V 50Hz/60Hz |
Power supply chassis Size and Weight | 40*28*22（cm）；12.1Kg | 40*28*22（cm）；12.1Kg | 40*28*22（cm）；13Kg |
Mainframe Weight | 14.5 Kg | 14.6 Kg | 15Kg |
Packing Size | 534*295*435mm | 534*295*435mm | 534*295*435mm |
