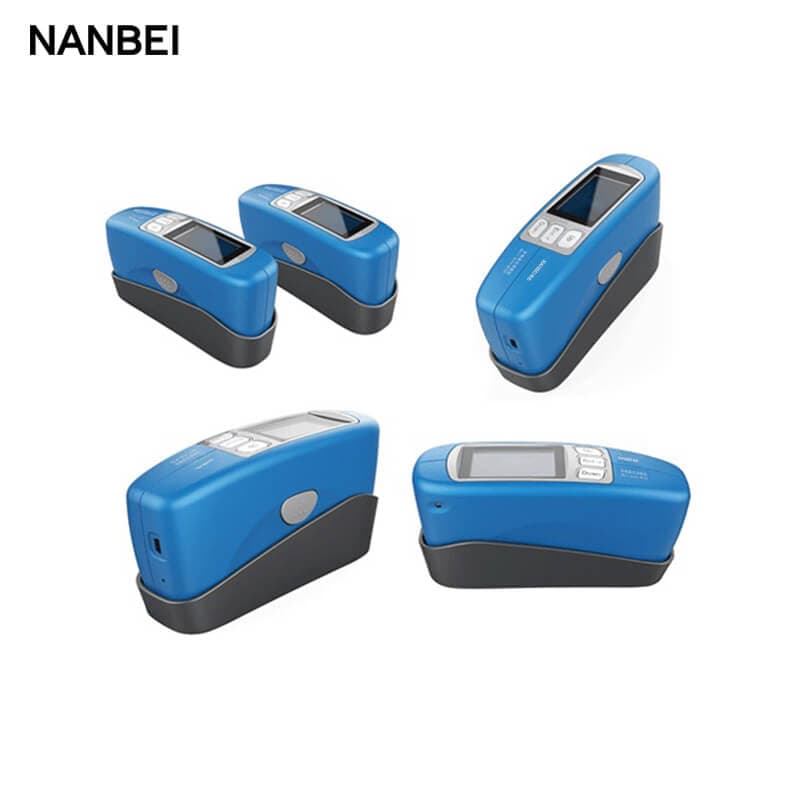

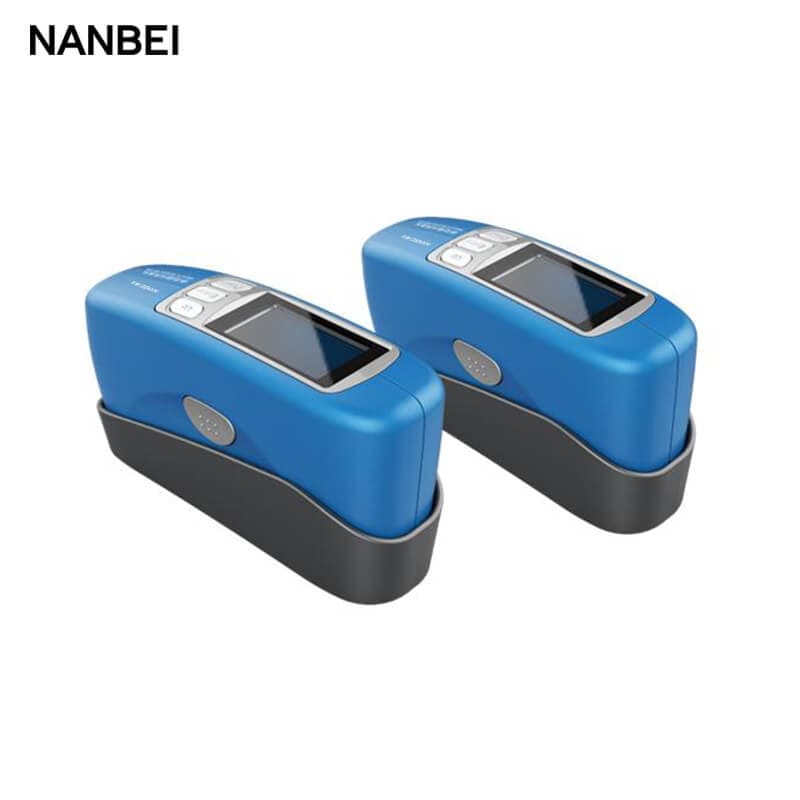

NB-380 Portable Gloss Meter
Main Application:
Decorative materials, such as marble, granite, polishing brick, ceramic, mould and so on.
All kinds of coating and surfaces, such as paints, vanish, printing ink, automaker, and leather craft.
The other kinds of materials and objects, such as, woodenware, plastic, paper, etc.
Parameters:
Specifications | Unit | NB-380 Gloss meter | |
Measuring angle | Angle | 60° | |
Measuring range | GU | Gs(60°):0.0-120 | Gs(60°):120-1000 |
Measuring spot | Mm | Gs(60°):9x15 | |
Resolution | GU | 0.1 | 1 |
Repeatability | GU | 0.2 | 0.2% |
Reproducibility | GU | 0.5 | 0.5% |
Deviation | GU | ±1.5 | ±1.5% |
Zero-point Deviation | GU | 0.2 | |
Operating Temperature |
| 10°--40° | |
Storage temperature |
| -10°--70° | |
Relative humidity |
| Up to 85%, no moisture condensation, for operation | |
Power supply |
| Four AAA-sized battery, 5v, Rechargeable or alkaline | |
Volume | Mm | 163.8*58.1*88.3 | |
Weight | G | 520 |
Function:
1. One key to get gloss values in a measurement. The incident angle of light conforms to ISO2813 in order
2. Friendly display interface
3. Large memory for measurement data. More than 900 measurements or 30 groups can be allowed to store in NB-380
4. Inquiry for data in memory
5. Prompt for low battery and full memory.
