Glass Reactor Heat Dissipation: 12 Key Factors & Optimization Techniques

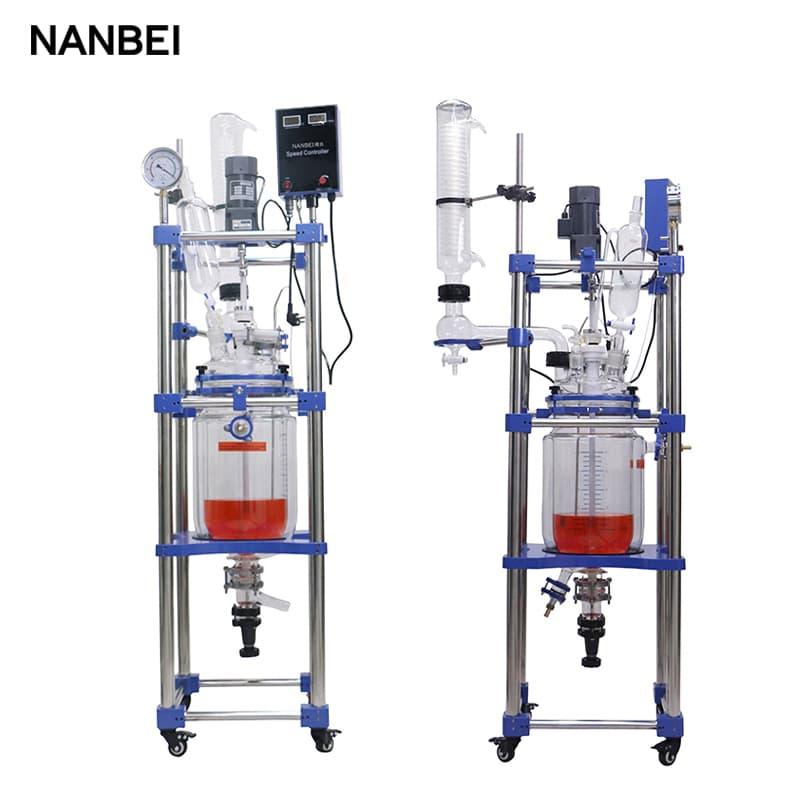

Glass reactors are essential in pharmaceutical, chemical, and materials research due to their corrosion resistance and visual monitoring capabilities. Effective thermal management is critical for reaction control and safety. Below are 12 key factors impacting heat dissipation:

I. Equipment Design Factors

1. Glass Thermal Conductivity

• Borosilicate glass (1.2 W/m·K) vs. quartz (1.4 W/m·K)

• Wall thickness impact: 3mm walls reduce heat transfer by 15-20% vs. 2mm

2. Interlayer Design

   Interlayer Type	Cooling Efficiency	Best For
   Single-jacket	★★☆☆☆	Basic applications
   Dimpled-jacket	★★★★☆	High-viscosity materials
   Spiral-flow	★★★★★	Precision temperature control

3. Stirring Systems

• Anchor impellers increase heat transfer by 30% vs. propellers

• Optimal clearance: 0.1D from reactor wall

II. Material & Reaction Factors

1. Material Viscosity

• High-viscosity fluids (≥500 cP) reduce heat transfer by 40-60%

• Solution: Increase agitator speed by 20% for every 100 cP increase

2. Filling Ratio

• Ideal volume: 60-70% of capacity

• Overfilling (>85%) decreases heat transfer by 25%

3. Exothermic Reactions

• ΔT ≥ 50°C reactions require supplemental cooling

• Safety Tip: Implement cascade cooling controls for runaway reactions

III. Environmental Factors

1. Ambient Temperature

• Every 5°C above 25°C reduces cooling efficiency by 8-10%

2. Humidity Control

• 70% RH causes condensation film (reduces heat transfer 12-15%)

• Solution: Install desiccant air curtains

3. Insulation Quality

• Vacuum-insulated jackets reduce heat gain by 90% vs. foam

IV. Operational Factors

1. Temperature Ramp Rates

• Limit cooling rates to ≤5°C/min to prevent glass stress fractures

2. Interface Heat Loss

• Uninsulated flanges account for 15-20% heat loss

• Pro Tip: Use PTFE-insulated clamps and jackets

3. Vacuum Effects

• At 10 mbar vacuum: 35% reduction in convective heat transfer

• Compensate with 20% longer cooling cycles

Optimization Techniques

• Double-Layer Reactors: Preferred for reactions requiring ±2°C control

• Coolant Selection Guide:

• Water: 0-80°C | Silicone oil: -40 to 200°C | Liquid nitrogen: <-150°C

• Maintenance Protocol:

• Monthly inspection of sealing surfaces

• Annual recalibration of temperature probes

• Immediate removal of glass surface scratches

Industry Applications

• Pharmaceutical: Crystallization processes requiring ±1°C stability

• Nanomaterial Synthesis: Exothermic reaction control in [solid-phase reactors]

• Perfume Extraction: Low-temperature condensation in [rotary evaporators]

• Critical Safety Note: Always maintain ≥30% safety margin in cooling capacity for exothermic reactions. Monitor temperature gradients with IR thermography quarterly.
