10L Glass Reactor with Heating Bath

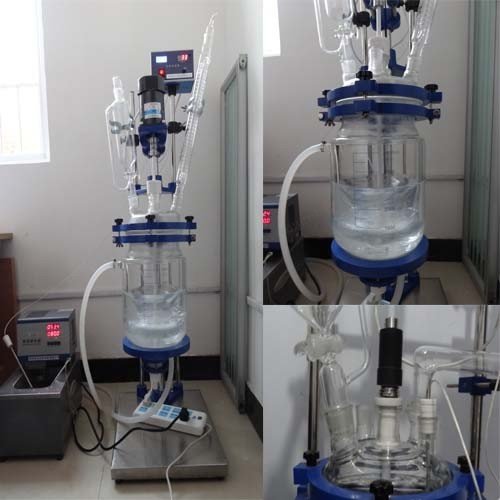

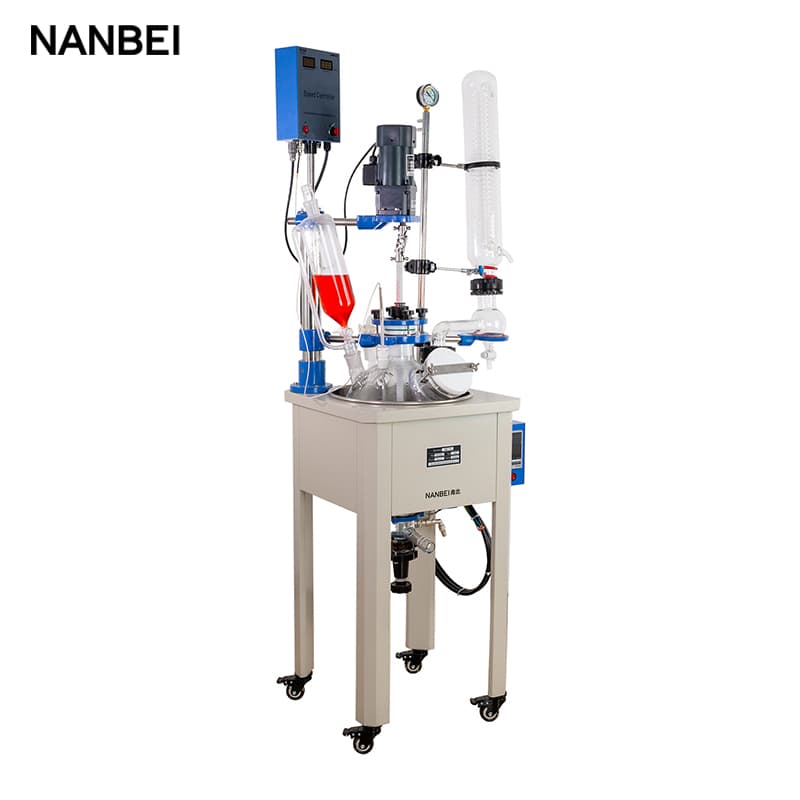

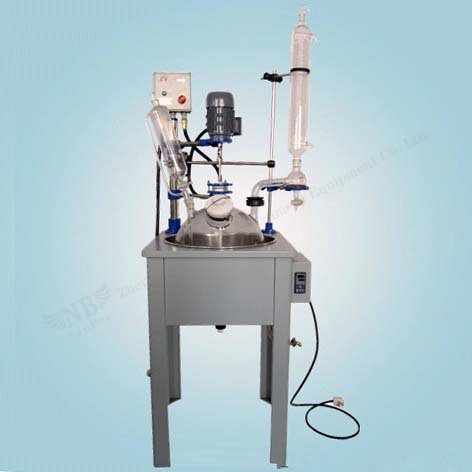

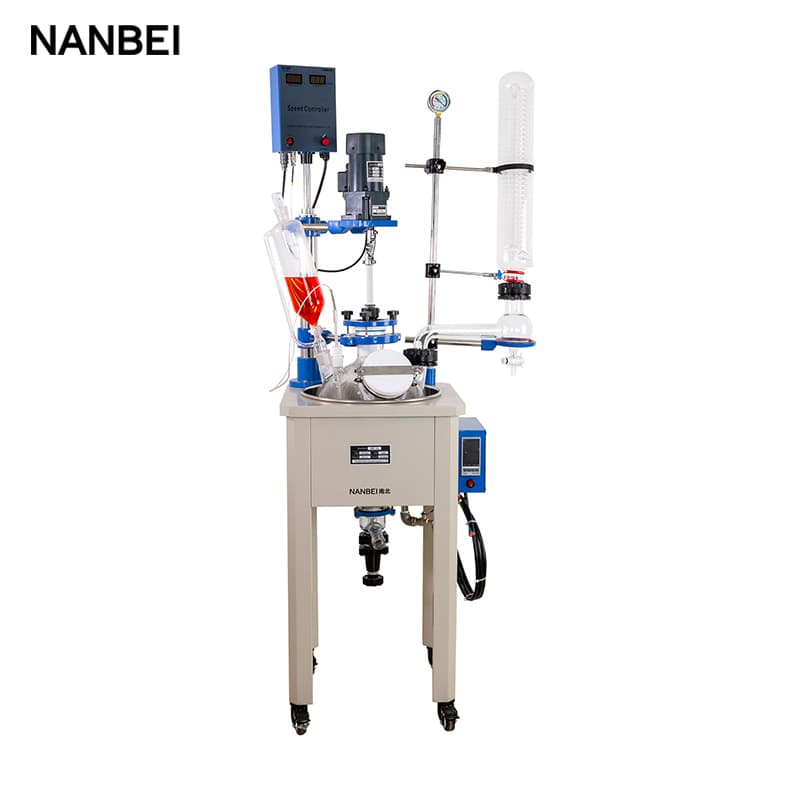

5-100L Single glass reactor multifunctional glass reactor

Brief Introduction:

Single glass reactor inner placed reaction solvent which can be stirred, interlayer can be filled with cold or hot liquid(frozen liquid, water, gas or hot oil) to do the thermostatic heating/cooling reaction, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.

Working principle:

Under the condition for setting the constant temperature, in a closed glass container, at atmospheric pressure or negative pressure by stirring, reaction, it can control the reaction solution's evaporation and reflux.

Product Features:

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;

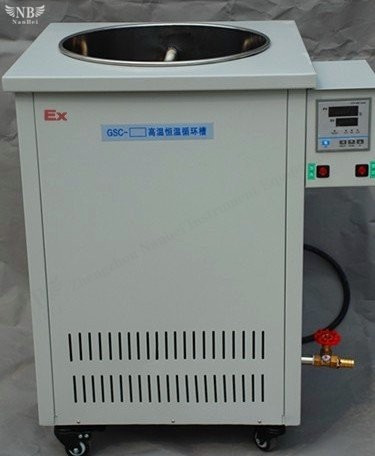

7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user's needs)

Technical parameters:

Remark: This product is for civilian use only

Related instruments:

Jacketed glass reactor	Ex-proof single glass reactor
More details, pls click here	More details, pls contact us

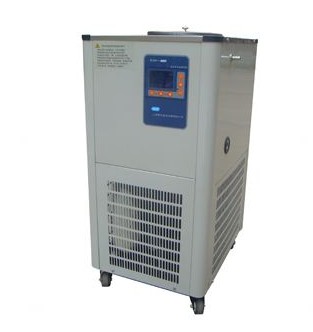

Matched instruments:
