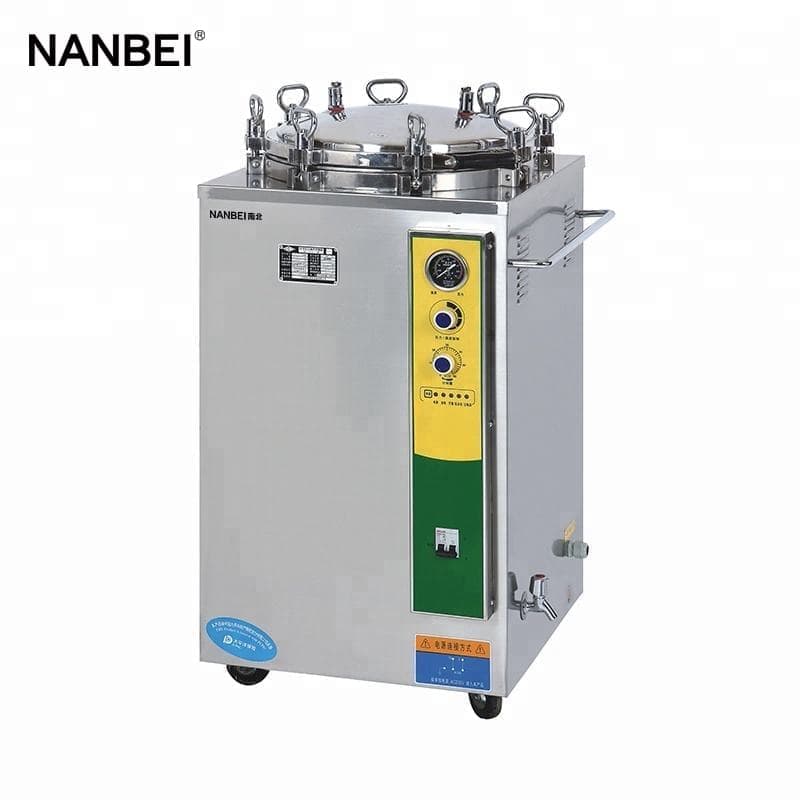

LS-150LJ 150L Vertical Steam Sterilizer

Brand:NANBEI

Model:LS-150LJ

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

CONTACT NOW Chat Now

product details

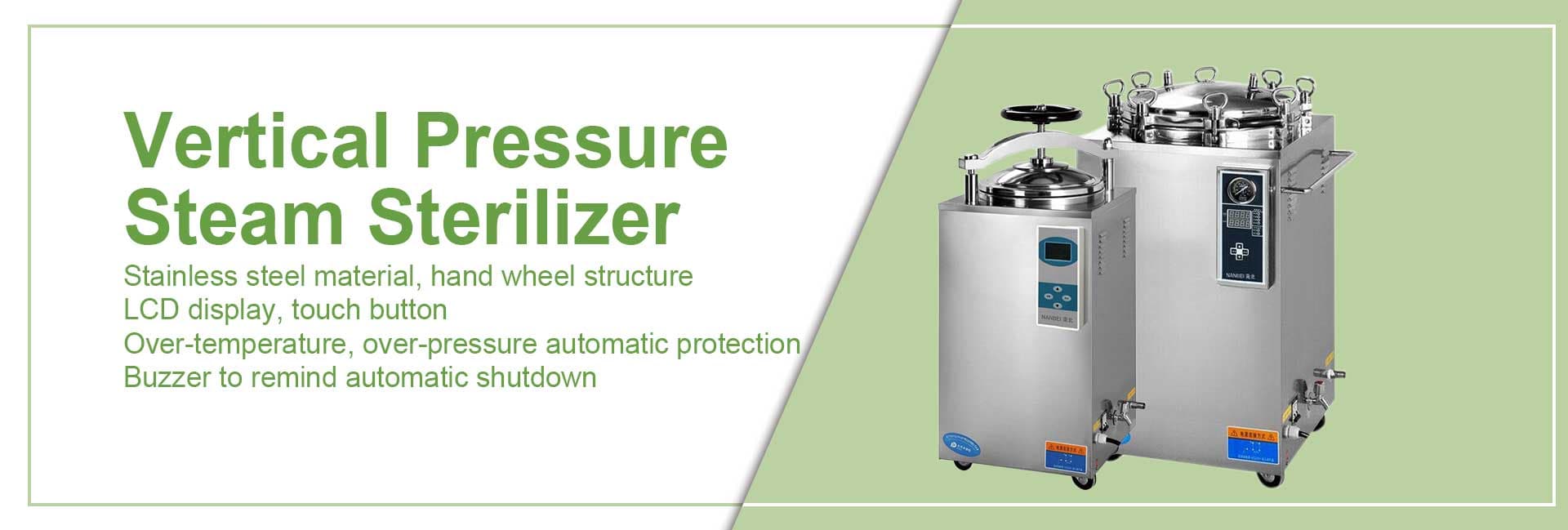

Vertical pressure steam sterilizer

Characteristics:

1.Fully stainless steel structure

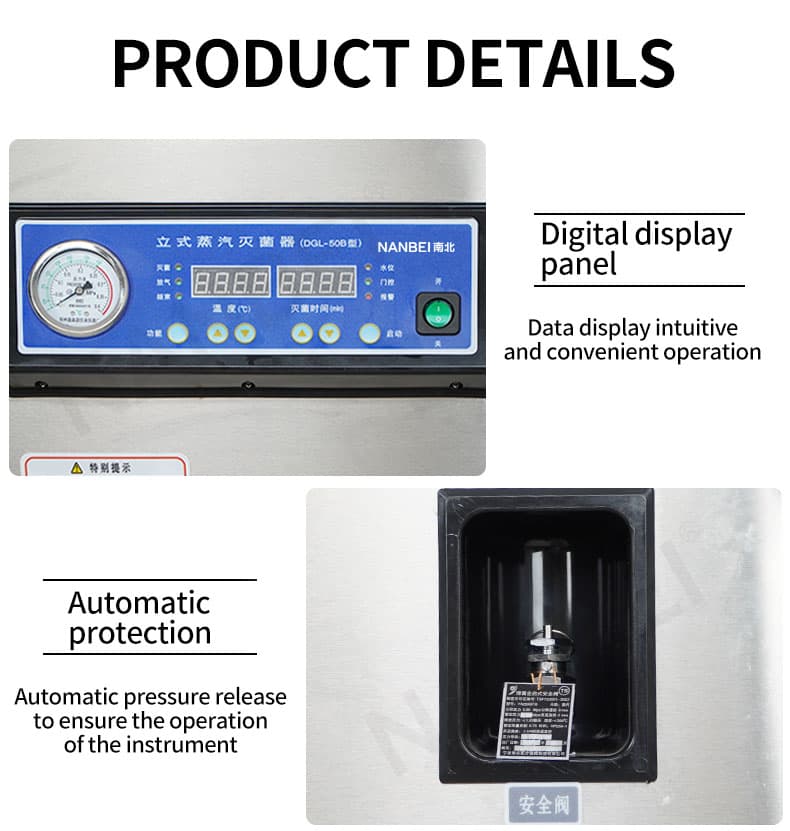

2.Indicator light indicates working state

3.Over temperature&over pressure auto-protection

4.Double scale indication pressure gauge

5.Safe protection of water lacking

6.Automatically shut off with beep reminding after sterilization

7.Easy to operate,safe and reliable

8.With two stainless steel sterilizing baskets

Technical Data：

Model Technical data	LS-35LJ	LS-50LJ	LS-75LJ
Chamber volume	35L(φ318×450) mm	50L( φ340×550) mm	75L(φ400×600) mm
working pressure	0.22MPa
Working temperature	134℃
Max working pressure	0.23 Mpa
Heat average	≤±1℃
Timer scope	0～60min
Temperature scope	105～134℃
Power	2.5KW/AC220V.50Hz	3KW /AC220V.50Hz	4.5KW /AC220V.50Hz
Overall dimension	480×460×850(mm)	520×520×980(mm)	560×560×980(mm)
Transport dimension	570×550×970(mm)	590×590×1110(mm)	650×630×1150(mm)
G.W/N.W	56Kg/ 42Kg	68Kg/ 50Kg	90Kg/70Kg

Model Technical data	LS-150LJ	LS-120LJ	LS-100LJ
Chamber volume	150L( φ510×740) mm	120L(φ480×660) mm	100L(φ440×650) mm
working pressure	0.22MPa
Working temperature	134℃
Max working pressure	0.23 Mpa
Heat average	≤±1℃
Timer scope	0～60min
Temperature scope	105～134℃
Power	6KW /AC220V.50Hz		4.5KW /AC220V.50Hz
Overall dimension	670×690×1130(mm)	600×640×1140(mm)	590×590×1080(mm)
Transport dimension	760×760×1270(mm)	730×730×1270(mm)	680×650×1220(mm)
G.W/N.W	135Kg/ 110Kg	125Kg/100Kg	105Kg/85Kg
