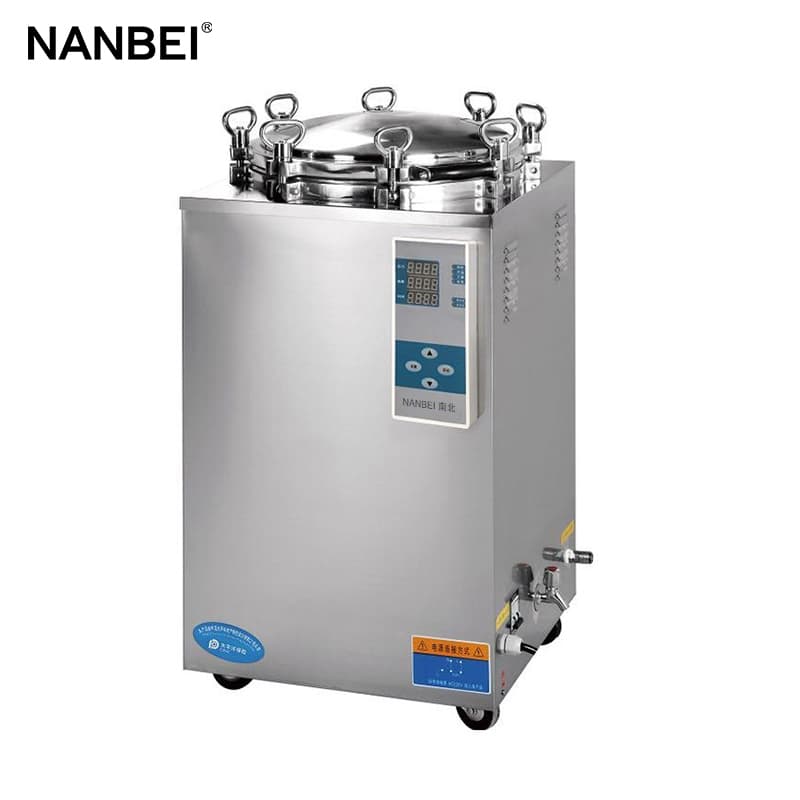

Vertical Pressure Steam Sterilizer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:LS-50LJ
Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Vertical pressure steam sterilizer
Characteristics:
1.Fully stainless steel structure
2.Indicator light indicates working state
3.Over temperature&over pressure auto-protection
4.Double scale indication pressure gauge
5.Safe protection of water lacking
6.Automatically shut off with beep reminding after sterilization
7.Easy to operate,safe and reliable
8.With two stainless steel sterilizing baskets
Technical Data：
Model Technical data | LS-35LJ | LS-50LJ | LS-75LJ |
Chamber volume | 35L(φ318×450) mm | 50L( φ340×550) mm | 75L(φ400×600) mm |
working pressure | 0.22MPa | ||
Working temperature | 134℃ | ||
Max working pressure | 0.23 Mpa | ||
Heat average | ≤±1℃ | ||
Timer scope | 0～60min | ||
Temperature scope | 105～134℃ | ||
Power | 2.5KW/AC220V.50Hz | 3KW /AC220V.50Hz | 4.5KW /AC220V.50Hz |
Overall dimension | 480×460×850(mm) | 520×520×980(mm) | 560×560×980(mm) |
Transport dimension | 570×550×970(mm) | 590×590×1110(mm) | 650×630×1150(mm) |
G.W/N.W | 56Kg/ 42Kg | 68Kg/ 50Kg | 90Kg/70Kg |
Model Technical data | LS-150LJ | LS-120LJ | LS-100LJ |
Chamber volume | 150L( φ510×740) mm | 120L(φ480×660) mm | 100L(φ440×650) mm |
working pressure | 0.22MPa | ||
Working temperature | 134℃ | ||
Max working pressure | 0.23 Mpa | ||
Heat average | ≤±1℃ | ||
Timer scope | 0～60min | ||
Temperature scope | 105～134℃ | ||
Power | 6KW /AC220V.50Hz | 4.5KW /AC220V.50Hz | |
Overall dimension | 670×690×1130(mm) | 600×640×1140(mm) | 590×590×1080(mm) |
Transport dimension | 760×760×1270(mm) | 730×730×1270(mm) | 680×650×1220(mm) |
G.W/N.W | 135Kg/ 110Kg | 125Kg/100Kg | 105Kg/85Kg |
