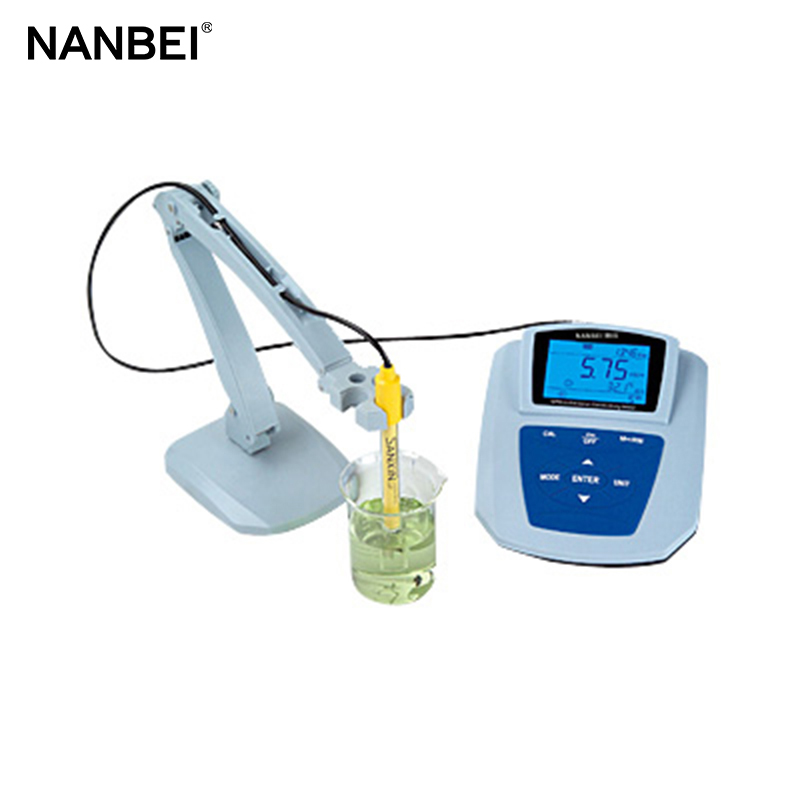

MP515 Precision Conductivity Meter
Introduction
| ● Equips Conductivity/ATC glass electrode. Its measurement result is fast and precise. Can choose 25℃, 20℃ and 18℃ three kinds of basis temperature. |
| ●Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc. |
| ● There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode. |
| ●Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of solutions: Europe & USA series and China series |
| ●Equips Conductivity/ATC electrode. Its measurement result is fast and precise. |
| ● Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration. |
| ● Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale. |
| ●Conductivity measurement mode has the function of non-linear temperature compensation for high purity water. |
| ● Meter has the only product serial number. |
| ● Dustproof and waterproof meter meets IP54 standards. |
| ● 0.5 rating precision conductivity meter, suitable for high precision conductivity measurement of science research and quality control. |
Specifications
Conductivity |
Measuring range
Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature | Conductivity：（0.00~20.00）μS/cm （20.0~200.0）μS/cm
（200~2000）μS/cm （2.00~20.00）mS/cm
（20.0~200.0）mS/cm （200~2000）mS/cm（K=10）
Resistivity：（0 ~ 100）MΩ·cm
TDS: （0 ~ 100）g/L
Salinity： （0 ~ 100）ppt
0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm
Meter:±0.5% FS,connect meter with electrode:±0.80% FS
（0 ~ 50）℃（automatic ）
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1
25℃、20℃ and 18℃ |
Temperature |
Measuring range
Resolution
Accuracy |
-10℃~ 110℃
0.1℃
5~ 60℃range：±0.4℃ other range：±0.8℃ |
Other Technical Parameters: |
Data storage
Storage content
Power
Communication connector
Size and weight
Quality and safety certification |
300 groups
Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC |
Working Condition |
Environment temperature
Environmental humidity
IP rating |
5 ~ 35 ℃（0.01grade） 15 ~ 30 ℃（0.001grade）
≤75%
IP54 Dustproof and waterproof |
Standard Kit Includes
| 1. Model MP515 lab conductivity meter | 1 unit |
| 2. Model 602 flexible electrode holder | 1pc |
| 3. 2401T-M plastic pH/ATC three-in-one combination electrode | 1 pc |
| 4. 1408μS/cm conductivity standard solution (50mL) | 2 bottles |
| 5. 9V power adapter | 1pc |
| 6. RS-232 communication cable | 1pc |
| 7. MP515 communication software CD | 1pc |
| 8. Operation manual | 1 unit |
| 9. Brief operation manual | 1 unit |
| 10. Packing List | 1 pc |
