Granular Ice Machine
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

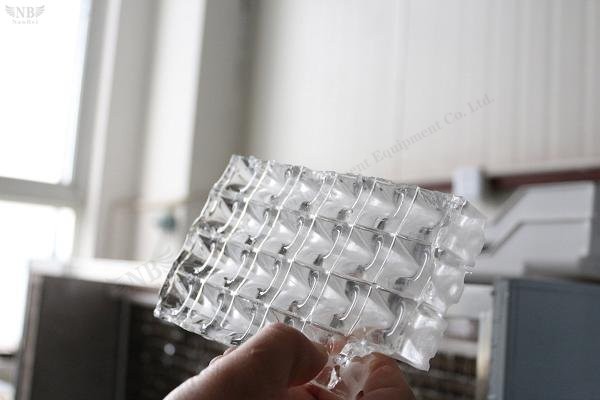

Edible granular ice machine is one type of ice making machines. Because the ice shape is the grain type, so it’s called granular ice. In the market it’s the smallest type of ice, melting resistance best . Suitable for drinking supplies modulation, decoration, food preservation and so on, so it is mostly the edible ice.
Edible granular ice machine throughout the hotel, bar, banquet hall, restaurants, fast food shops, convenience stores and other places need ice to cold drink , to satisfy every customer need granular ice. The granular ice is crystal clear, clean and sanitary; it is efficient, safety, energy saving and environmental protection, durable, so it’s your best choice of ice
Technical scheme：
NO. | Parameters | Technical data | |
1 | Model | NB2T-R2W | |
2 | Evaporating temp. | -10℃ | |
3 | Condenser temp | +40℃ | |
4 | Control system | PLC micro-computer control | |
5 | Voltage | 220V/3Phase/60Hz | |
6 | Cube ice weight density | 500~550kg/m3 | |
7 | Power consumption | 80KW~85KW/ton | |
8 | Measurement | Cube ice machine | Machine:1750mm x 1510mm x 2040mm |
Cube ice | 22mm x 22mm x 22mm or 29mm x 29mm x 22mm | ||
9 | Noise | 55dB | |
10 | Refrigerant | R22 | |
11 | Evaporating temp. | -15℃ | |
12 | Condenser temp | +40℃ | |
13 | Input water temp. | 28℃ | |
14 | Ambient temp. | 40℃ | |
15 | Compressor | Model | Frascold |
Brand name | Frascold | ||
Amount | 1 | ||
Type | Q7-33.1 | ||
Power | 16.78KW | ||
16 | Gear motor | 0.75KW | |
17 | Total Power of cooling fan | 0.55KW | |
18 | Cooling water pump | 2.2KW | |
19 | Power of circulating water pump | 0.75KW | |
