+2℃ to +8℃ Medical Refrigerator
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:NBC-5L126
Application:pharmacy refrigerators, suitable to store vaccines, medicines and laboratory products at 2℃ to 8℃ temperature range in pharmacies, pharmaceutical factories, hospitals, CDC, clinics, laboratories.

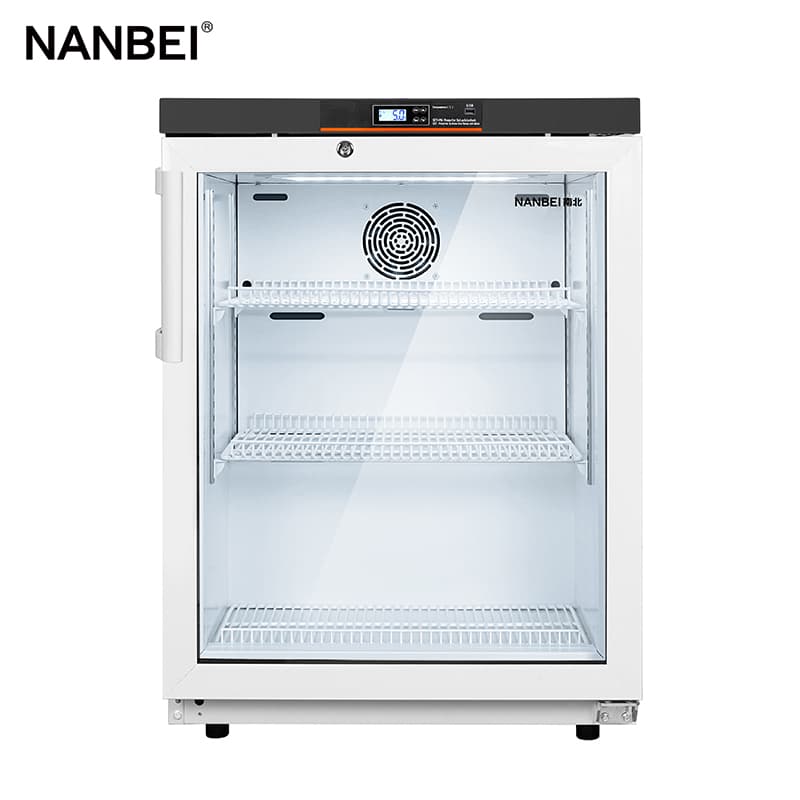

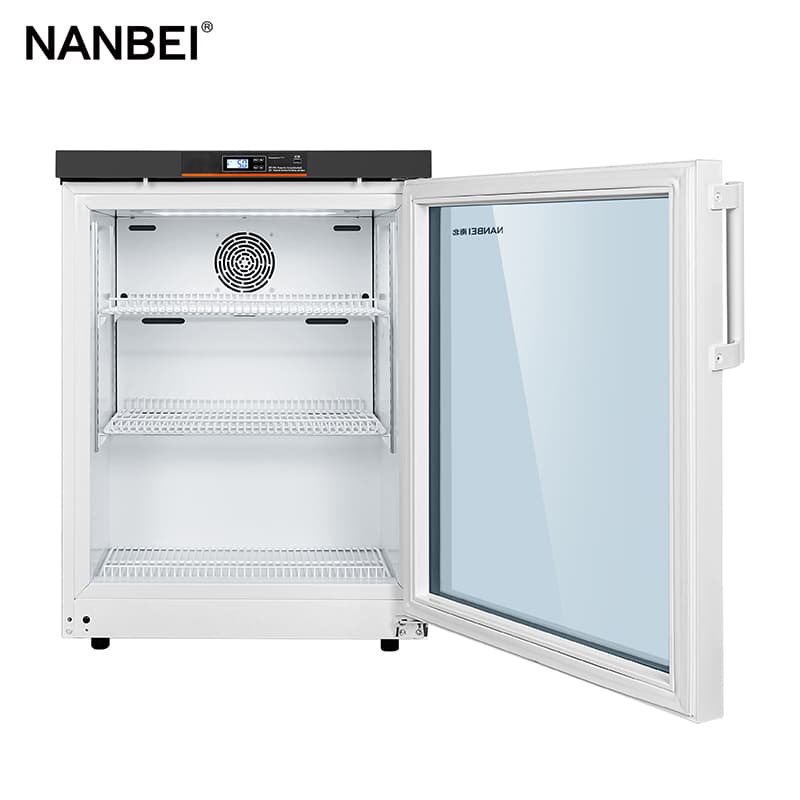

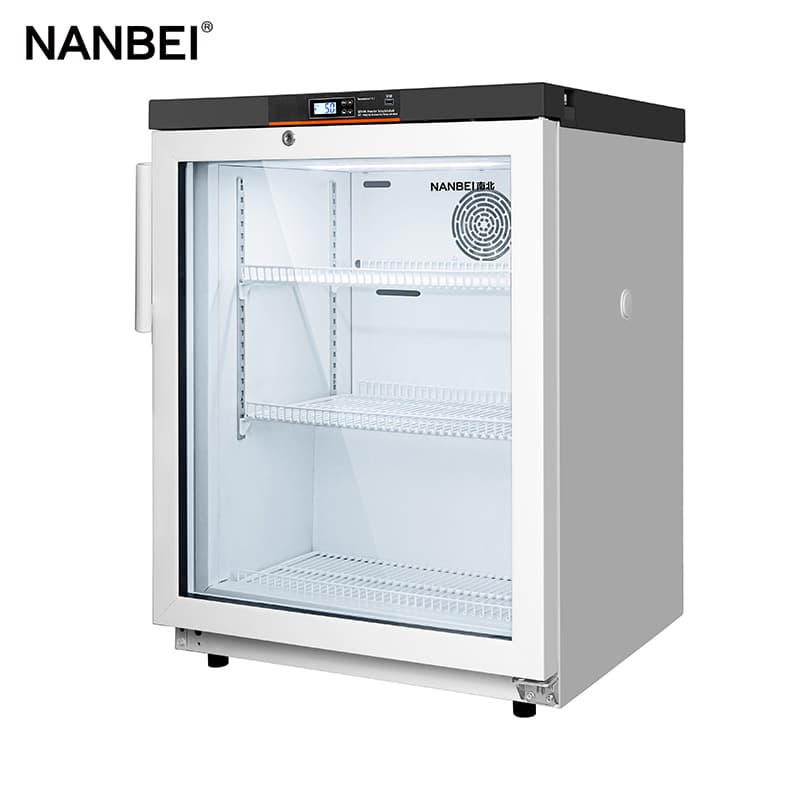

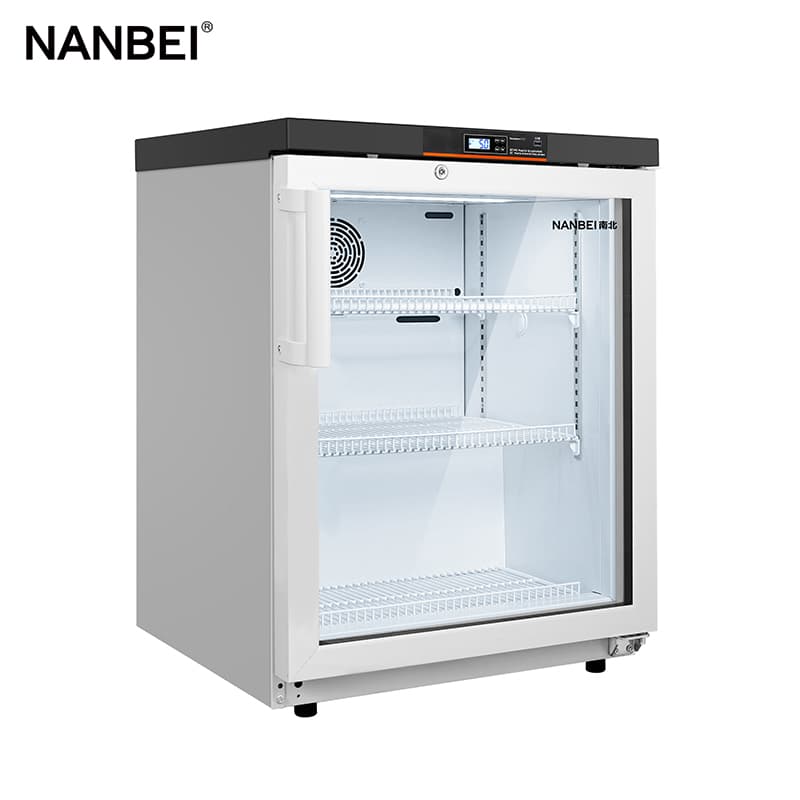

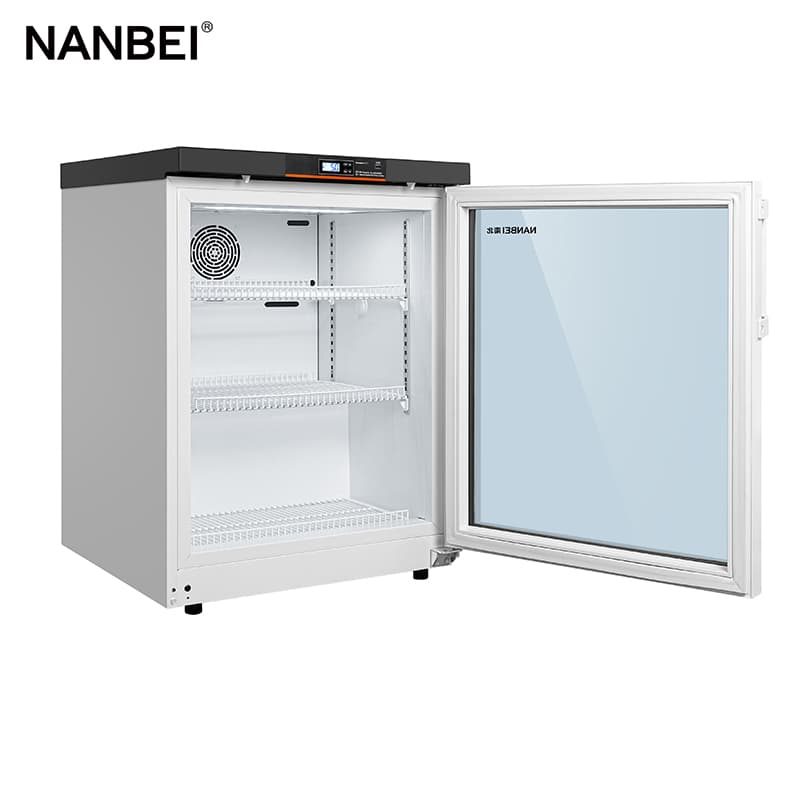

NBC-5L126 Pharmacy Refrigerator
Introduction
Safer Storage Superior Temp. uniformity& Precise control
●Microcomputer temperature control.
●Dual display, temperature & Humidity.
●Temperature accuracy 0.1℃
●Temperature variation ≤2℃.
●Temperature uniformity ± 1℃
●USB port, temp. record traceable.
●Backup battery.
●Audible & visual alarm systems.
Reliable & stable performance
●International brand compressor.
●Forming technology. Micro-channel condenser .
●D+ heat exchange technology,
●High efficiency. and energy saving.
Humanized Design Friendly for daily use
●Electric heating glass door.
●Door self-close.
●Adjustable shelves with label holder.
●Porthole.
●Adjustable LED light.
●Wide voltage range design.
Features
Safety & Temperature stability
●Microcomputer control, temperature accuracy 0.1℃.
●Digital display, adjustable temperature ranges 2℃~8℃; temperature variation ≤2℃.
●USB port, temperature data traceable; Perfect audible & visual alarm systems.
●High and low temperature alarm, power failure, sensor failure alarm, door open alarm etc. The alarm temperature can be set as required.
●Built-in battery , continuously showing the real-time chamber temperature after power off.
●Safety lock , door self-lock; Wide Voltage range design for unstable power supply areas.
Refrigeration System
●International brand compressor, energy saving, rapid cooling.
●High Efficient air flow design.
●DC Turbo Fan, High efficiency and energy saving, low noise and long service life.
●Forming Technology, better insulation, more energy-saving, higher space utilization rate.
●Micro-channel condenser-High-efficiency, Compressor overheating protection.
D+ heat exchange technology, high efficiency and energy saving.
CFC free, environment friendly.
Humanized Design
●Low-E glass door , effectively preventing condensation.

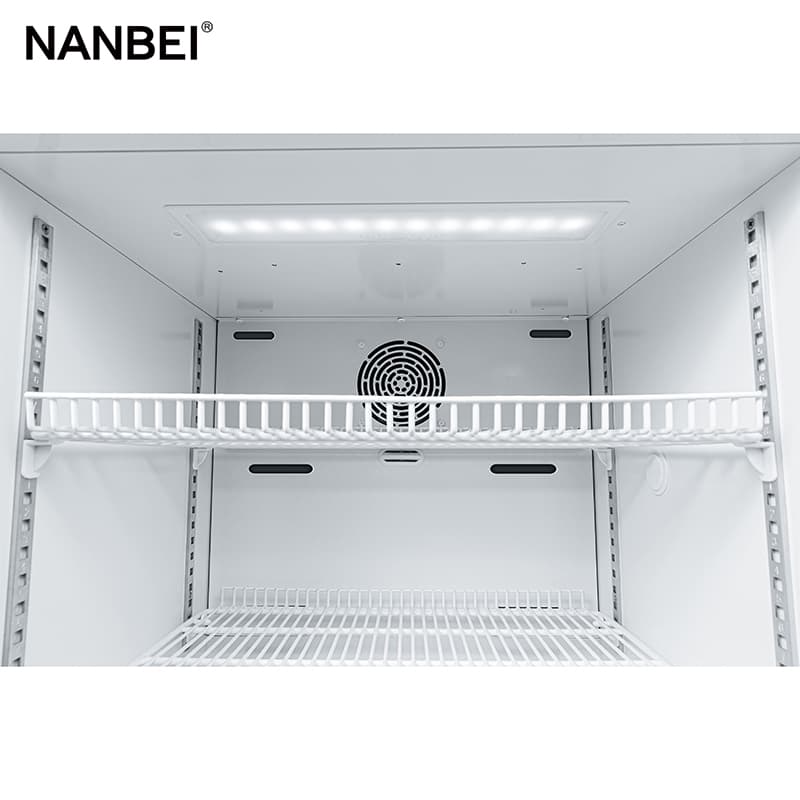

●Multi-layer shelves design, removable and with label card.
●Adjustable LED light.
 |  |  |
Specification
| NBC-5L126 | |
Storage Volume(L) | 126 |
Temperature Range(°C) | 2~8 |
Cabinet Type | Upright |
Door Type | Low-E Glass door |
Climate Class | N |
Cooling Type | Forced air cooling |
Defrost Mode | Auto |
Refrigerant | R600a |
External dimension (W*D*H mm) | 595*615*810 |
| Internal dimension (W*D*H mm) | 505*467*620 |
Model selection
Series | Under counter | 2nd Generation | 2nd Generation | 2nd Generation | 2nd Generation | |
Item | Model No. | NBC-5L126 | NBC-5L316 | NBC-5L416 | NBC-5L756 | NBC-5L1006 |
Dimensions | Load capacity (40HQ) | 48/162 | 71 | 47 | 38 | 21 |
Fridge Storage Volume(L) | 126 | 316 | 416 | 756 | 1006 | |
Product Dimensions (mm)(wxdxh) | 595*615*810 | 595*603*1920 | 690*653*1920 | 970*808*1920 | 1220*808*1920 | |
Interior Dimensions (mm)(wxdxh) | 505*467*620 | 500*464*1343 | 595*514*1343 | 880*634*1354 | 1130*634*1354 | |
Net/Gross Weight | 43/48 | 78/90 | 88/100 | 140/170 | 220/260 | |
Technical data | Cooling Type | Forced air cooling | Forced air cooling | Forced air cooling | Forced air cooling | Forced air cooling |
Defrost type | No frost | No frost | No frost | No frost | No frost | |
Climate Class | N | N | N | N | N | |
Refrigerant/Amount(g) | R600a/26g | R600/36g | R600/36g | R600a/48g | R600a/60g | |
Compressor type | Fixed frequency | Fixed frequency | Inverter | Inverter | Inverter | |
Sensor Qty | 3 | 6 | 6 | 6 | 6 | |
Product Performance | Temperature Range | 2 ～ 8℃ | 2 ～ 8℃ | 2 ～ 8℃ | 2 ～ 8℃ | 2 ～ 8℃ |
Temperature uniformity/°C | 2 | 2 | 2 | 3 | 3 | |
Temperature volatility/°C | 2 | 2 | 2 | 2 | 2 | |
Temperature Accuracy | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | |
Control | Controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | Microprocessor |
Display | LCD display | LED (Temperature&Humidity) | LED (Temperature&Humidity) | LED (Temperature&Humidity) | LED (Temperature&Humidity) | |
Electrical data | Rated Current(A) | 1 | 1.5 | 1.5 | 1.8 | 2.1 |
Rated Power(W) | 75 | 190 | 260 | 320 | 350 | |
Alarms | Power Failure Alarm | Y | Y | Y | Y | Y |
Sensor Failure Alarm | Y | Y | Y | Y | Y | |
Environment Temperature Alarm | N | Y | Y | Y | Y | |
Door ajar Alarm | Y | Y | Y | Y | Y | |
High Temperature Alarm | Y | Y | Y | Y | Y | |
Low Temperature Alarm | Y | Y | Y | Y | Y | |
Remote Alarm | Y | Optional | Optional | Optional | Optional | |
Accessories | Shelves/Drawers Qty | 2/1 | 5 | 5 | 10 | 10 |
Anti-condensation Door | LOW-E glass | Electrical heating | Electrical heating | Electrical heating | Electrical heating | |
Self-lock | Y | Y | Y | Y | Y | |
Label Card Holder | Optional | Y | Y | Y | Y | |
Cable Port | Y | Y | Y | Y | Y | |
Castors/type | N | 4/Omni-directional | 4/Omni-directional | 4/Omni-directional | 4/Omni-directional | |
USB | Optional | Y | Y | Y | Y | |
RS-485 Port | N | Y | Y | Y | Y | |
Printer | N | Optional | Optional | Optional | Optional | |
Backup Battery | Y | Y | Y | Y | Y | |
Backup Battery endurance | 24h | 24h | 24h | 24h | 24h |
