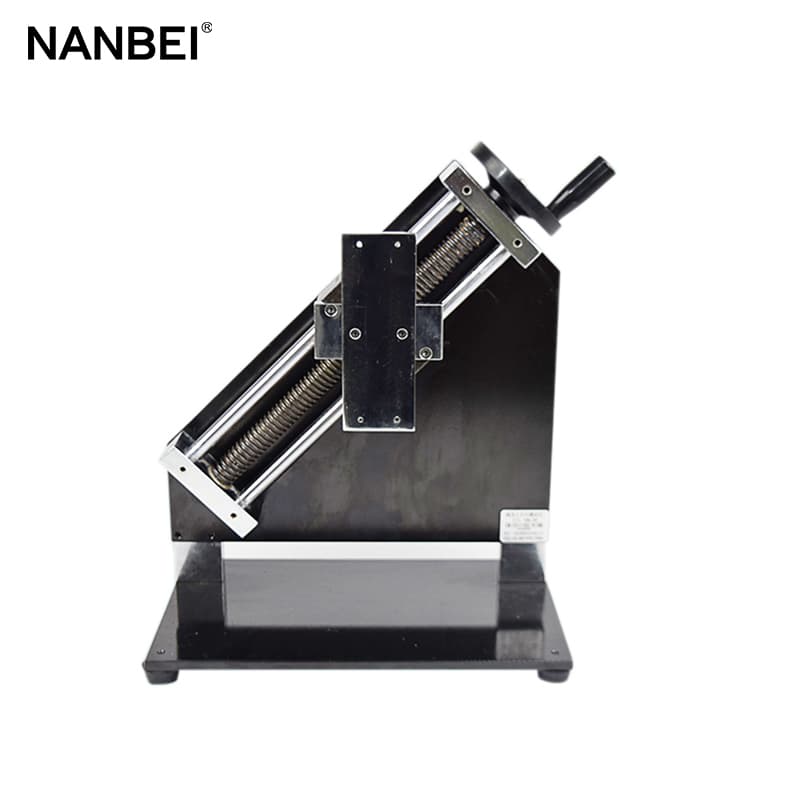

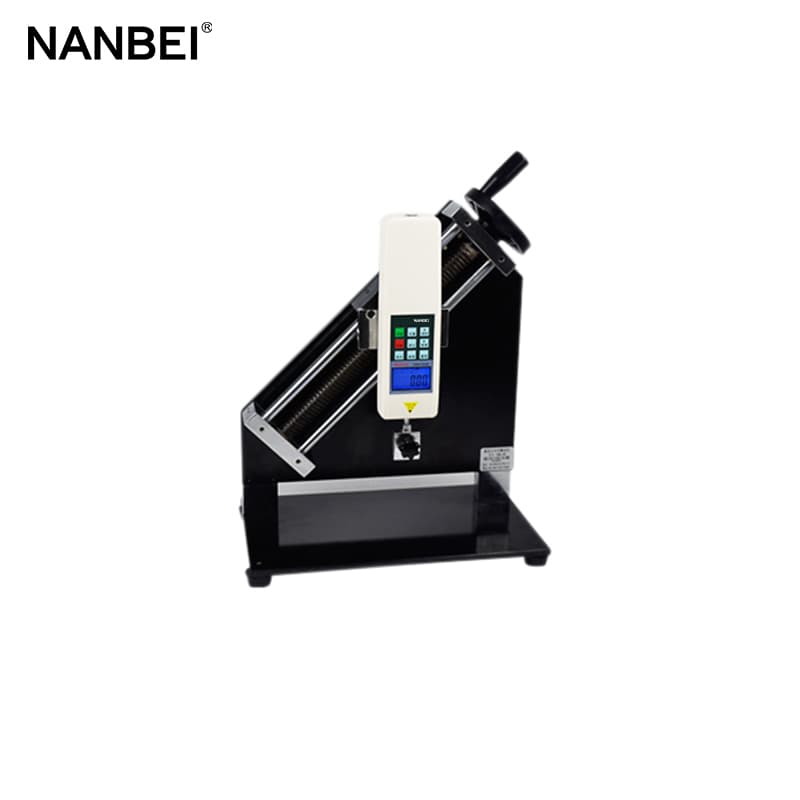

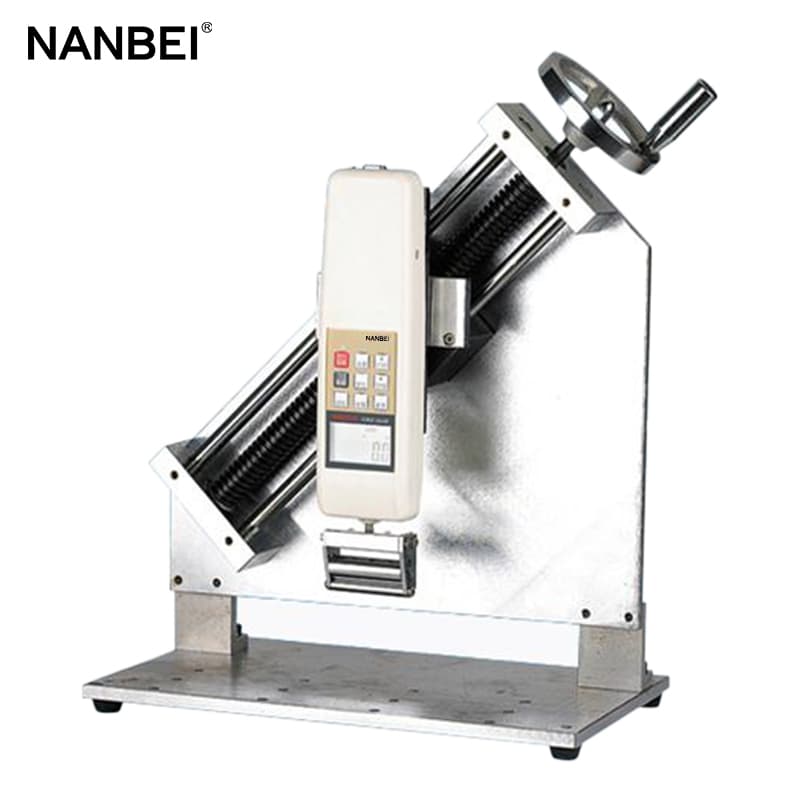

ABL Peel-off Force Test Stand

ABL_03 左上第一张 抠出 白底800800.jpg

Function

ABL Peel-off Force Test Stand is specially designed for NK, HF series Push pull equipment,

can be combined into the test machine with different uses.

Specially used in PC board on foil circuit adhesion force or Tin foil, aluminum foil, tape etc.

Hit the object surface firmness.

In view of vertical dissect the test sample. To measure the actual strength.

ABL_01 白底 800800.jpg

Feature

1:Manual operation, ladder type screw transmission, simple and stable operation.

2:This frame can be installed in table face, to make the test stand more stable.

Structure scheme
electric test stand  force load test platform



Other product we can supply as follows:

AEV Electric Double Column
Vertical Test Stand
ASC Side Shake Screw
Test Stand

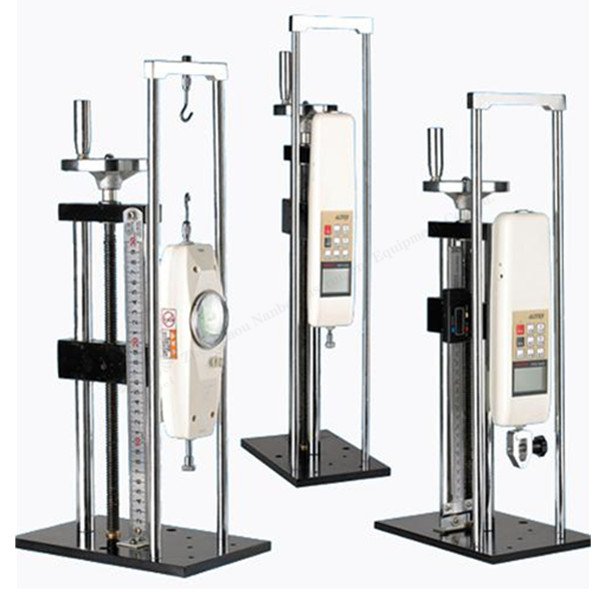

ASL Manual Vertical
