Dispersion Machine

Dispersion machine is widely used for liquid-liquid,solid-liquid chemical material dispersion and

mixing,strong cut,disolution,paint,new material,dye,printing ink,pigment,cementing compound,resin,

milk,auxiliaries,emulsion,pesticide,daily use chemical etc.

Product introduction :

Hydraulic lifting and descending high speed disperion machine,suitable for pre-dispersion and

mixing uniform during  producing.It has compact size,little volume,little moving inertia,fast response

time,easy to operate. Transducer can be realized large range stepless speed adjustment,automatic

over-load protection. hydraulic oil work as media for hydraulic system,relative movement can be

auto lubricate,with long work life,easy to realize rectilinear motion and machine full automatic,stable

and accurate,can be frequency lifting;Full sealling hydraulic system complete resolve the hydraulic

oil leakage problem. Can be customized sealled and explosion proof type dispersion machine.

The equipment can disper,mix for various viscosity products. Little air absorption when dispering,

sample can be dispered and disoluted very fast,partical diminution,no dead angle for mixing,easy to

clear,process range is wide,frequency speed adjustment,rotation speed digital display,running stability,

little noise,can be work long time contineously.

Work theory：

Sample in annular flow through dispersion disk high speed rotation,produce strong vortex,drop

to bottom of vortex at heliciform status.Particals will strike and grind strongly,then reach to fast

dispersion,dissolution,uniform mixed function.

Drive hydraulic machine lifting through control oil pump work,hydraulic machine drive the whole

set transmission mechanism and working group lifting.

Note:

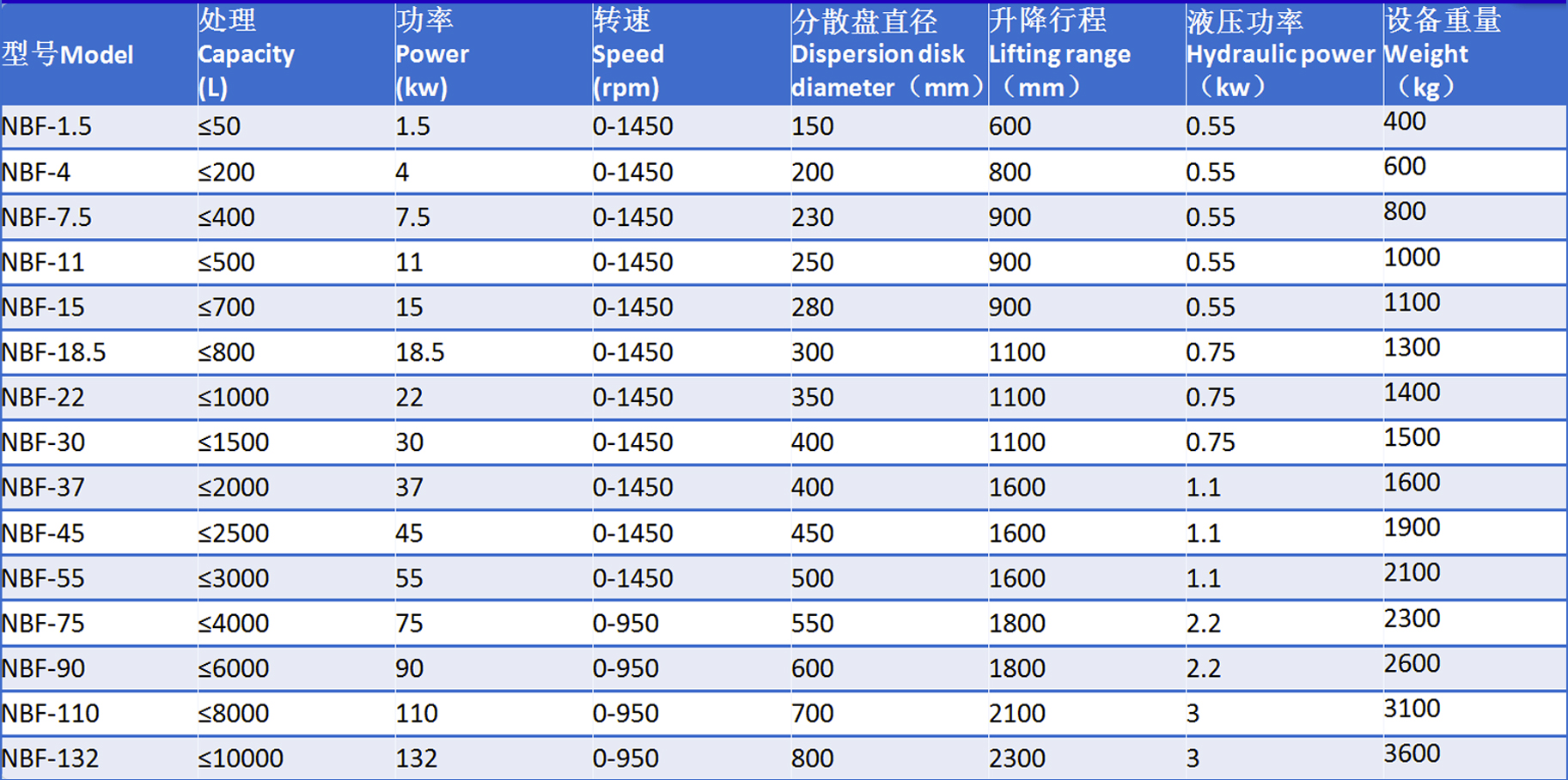

*  Datum in the table which work as water media,when you choose,should according to product

    viscosity,solid and liquid ratio etc parameters to calculate.

*  If there is high temperature,high pressure,imflamable,、explosive,corrosivity work environment,

    must supply detail parameters to help to customize.

* For details,please contact with our engineer.

Configuration list :

Voltage ：380V，50Hz  Can be customized

Material which connect with sample ：SS304   SS316L

Holding clip method：Belt holding clip,   Hand holding clip,  Pneumatic holding clip

Mixer shaft ：Single shaft,Double shaft

Cylinder score：Optional

Lid：Simple lid,Fixed lid,lifting lid

Sealing：Forcing   Vacuum extraction

Envrionment ：Explosive proof, explosive

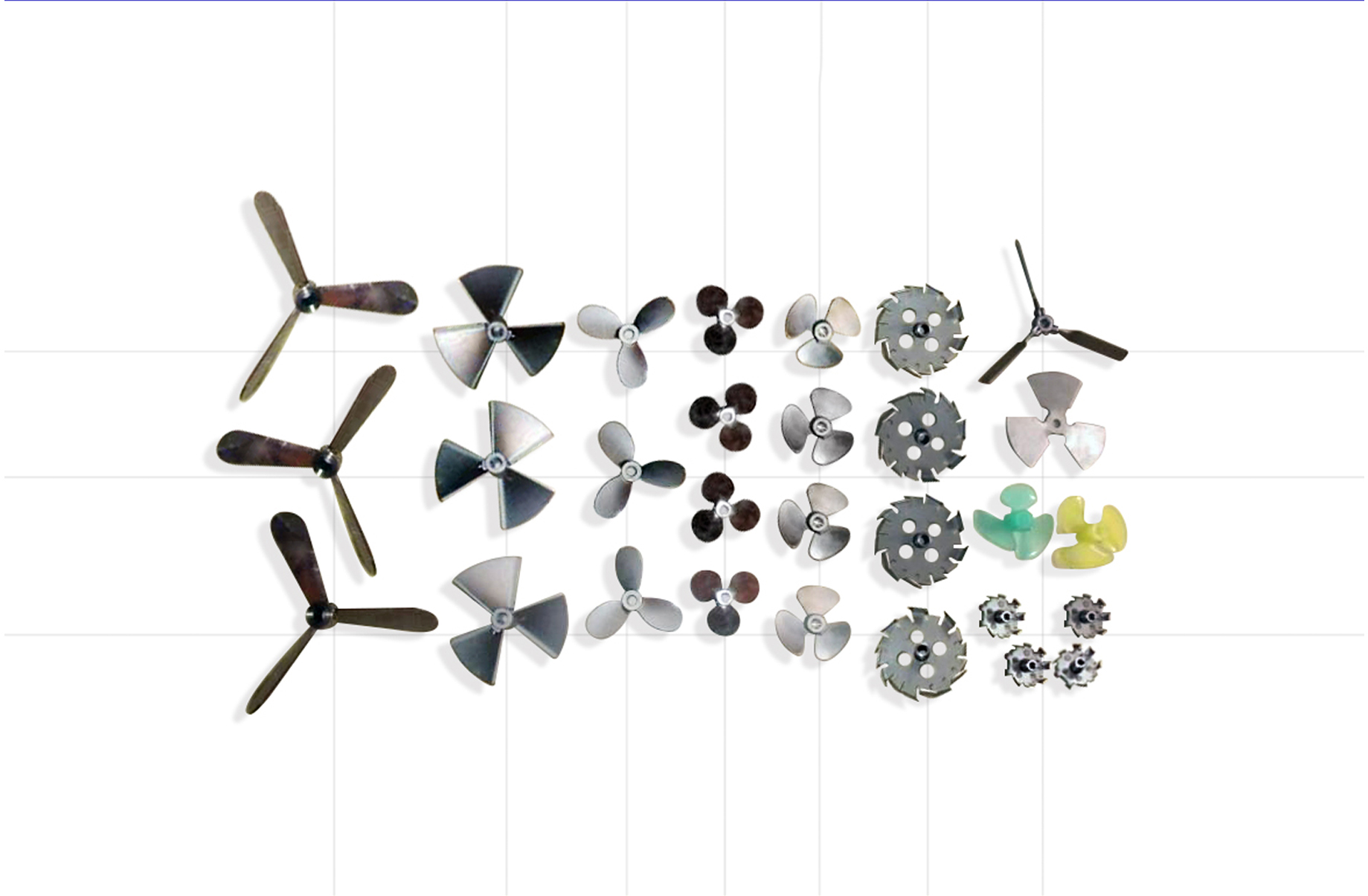

Dispersion knife head optional ：
