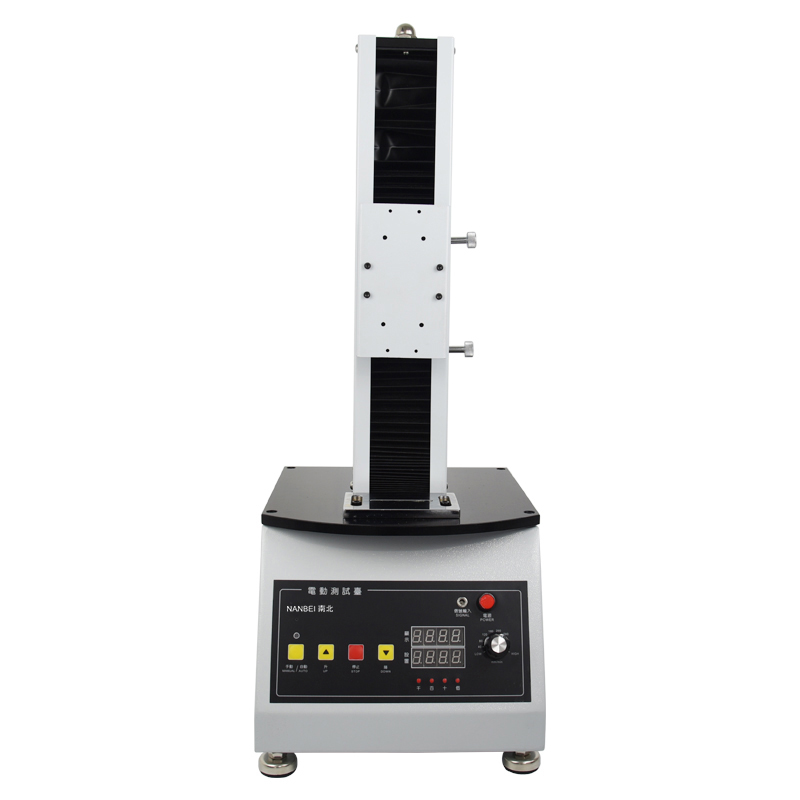

AEL Electric Single Column Vertical Test Stand

AEL Electric Single Column Vertical Test Stand

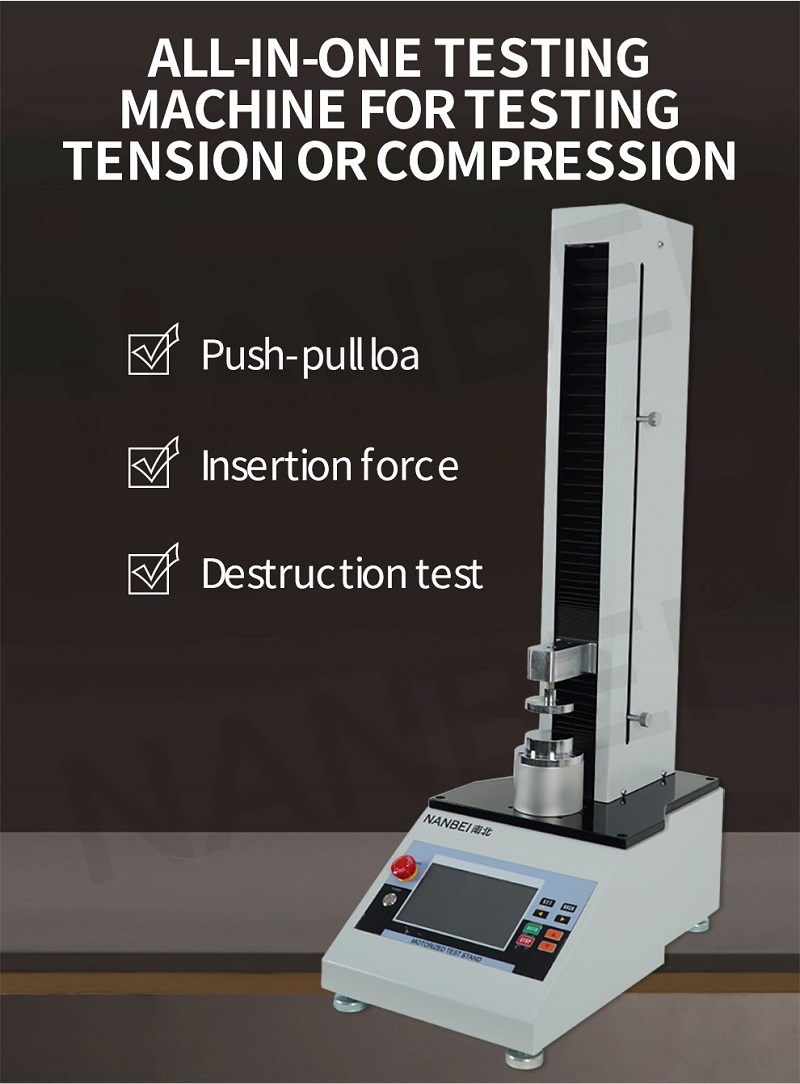

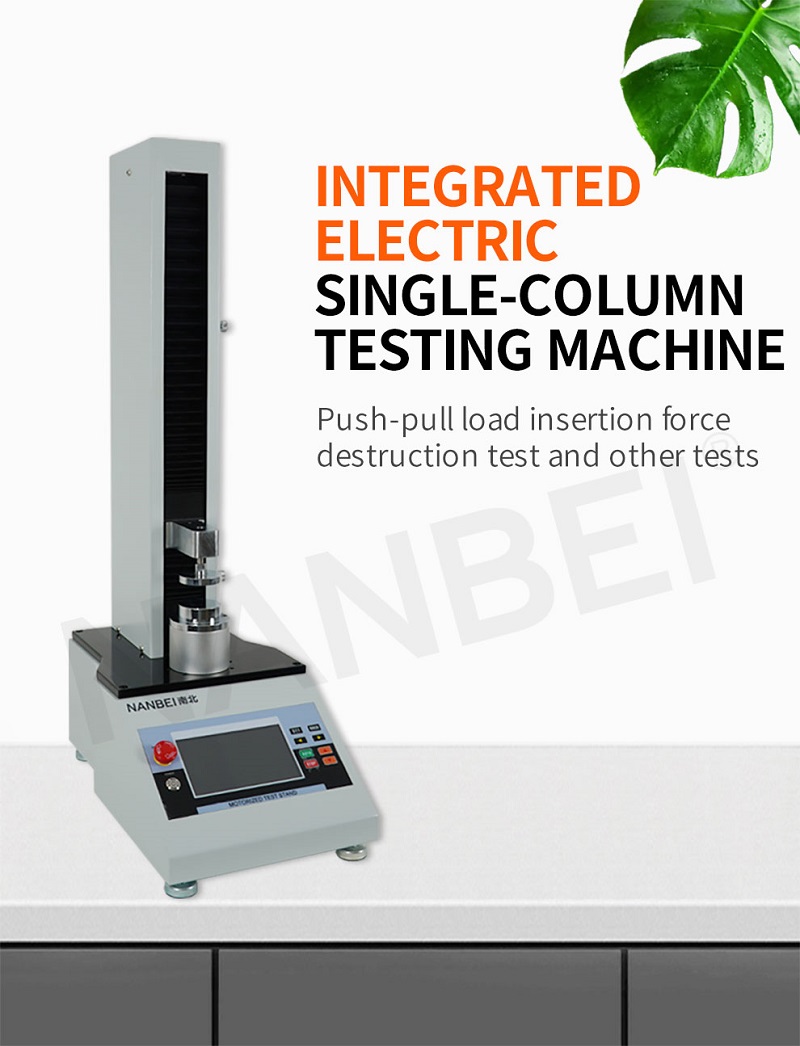

AEL Single Column Vertical Machine is force load test platform specially matched for HF and NK series force measurement gauge.

The product is double vertical rod structure, featuring good stability, wide applicable scope and convenience, as well as step less speed regulation, manual (point) and automatic control switching functions.

Applicable for tests of force load, Insertion and withdrawal, destruction in such industries as rubber and plastic, light industry-textile, constructional door and window, composite materials, electric wire and cable, parts and accessories for automobile, power machinery, scientific research institutes, etc.

Features

1:Electric load, step less speed regulation, gear drive

2:Compact structure, stable drive

3:Simple operation, able to be used with various kinds of clips

Specifications and Parameters

1: Maximum load: 500N

2: Effective travel: 200mm

3: Test speed:15~240 or 60-500 mm/min(choose by customer)

4: Working voltage: 110-220V

5: Outline dimension: 400x320x620mm

6: Net weight: 30-40kg

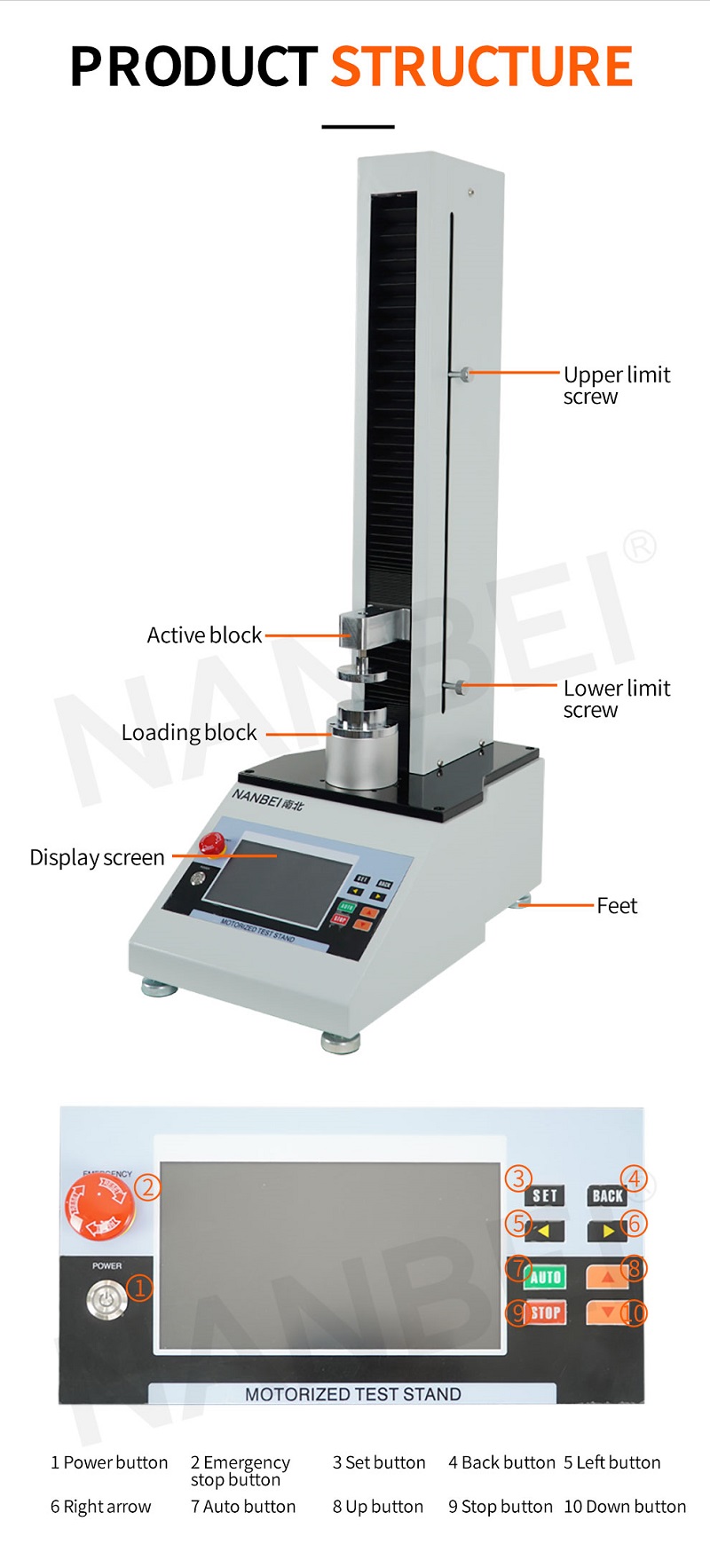

Sketch Diagram of Structure

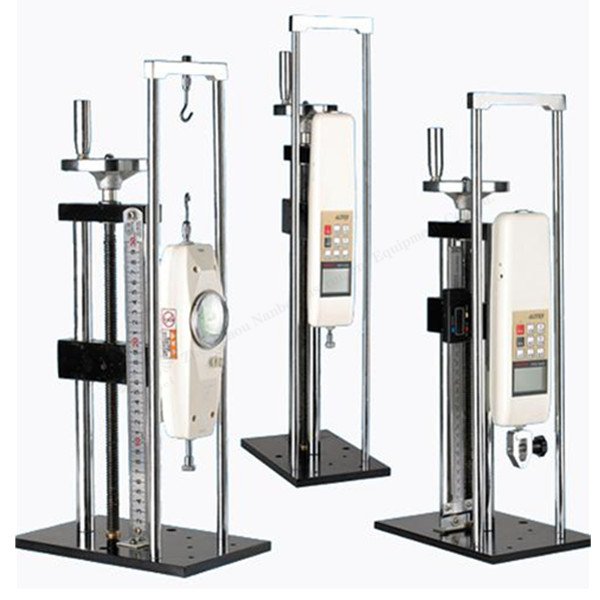

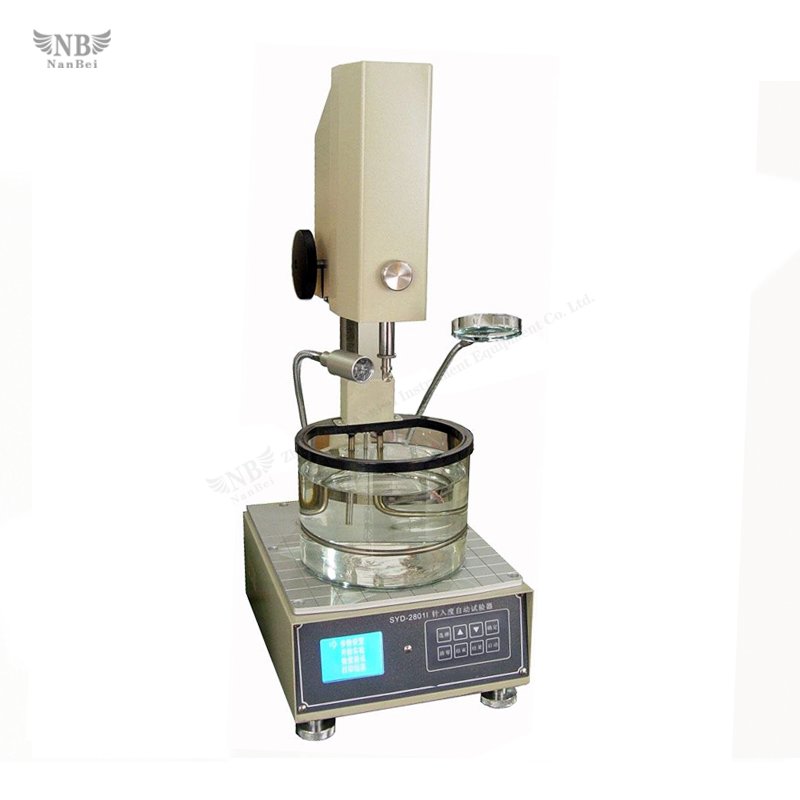

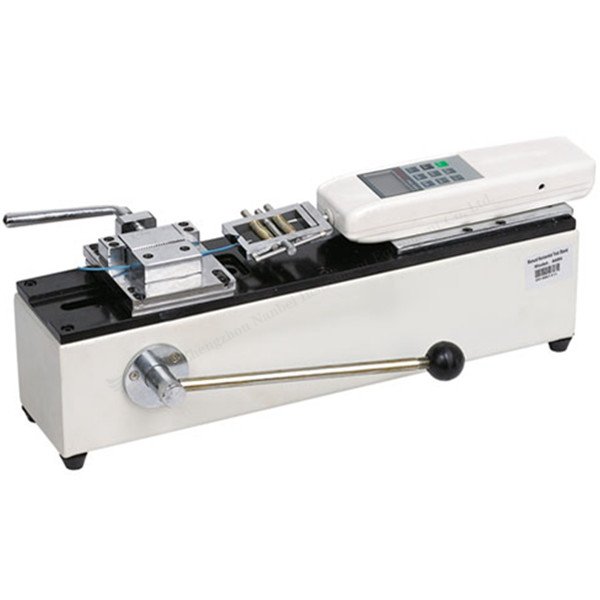

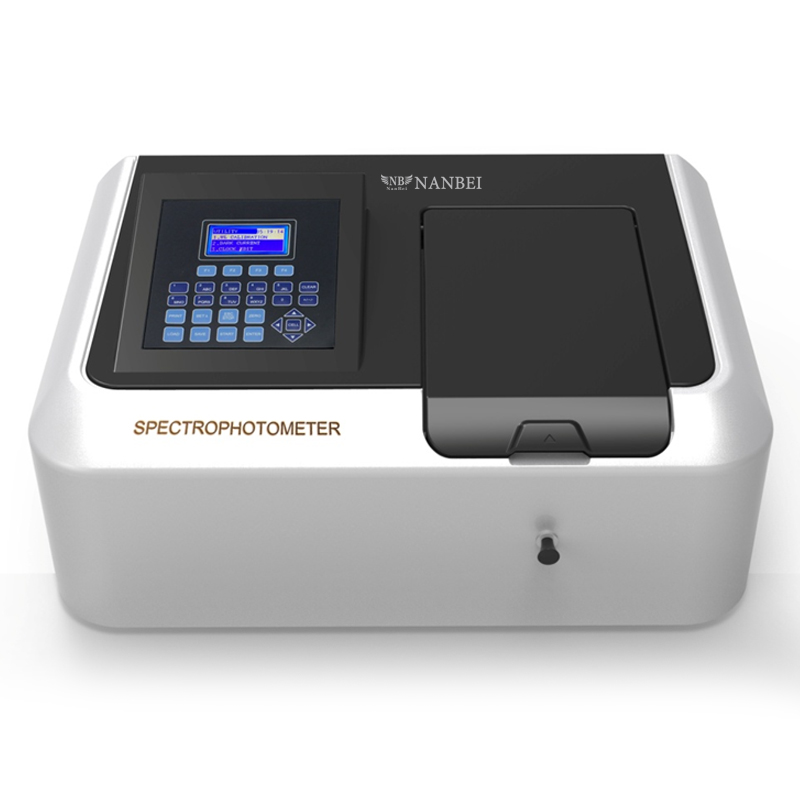

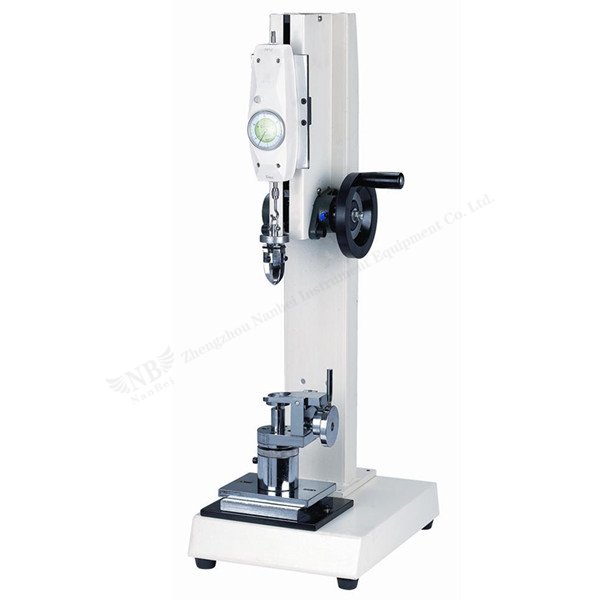

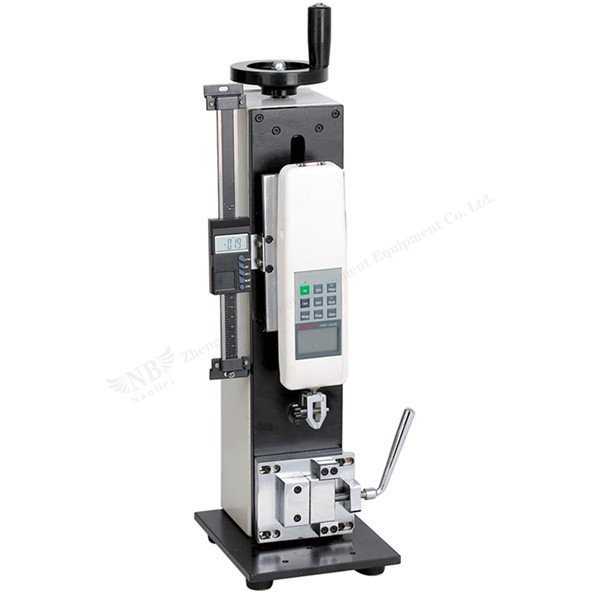

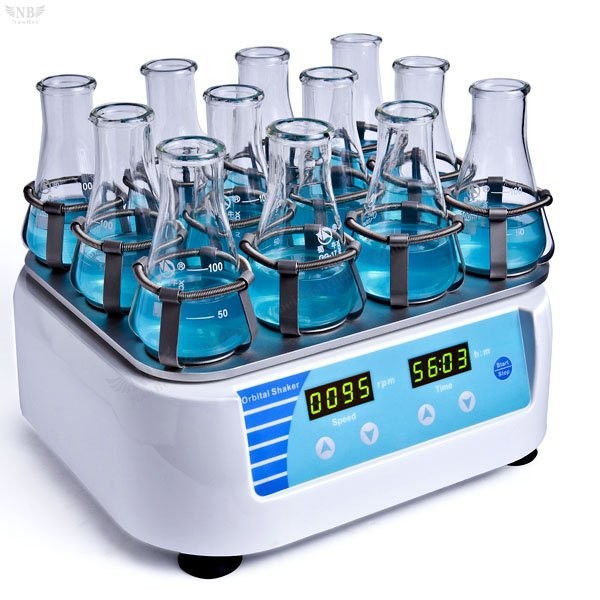

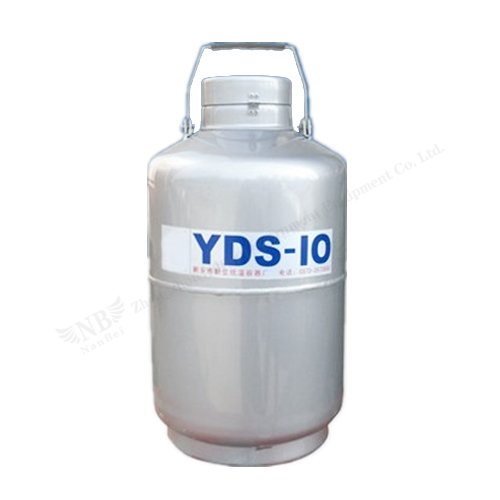

Other product we can supply as follows:

Please feel free contact us if you have any question about our product. Thanks.
